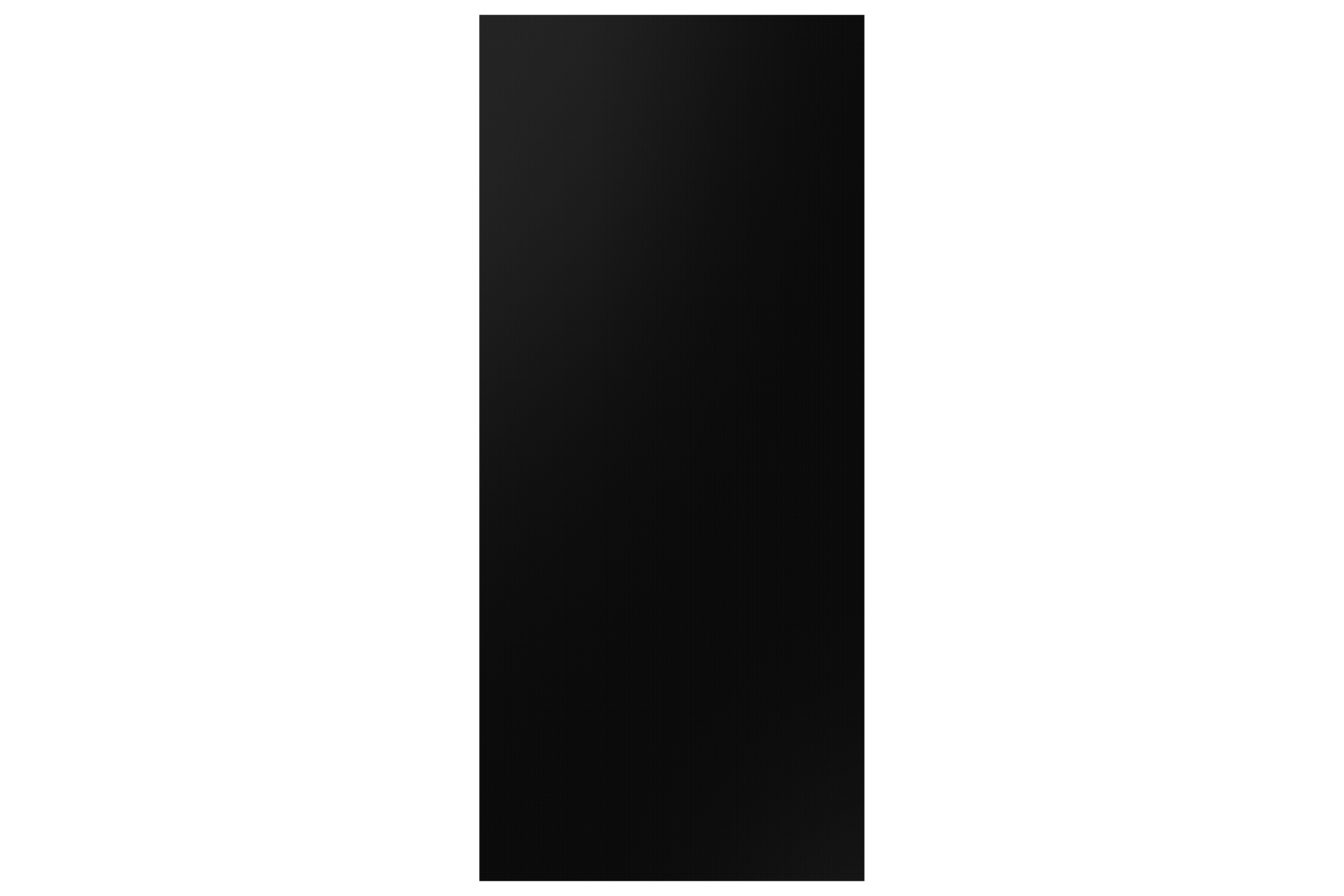

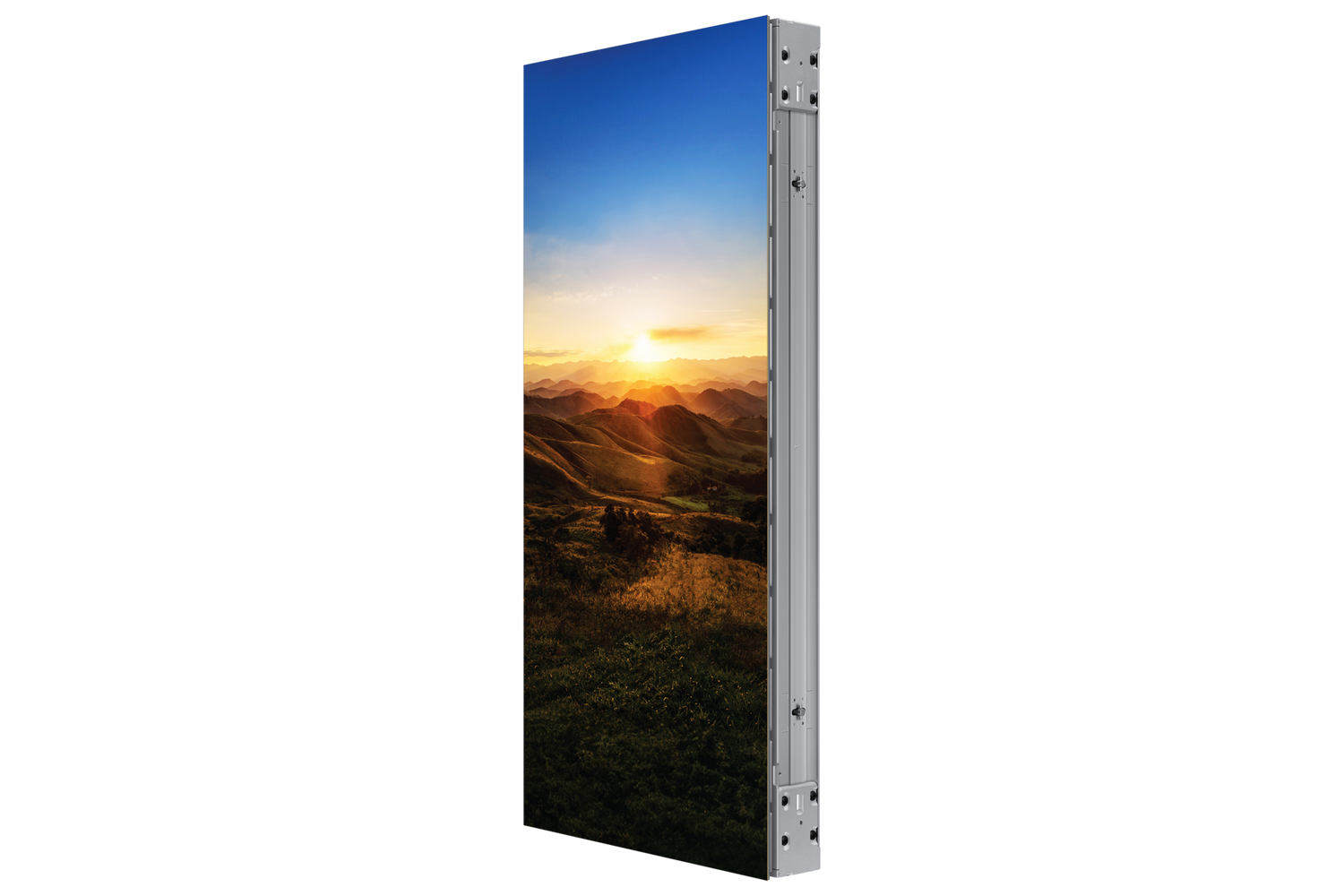

Samsung The Wall Indoor Premium LED P1.6 – Virtual Production

Product Overview

The Samsung The Wall Indoor Premium LED P1.6 for Virtual Production (IW016A-V) is a 1.6mm pixel pitch LED cabinet specifically engineered to meet the demanding requirements of virtual production environments, including LED volume stages, in-camera VFX (ICVFX) sets, and extended reality (XR) studios. This panel addresses the unique optical characteristics required for camera-facing LED walls, including precise color calibration, controlled refresh rate behavior, and optimized moire reduction. Cinematographers, broadcast engineers, and virtual production AV integrators will find the IW016A-V purpose-built for the LED volume application.

Product Description

Virtual production LED walls impose requirements that differ significantly from standard commercial display applications. The IW016A-V is tuned for in-camera performance, meaning its specifications address not only what human eyes perceive but what digital cinema cameras capture. Key considerations include refresh rate compatibility with camera shutter speeds to eliminate banding artifacts, color accuracy across the full gamut required for realistic background rendering, and luminance uniformity that reads consistently across the camera sensor.

At 1.6mm pixel pitch, the IW016A-V provides a pixel density suited for LED volumes where talent and cameras operate at distances of 3 to 6 meters from the screen surface. This pitch is commonly used for background walls and ceiling elements in virtual production stages, where fine detail is needed without reaching the cost premium of sub-1mm panels.

Cabinets tile with precision mechanical alignment to construct LED volumes of any required dimension, from small XR studio walls to large-scale virtual production stages. Factory calibration ensures color and brightness uniformity critical to consistent in-camera output, reducing the need for post-production color correction caused by display inconsistencies.

The panel integrates with professional virtual production signal processing workflows, including LED processors compatible with real-time rendering engines such as Unreal Engine. Compatibility with broadcast-grade video infrastructure and timecode synchronization systems supports integration into full virtual production pipelines.

Key Features

• 1.6mm Pixel Pitch — Appropriate for LED volume backgrounds and ceiling elements at talent-to-wall distances of 3 to 6 meters.
• Virtual Production Optimized — Tuned for in-camera performance, including refresh rate compatibility and moire reduction for digital cinema cameras.
• Precision Color Calibration — Factory-calibrated for consistent color and luminance uniformity critical to ICVFX workflows.
• Seamless Cabinet Tiling — Precision mechanical alignment supports LED volume walls of any dimension.
• Real-Time Rendering Engine Compatibility — Integrates with LED processors used in Unreal Engine and other virtual production pipelines.
• Front Serviceability — Module access from the front face supports maintenance during production cycles.

Typical Applications

• Virtual Production LED Volume Stages
• In-Camera VFX (ICVFX) Sets
• Extended Reality (XR) and Mixed Reality Studios
• Broadcast Studio LED Backgrounds
• Film and Television Production Facilities
• Corporate Video Production Studios

Technical Specifications

Frequently Asked Questions

What makes the IW016A-V different from a standard P1.6 LED cabinet for virtual production?

The IW016A-V is specifically tuned for in-camera performance. Standard LED cabinets are optimized for human viewing. Virtual production panels must also consider how digital cinema cameras capture the display, including refresh rate compatibility to avoid banding, color accuracy for ICVFX color grading workflows, and luminance uniformity that reads consistently across a camera sensor rather than just to the human eye.

What rendering engines is the IW016A-V compatible with?

The IW016A-V integrates with LED processors used in virtual production workflows built on Unreal Engine and other real-time rendering environments. Confirm specific processor and workflow compatibility with your virtual production integration partner during system design.

What pixel pitch should I specify for a virtual production LED volume?

Pixel pitch selection for an LED volume depends on the camera-to-wall distance and the lens focal lengths in use. The IW016A-V at 1.6mm is appropriate for distances of approximately 3 to 6 meters. For closer camera positions or longer focal lengths where the screen fills more of the frame, finer pitches such as P1.2 or P0.8 may be specified. A virtual production AV consultant can assist with pixel pitch selection based on your specific production parameters.
