Samsung The Wall All-in-One 146" 2K Full HD HDR Commercial Monitor

Product Overview

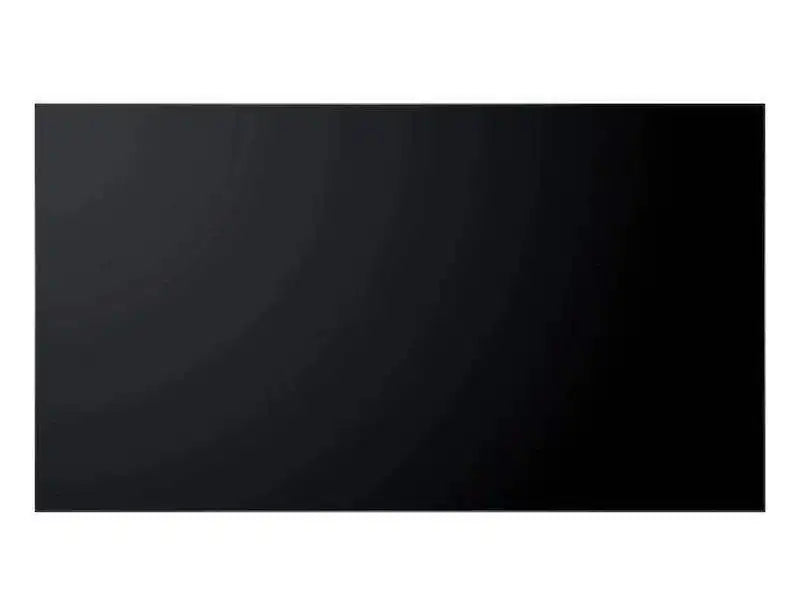

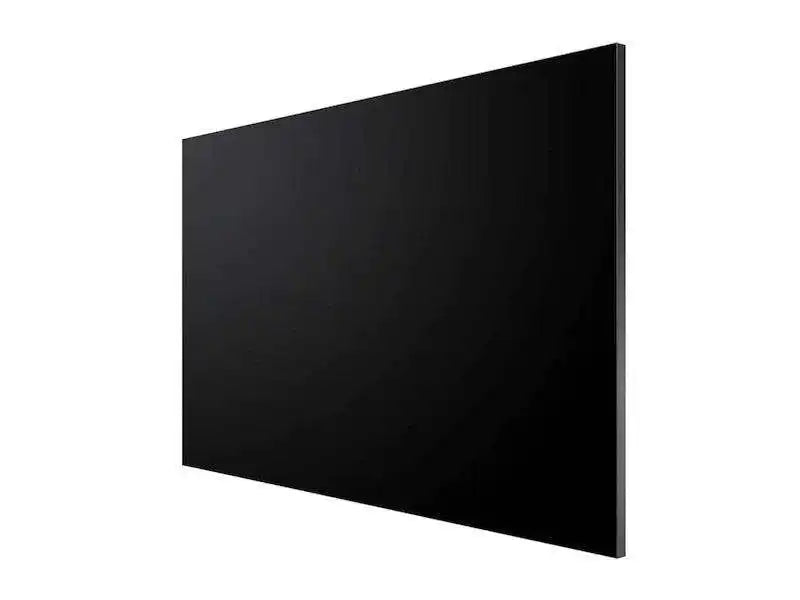

The Samsung The Wall All-in-One (IAB 146 2K) is a 146" Full HD direct-view LED display engineered as a preassembled, turnkey video wall for boardrooms, command centers, and corporate signage. With a 1.68mm pixel pitch and a built-in control box, this all-in-one LED display removes the pixel-pitch and configuration complexity of traditional dvLED video walls. The non-WiFi, non-Bluetooth configuration supports data-secure environments where wireless connectivity must be restricted. Black Seal and Ultra Chroma technologies deliver deep blacks and accurate color for a high-impact 16:9 canvas.

Product Description

The Wall All-in-One simplifies LED video wall deployment by combining the LED panels, control box, mounting brackets, speakers, and deco bezels into a single package selected by size and resolution. As shown in the product imagery, the 146" 16:9 surface delivers a native 1920 x 1080 image driven by a Neural Quantum Processor with 20-bit internal processing for precise color mapping and smooth low-grayscale tonal transitions. Black Seal Technology produces uniform, deep black levels for high contrast, while Ultra Chroma Technology uses narrower wavelengths for purer RGB color reproduction. MICRO HDR support, including HDR10/10+ and LED HDR, refines peak brightness and contrast on a per-scene basis. The integrated control box runs Tizen and supports auto configuration setup, reducing installation to a matter of hours for AV integrators. Connectivity includes DisplayPort 1.2, HDMI 1.4, RS-232C serial control, IR input, and 10/100 Ethernet, with two built-in 10W speakers. The non-WiFi, non-Bluetooth design suits government, finance, and other security-sensitive deployments. Explore the full lineup on our Samsung collection.

Key Features

• Preassembled All-in-One Design — The control box, mounting brackets, speakers, and deco bezels ship together, reducing installation to as little as a few hours.
• P1.68 Direct-View LED — A 1.68mm pixel pitch delivers a continuous, bezel-free 146" image suited to boardrooms and signage walls.
• Full HD 16:9 Canvas — The native 1920 x 1080 resolution provides a familiar 16:9 format for presentations, video conferencing, and broadcast content.
• Black Seal Technology — Uniform, deep black levels increase perceived contrast and detail across the display surface.
• Ultra Chroma Technology — Narrower LED wavelengths reproduce purer, more accurate RGB color for vivid, true-to-life imagery.
• Neural Quantum Processor with 20-Bit Processing — AI-driven processing analyzes and optimizes content for accurate color mapping and smooth grayscale.
• MICRO HDR Support — HDR10/10+ and LED HDR refine peak brightness and contrast per scene for precise, high-impact visuals.
• Built-In Control Box and Tizen — The integrated control box runs Tizen with auto configuration setup, eliminating external media-player complexity.
• Non-WiFi, Non-Bluetooth Option — The wireless-free configuration supports data-secure environments in government and finance.
• Integrated Audio — Two built-in 10W speakers provide a 2-channel sound system without external amplification.

Typical Applications

• Boardrooms and executive briefing centers
• Government and command-and-control spaces
• Corporate lobbies and commercial meeting spaces
• Auditoriums and all-hands rooms
• Multi-purpose rooms and training rooms

Technical Specifications

Competitor Comparison

Frequently Asked Questions

Does this display require an external controller or media player?

No. The Wall All-in-One has a built-in control box running Tizen with auto configuration setup, so it operates without a separate processor or media player.

Is it suitable for secure, wireless-restricted environments?

Yes. This configuration is non-WiFi and non-Bluetooth, making it appropriate for government, finance, and other environments where wireless connectivity must be restricted.

What inputs and control interfaces are available?

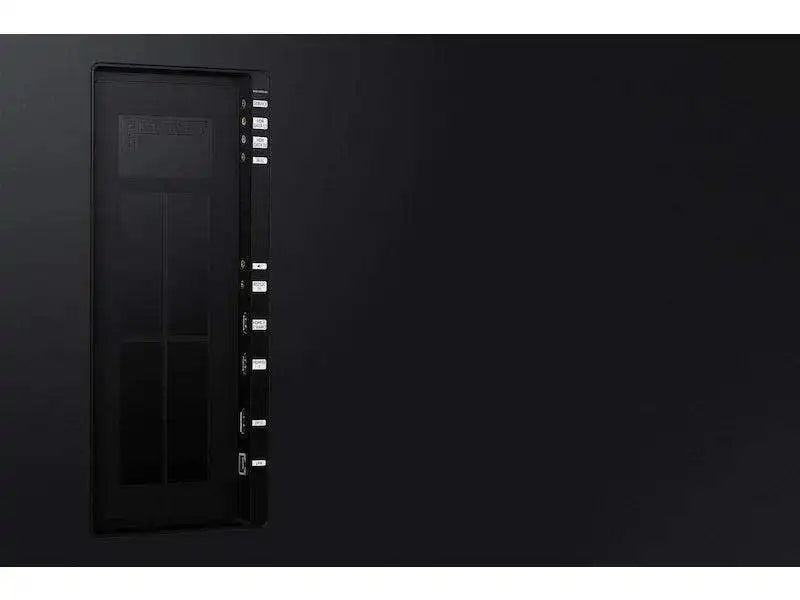

The display provides one DisplayPort 1.2 and three HDMI 1.4 inputs, plus RS-232C serial control, IR input, and a 10/100 Ethernet port for AV system integration.

How long does installation take?

Because the panels, control box, brackets, speakers, and deco bezels ship together as a preassembled kit, installation can be completed in as little as a few hours depending on site conditions.

What resolution and aspect ratio does it use?

It is a native 1920 x 1080 (Full HD) display in a 16:9 aspect ratio, well suited to presentations, video conferencing, and signage content.

What support is available for integration?

The display integrates through standard HDMI, DisplayPort, RS-232C, and Ethernet control. Contact our team through creationnetworks.net for integration and warranty support.
