Samsung The Wall 219” LED Vidoe Wall Bundle (1.2MM) (TAA-Compliant*) - F-IW012AP219
Samsung The Wall 219” LED Vidoe Wall Bundle (1.2MM) (TAA-Compliant*) - F-IW012AP219 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Samsung The Wall 219” LED Vidoe Wall Bundle (1.2MM) (TAA-Compliant*...
Product Overview

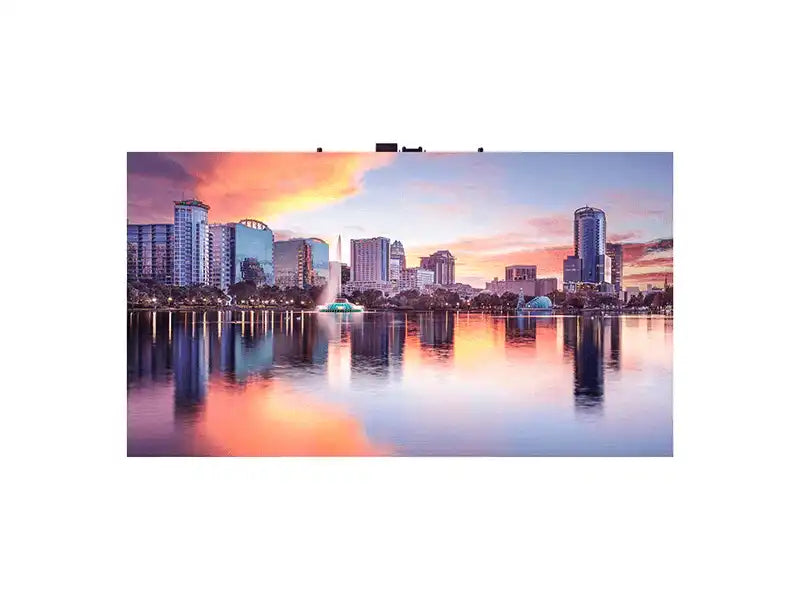

The Samsung The Wall IWA (P1.2) 219" LED video wall bundle is a TAA-compliant, fine pixel pitch direct-view LED display built for premium corporate lobbies, broadcast studios, and high-end command centers. With a 1.26mm pixel pitch in a 6x6 cabinet configuration delivering native 3840 x 2160 resolution, this dvLED video wall produces UHD imagery with HDR10+ picture refinement. The all-in-one bundle ships with the UHD S-Box, frame and power kits, and spare LED panels to simplify commercial deployment. Front-serviceable cabinets and a fanless design make it a dependable choice for AV integrators specifying an indoor LED video wall.
Product Description
The Wall IWA Series pairs Samsung's video processing with High Dynamic Range picture refinement to render detail-rich, shine-free content across low-grayscale and high-brightness indoor scenes. As shown in the product imagery, the 36 bezel-free Flip-Chip cabinets tile into a continuous 219" diagonal, 4K canvas suited to broadcast studios, galleries, executive briefing centers, and large meeting spaces. Black Seal and Ultra Chroma technologies deepen blacks and broaden color expression, while each cabinet is factory-calibrated for sub-pixel uniformity and supports DSLR camera-driven on-site calibration without radiant cameras or external software. The included UHD S-Box transmits content across the array without external splitters, and MagicINFO streamlines content scheduling and remote management. Front access to the T-Con and power supply enables flush, catwalk-free installation, while a fanless design with advanced temperature and ventilation management supports long, uninterrupted operation. Built-in signal and power redundancy maintain content through internal faults, and the TAA-compliant configuration supports U.S. federal and government procurement. The bundle includes a power cable kit, frame kit, side decoration kit, magnetic jig, and three spare LED panels, backed by a 5-year manufacturer warranty. Explore the full lineup on our Samsung collection.
Key Features
- P1.26 MicroLED Pixel Pitch — The 1.26mm fine pixel pitch resolves crisp 4K detail at the close viewing distances typical of lobbies and studio backdrops.
- Native 4K UHD Resolution — The 6x6 array of 36 cabinets delivers a true 3840 x 2160 canvas without scaling artifacts.
- HDR10+ Picture Refinement — Integrated HDR adaptation optimizes gradation per scene and drives peak brightness above standard LED maximums for added depth.
- Black Seal and Ultra Chroma Technology — These picture enhancements deepen black levels and broaden color reproduction for richer, more accurate content.
- 11,520 Hz Refresh Rate — A high refresh rate produces flicker-free capture for broadcast studio and virtual production use.
- Factory and On-Site Calibration — Each cabinet ships factory-calibrated, with DSLR camera-based on-site calibration for fast field tuning.
- Front and Rear Serviceability — Front access to the T-Con and power supply enables flush installation without catwalk space, while rear access speeds maintenance.
- Signal and Power Redundancy — Backup signal transmission and a secondary power unit keep content running through internal errors.
- Complete Bundle — Includes the UHD S-Box, power and frame kits, side decoration kit, magnetic jig, and three spare LED panels for a turnkey installation.
- TAA-Compliant Configuration — Supplied TAA-compliant to support U.S. federal and government procurement requirements.
Typical Applications
- Broadcast studio backdrops and virtual production stages
- Corporate lobbies and executive briefing centers
- Auditoriums and all-hands rooms
- Government and command-and-control spaces
- Large commercial meeting and multi-purpose rooms
Technical Specifications
| Specification | Detail |
|---|---|
| Series | Samsung The Wall IWA (IW012A) |
| Pixel Pitch | 1.26 mm |
| Configuration | 6 x 6 (36 cabinets) |
| Resolution | 3840 x 2160 (4K UHD) |
| Display Diagonal | 219 in |
| LED Diode Type | Flip-chip RGB LED |
| Peak Brightness | 1,600 nit |
| Contrast Ratio | 24,000 : 1 |
| Refresh Rate | 11,520 Hz |
| HDR Format | HDR10+ |
| Picture Enhancements | Black Seal Technology, Ultra Chroma Technology |
| IP Rating | IP20 |
| LED Lifetime | 150,000 hours |
| Cabinet Dimensions (W x H x D) | 806.4 x 453.6 x 36.5 mm |
| Voltage | AC 100-240 V |
| Warranty | 5-year manufacturer warranty |
| Compliance | TAA-Compliant |
Competitor Comparison
| Criteria | Samsung The Wall IWA (IW012A) | LG LSAB (Magnit) | Planar TVF1.2 |
|---|---|---|---|
| Pixel Pitch | 1.26mm fine pitch tuned for close-range UHD viewing | Sub-1mm options on the higher-end Magnit line at higher cost | 1.2mm pitch in the same fine-pitch class |
| Native Resolution | 3840 x 2160 in the supplied 6x6 array | Resolution depends on cabinet count and configuration | Resolution depends on configured wall size |
| LED Technology | Flip-chip RGB MicroLED with HDR10+, Black Seal and Ultra Chroma | MicroLED on the premium Magnit line | SMD and flip-chip LED across the TVF family |
| Refresh Rate | 11,520 Hz for flicker-free broadcast capture | High refresh available on broadcast-grade models | High refresh on broadcast-oriented configurations |
| Content Distribution | Included UHD S-Box distributes content without external splitters | Requires external processor/controller | Requires external video processor |
| Serviceability | Front access to T-Con and power supply plus rear access | Front-serviceable cabinet design | Front-serviceable modular design |
| TAA Compliance | This bundle is supplied TAA-compliant for government procurement | TAA status varies by configuration | TAA status varies by configuration |
Frequently Asked Questions
What resolution does this video wall produce?
The supplied 6x6 array of 36 Flip-Chip cabinets delivers a native 3840 x 2160 (4K UHD) image across the full 219" diagonal.
Is this bundle TAA-compliant for government procurement?
Yes. The F-IW012AP219 configuration of The Wall IWA is supplied as TAA-compliant, supporting U.S. federal, government, and public-sector procurement.
What is included in the bundle?
The bundle includes the UHD S-Box, a power cable kit, frame kit, side decoration kit, magnetic installation jig, and three spare LED panels, providing a turnkey installation package.
What controller is required to drive the display?
The included UHD S-Box transmits content across the cabinet array without external splitters, and content is managed through Samsung MagicINFO.
How is the wall serviced after installation?
The T-Con and power supply are front-accessible at the cabinet level for flush, catwalk-free installation, while rear access supports quick-turn maintenance. The fanless design reduces moving parts.
What warranty applies to this product?
This configuration carries a 5-year manufacturer warranty. Contact our team through creationnetworks.net for warranty terms and integration support.
