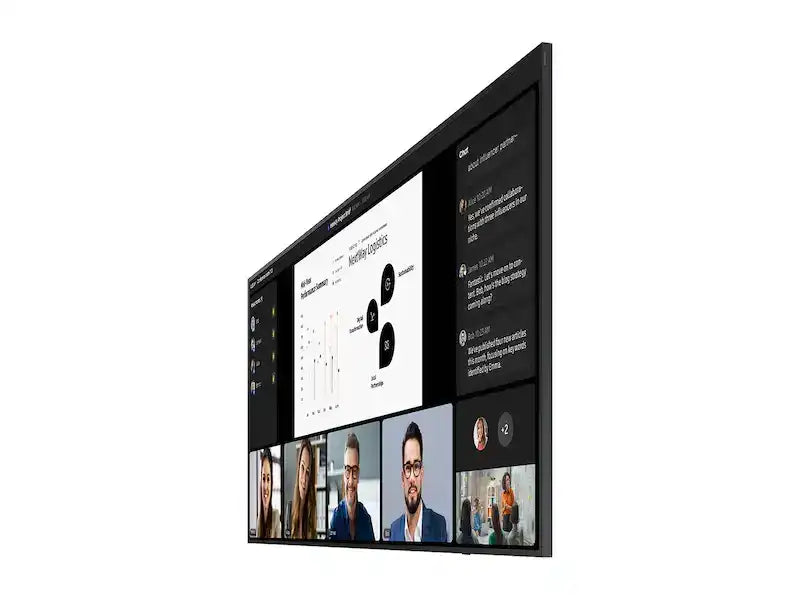

Samsung QP105DX-5K QPDX-5K Series 105" 21:9 Ultra-Wide Screen

Take your meetings to the next level with the 105-inch supersized display. Its expansive, ultra-wide screen eliminates the need for multiple displays, offering a seamless, uninterrupted view without the distracting borders between screens.

For Business

• Samsung's QPDX-5K Series takes business to the next level with a 105-inch supersized display.
• The 21:9 aspect ratio of the Ultra-Wide screen is optimized for a video conference layout, and provides an immersive meeting environment whether in-person or remote.
• SMARTVIEW+ enables wireless screen-sharing and supports up to 10 screens at once for seamless collaboration.

See it all in one view with an expansive display

21:9 Ultra-Wide Screen

The QPDX-5K’s 21:9 aspect ratio is designed for today’s modern meeting spaces and optimized for a video conference layout. Whether attendees are in-person or remote, the display ensures equal engagement, providing a truly immersive meeting environment that fosters collaboration.

Display detailed information with 5K Resolution

5K Resolution

Experience enhanced collaboration with ultra-clear 5K resolution, delivering sharper images and finer details. A wide viewing angle ensures every participant enjoys clear, vivid visuals, so no one misses a detail, regardless of their viewing position.*

Maximum impact in minimum space

Slim Depth

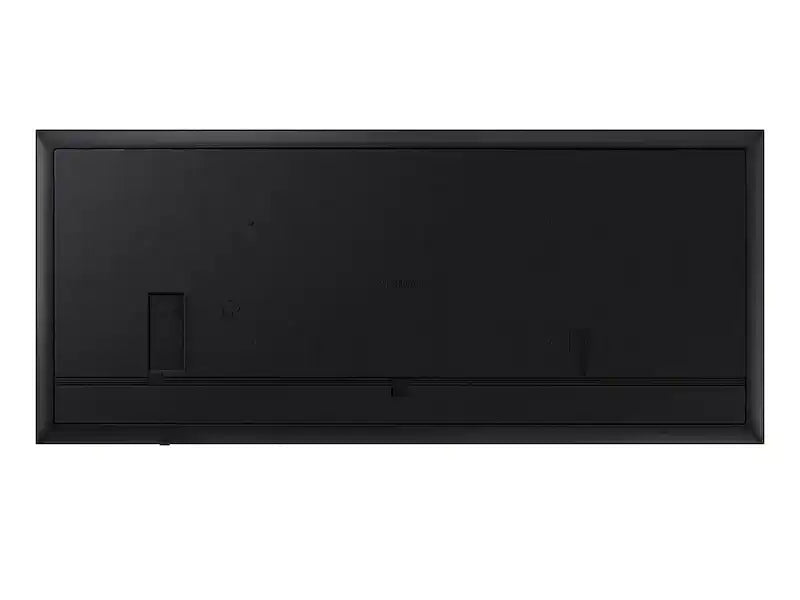

Elevate your workspace with a sleek design that maximizes both performance and space. At just 48.1mm in depth, this 105-inch display is the slimmest in its class. Outward-facing ports enable easy flush wall mounting, making it ideal for meeting rooms that require both elegance and efficiency.

Specs

• Display

  Brightness (Typical)

  500 nit

• Power

  Power Supply

  AC 100 - 240 V, 50/60 Hz

  Power Consumption (Sleep Mode)

  less than 0.5W

  Max[W/h]

  550

  Typical[W/h]

  203

• Features

  Key

  5K Signage with MagicInfo S10, SSSP 10.0, VXT Ready

  H/W

  2nd Gen. B2B Design Center IR Temperature Sensor Ambient Sensor Auto Level Wi-Fi(2.4/5.0GHz dual) & BT Local Dimming USB Type-C Port OPS Support

  S/W

  Signage New Home Workspace (Microsoft365/RDP) Custom Home Auto Source Switching & Recovery Dicom Simulation Mode Director Mode SMARTVIEW+ Upgradable Web-Engine Tizen Enterprise Platform Smart Calibration HDR support TEP Support VXT support

• Internal Player

  Processor

  CA76 Quad cores

  Operating System

  Tizen 8.0

  Storage (FDM)

  16GB

• Weight

  Package Weight

  172

  Set Weight

  122.6

• Accessories

  Included in Box

  Quick Setup Guide, Warranty Card, Power Cord RS232C(IN) Gender Remote Controller & Batteries

• Mechanical Specs

  VESA Mount

  1000 x 400

  Bezel Width (mm)

  14.8 (Even)

• Operation Conditions

  Temperature

  0℃~ 40℃

  Humidity

  10~80%

  Relative Humidity

  10~80%

• Mechanical Specification

  Set Dimension (in)

  97.7 x 42.1 x 1.89

  Package Dimension (in)

  105.0 x 46.8 x 10.8

  Set Weight (lb)

  122.6

  Package Weight (lb)

  172

  VESA Mount Screw (Min~Max)

  M8, 16~18mm

• Certification and Compliance

  IP Rating

  IP5x

• Display Panel

  Measured

  104.6

  Class

  105

  Resolution

  5120x2160 (21:9)

  Orientation

  Landscape / Portrait

  Haze

  25%

  Contrast Ratio (Typ)

  4000:1

  Active Display Area

  2449.92(H)×1033.56(V)

  Color Gamut

  NTSC 72%

  Operation Hour

  24/7

  Type

  VA

  Pixel Pitch (inch)

  0.019 x 0.019

• Connectivity / Sounds

  Video

  HDMI 2.1 (3), DP 1.4(1), USB-C, OPS

  USB

  Type-A(2), Type-C(1)

  Audio

  Stereo mini Jack

  WiFi / BT

  O / O

  External Control

  RS232C(in), RJ45(in)

  Speaker

  10W x 4

• Design

  Bezel Color

  Slate Black

• Certification

  Safety

  60950-1 / 62368-1

  EMC

  Class A

  Environment

  ENERGY STAR 8.0, EPEAT Bronze

  Security

  802.1x(WPA2 Enterprise) : EAP-TLS, EAP-TTLS, EAP-PEAP WPA3-Personal
