Samsung QM43B-T Series 43" Class 4K UHD Commercial Monitor

Product Overview

The Samsung QM43B-T is a 43-inch 4K UHD interactive touch commercial display engineered for retail, wayfinding, and meeting-space deployments that need responsive on-screen interaction. This 43-inch interactive touch signage display combines capacitive multi-touch, a built-in Tizen 6.5 media player, and a 24/7 duty cycle for reliable commercial operation. AV integrators specifying touch digital signage for high-traffic environments gain a non-glare panel, 500-nit brightness, and portrait or landscape mounting. RS-232C and IP control plus MagicINFO support simplify content management and commercial AV integration.

Product Description

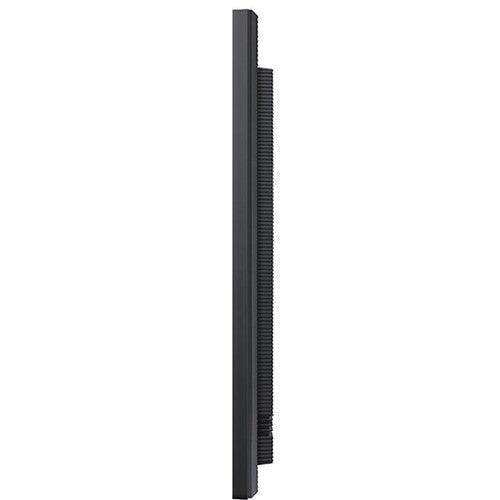

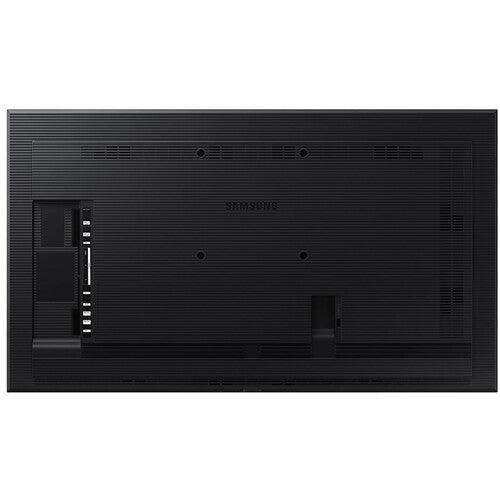

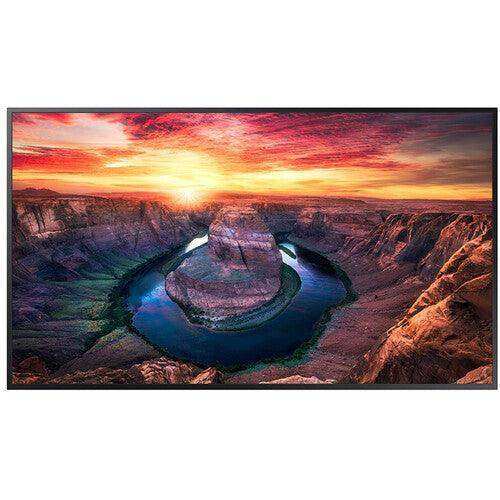

The QM43B-T pairs a 43-inch VA LCD panel at native 3840 x 2160 resolution with a capacitive touchscreen and a 25% haze, non-glare surface that reduces reflections in bright retail and lobby environments. As shown in the product imagery, the slim all-in-one chassis houses a built-in media player, eliminating the need for an external player in many deployments. The display runs Tizen 6.5 on a quad-core Cortex A72 CPU with 16 GB of flash storage, supporting onboard playback, scheduling, and Samsung MagicINFO content management (licensed separately). A 500-nit panel with a 4000:1 contrast ratio and 92% DCI-P3 color gamut keeps content legible and accurate across a 178 x 178-degree viewing angle. Connectivity includes three HDMI 2.0 inputs, one DisplayPort 1.2, HDCP 2.2, Wi-Fi, and 10/100 Ethernet, while RS-232C and IR control support integration into managed AV systems. Rated for 24/7 operation with an IP5X dust rating and conformal coating, the QM43B-T withstands repeated public interaction in retail, hospitality, and corporate settings. For larger touch deployments, integrators can pair it with other panels in the Samsung collection at Creation Networks.

Key Features

• Capacitive Multi-Touch — The responsive capacitive touchscreen supports interactive wayfinding, self-service kiosks, and collaborative meeting-room use.
• 4K UHD Resolution — The native 3840 x 2160 VA panel delivers clear, detailed content for close-range customer engagement.
• Built-in Tizen 6.5 Media Player — An onboard quad-core player with 16 GB storage runs content without an external media device in most deployments.
• 24/7 Duty Cycle — The display is rated for continuous operation, making it suitable for always-on digital signage and public interaction.
• Non-Glare Panel — A 25% haze, non-glare surface reduces reflections for clearer visibility in bright lobbies and retail spaces.
• IP5X Dust Rating — The dust-resistant design and conformal coating support reliable operation in demanding commercial environments.
• RS-232C and IP Control — Standard control interfaces allow integration into managed AV control and automation systems.
• MagicINFO Support — Samsung MagicINFO enables centralized content creation, scheduling, and device management across multiple displays (licensed separately).
• Portrait and Landscape Mounting — Auto Level orientation support lets integrators install the panel vertically or horizontally to fit the space.

Typical Applications

• Conference room and huddle room interactive displays
• Commercial meeting space wayfinding and self-service kiosks
• Training room collaboration and annotation
• Multi-purpose room interactive digital signage

Technical Specifications

Frequently Asked Questions

Does the QM43B-T require an external media player?

No. The display includes a built-in Tizen 6.5 media player with a quad-core CPU and 16 GB of storage, so it can run signage content and applications on its own in most deployments.

What touch technology does it use, and is it suitable for collaboration?

It uses a capacitive multi-touch panel that supports responsive interaction for wayfinding, self-service, and conference room collaboration. The non-glare surface keeps content readable in bright spaces.

Can it be controlled by a third-party AV control system?

Yes. The display provides RS-232C and IR control inputs plus IP control, allowing integration into managed AV control and automation platforms.

Is it rated for continuous signage operation?

Yes. The QM43B-T is rated for a 24/7 duty cycle and carries an IP5X dust rating with conformal coating, making it suitable for always-on public-facing signage.

How is content managed across multiple displays?

Samsung MagicINFO (licensed separately) provides centralized content creation, scheduling, and device management across a fleet of displays. Contact Creation Networks for licensing and AV integration support.
