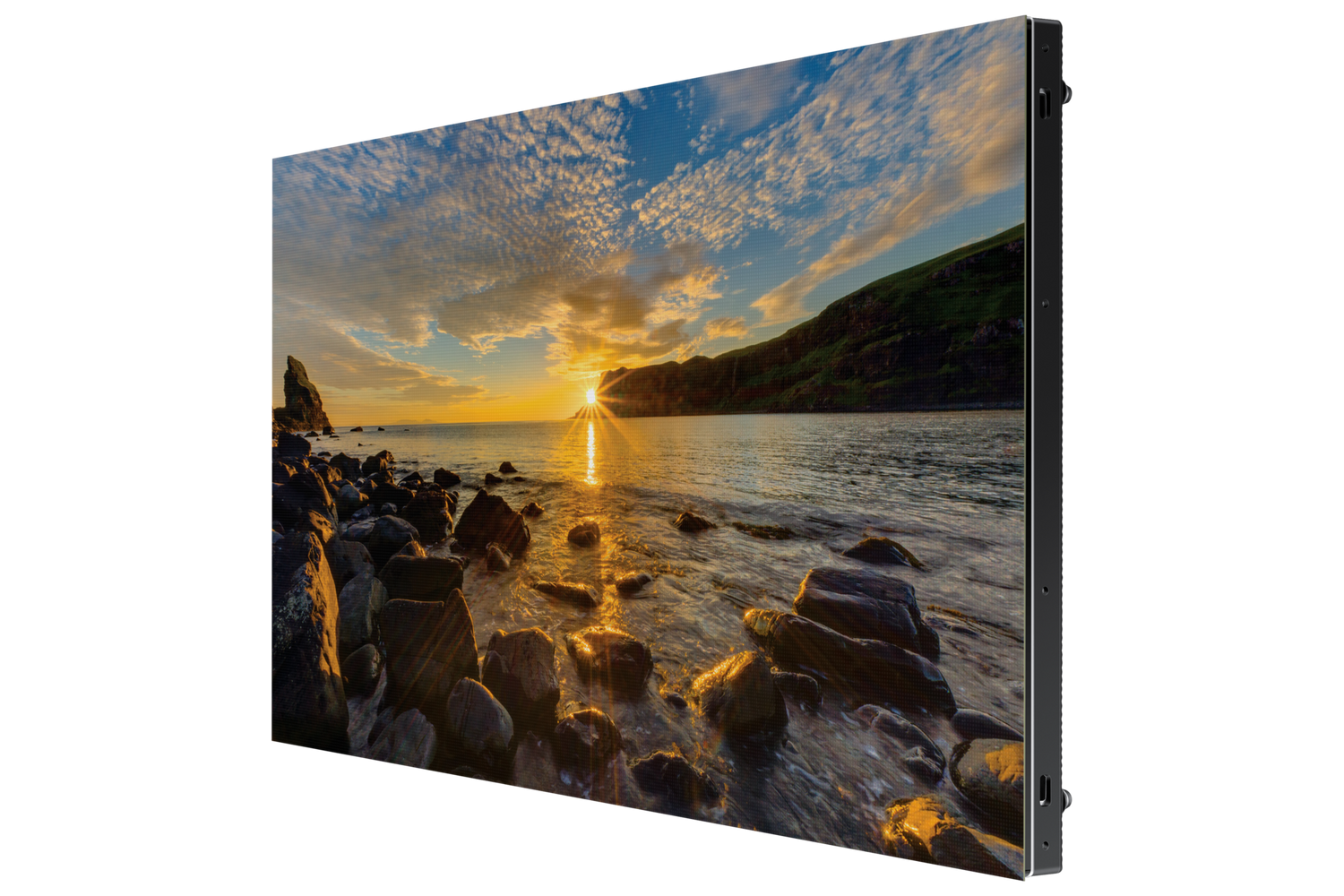

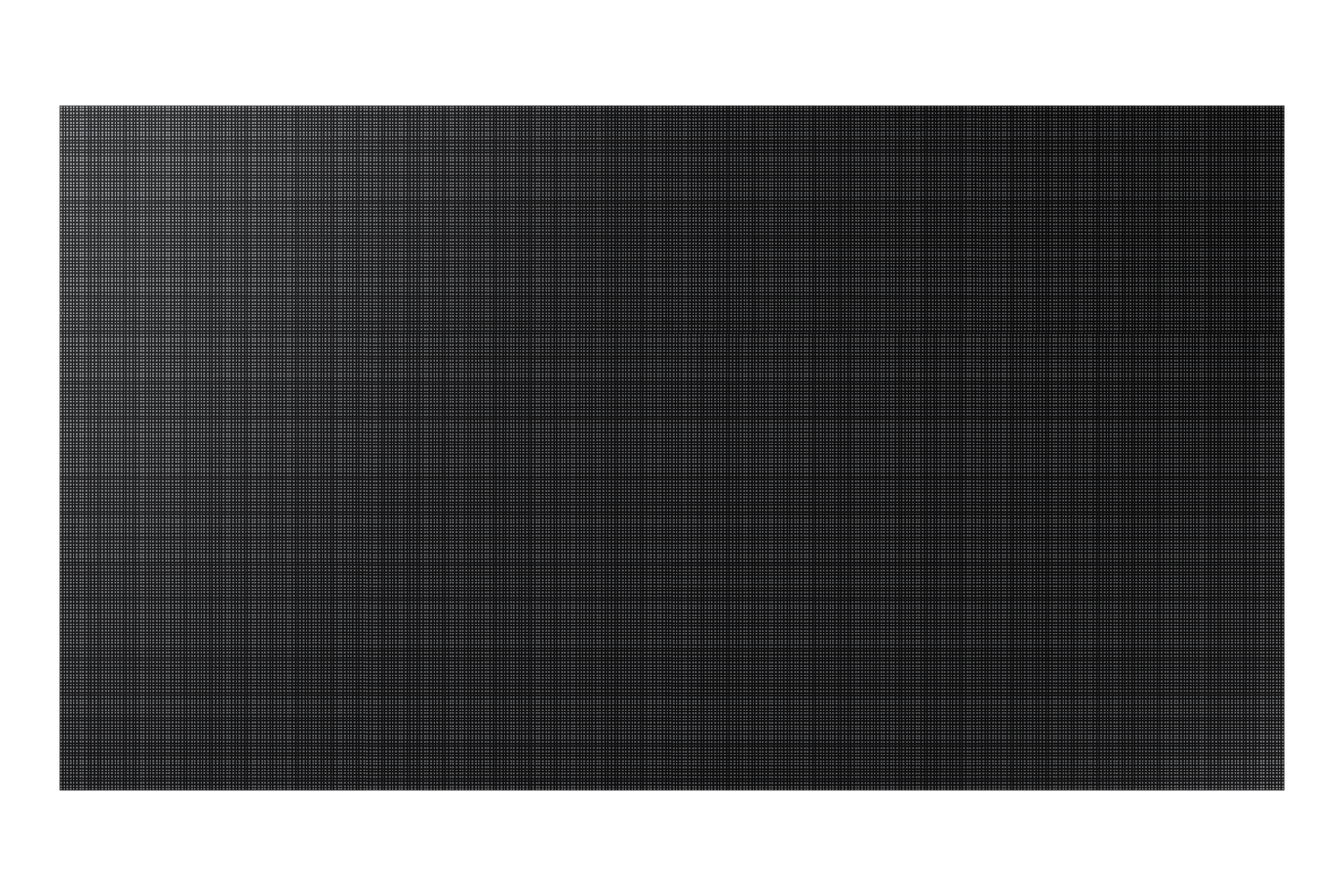

Samsung P4.0 Direct View LED Cabinet (L-Type) IF040R-F

Product Overview

The Samsung P4.0 Direct View LED Cabinet L-Type (IF040R-F) is a 4.0mm pixel pitch LED module designed for high-brightness signage, large-format video walls, and stadium or arena display applications. The L-type cabinet format provides structural flexibility for curved or angled video wall configurations, making it suitable for AV designers and systems integrators building installations that require non-flat geometries. Direct-view LED cabinets at P4.0 are commonly specified for retail outdoor windows, transit hubs, arenas, and large open-plan indoor venues where viewing distances exceed 5 meters.

Product Description

The IF040R-F is part of Samsung's commercial direct-view LED cabinet lineup, offering a 4.0mm pixel pitch appropriate for applications where viewers are positioned at distances of 5 meters or greater. At this pitch, the cabinet delivers high brightness and visibility across large spaces without the cost premium of fine-pitch panels, making it a practical choice for large-area installations.

The L-type designation indicates a cabinet geometry that supports angled or curved multi-cabinet arrays, allowing integrators to construct concave, convex, or corner video wall configurations. This design flexibility is valuable in architectural installations, retail environments, sports venues, and transportation hubs where flat-panel arrays are not feasible.

Cabinets tile using standard alignment hardware, and the signal processing infrastructure supports integration with Samsung's LED processing platform as well as third-party video wall controllers. As with other Samsung direct-view LED cabinets, the IF040R-F supports multi-cabinet scaling to any required total screen area, limited only by available signal processing capacity and structural support.

Key Features

• 4.0mm Pixel Pitch — Appropriate for large-venue installations with viewing distances of 5 meters or greater.
• L-Type Cabinet Geometry — Supports curved and angled video wall configurations for architectural and venue installations.
• Direct-View LED Technology — High brightness and wide viewing angle without projection or backlight limitations.
• Scalable Array Design — Tiles with additional cabinets to build any required total screen area.
• Compatible with Standard LED Processing — Integrates with Samsung LED processors and major third-party video wall controllers.
• Commercial Installation Ready — Designed for professional installation by qualified AV integrators.

Typical Applications

• Sports Venues, Arenas, and Stadium Fascia Displays
• Retail Large-Format Window and Storefront Displays
• Transit Hubs, Airports, and Transportation Centers
• Large Open-Plan Indoor Atria and Public Spaces
• Curved or Corner Video Wall Architectural Installations
• House-of-Worship Large-Venue Screens

Technical Specifications

Frequently Asked Questions

What does L-Type mean for this cabinet?

The L-type designation refers to the cabinet geometry, which supports angled or curved multi-cabinet video wall configurations. Unlike standard flat cabinets, L-type cabinets can be used to construct concave, convex, or 90-degree corner display arrays, expanding the range of architectural installations possible with direct-view LED.

What is the recommended minimum viewing distance for a P4.0 display?

A 4.0mm pixel pitch is suited for viewing distances of approximately 5 meters or greater. At shorter distances, individual pixels may be visible. For closer viewing, consider Samsung LED cabinets with finer pixel pitches such as P1.6, P1.2, or P0.8.

Can the IF040R-F be used outdoors?

Outdoor suitability depends on the specific enclosure rating of the cabinet. Consult Samsung's product documentation or your integration partner to confirm whether this model meets the IP rating required for your outdoor installation environment.
