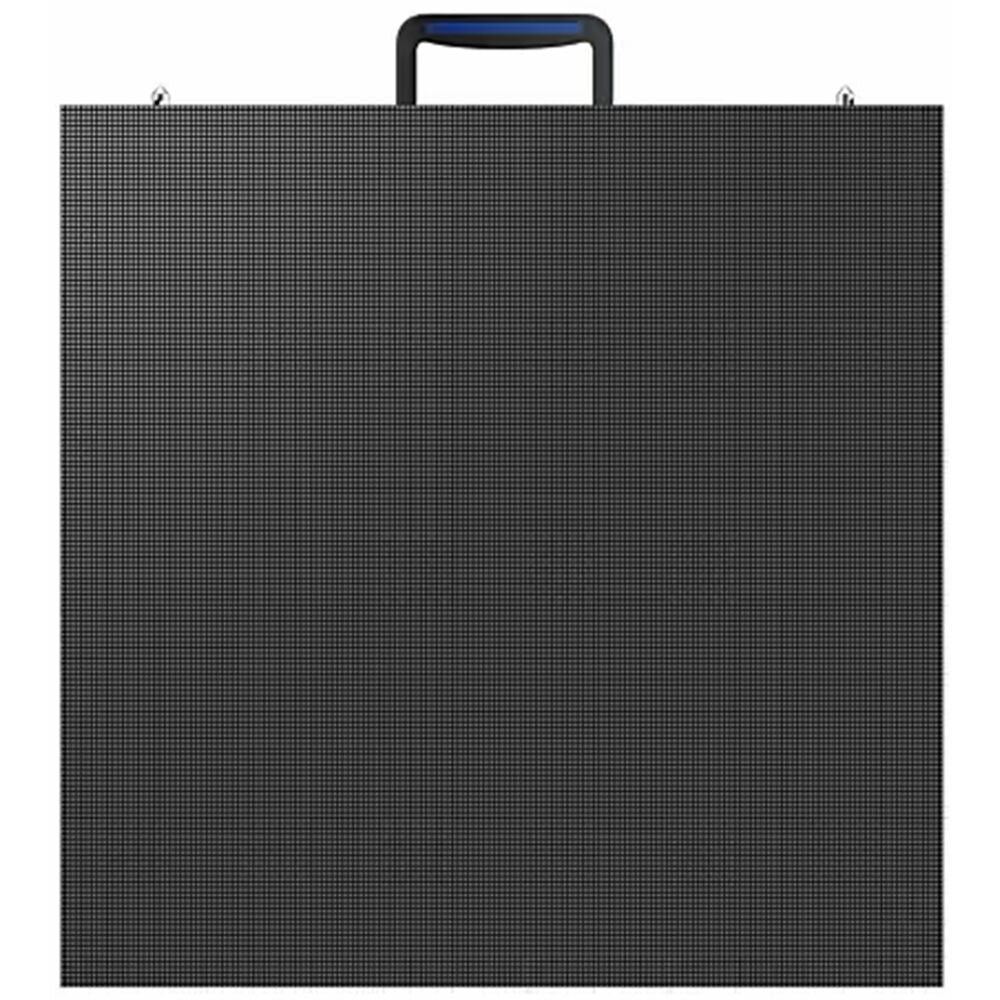

Samsung P3.9 XRB-L – IP65 Outdoor LED Cabinet, 500x500mm

Product Overview

The Samsung P3.9 XRB-L is a 3.9mm pixel pitch outdoor LED rental cabinet in a 500x500mm form factor rated IP65 for weather resistance. Designed for temporary event installations, live production environments, and touring rental inventory, the XRB-L cabinet offers the structural durability and fast-rigging characteristics required in professional AV rental operations. Primary applications include outdoor stage backdrops, festival video walls, live event displays, and architectural projection-replacement installs requiring high-brightness LED at fine pixel pitch in variable outdoor conditions.

Product Description

The P3.9 XRB-L operates at 3.9mm pixel pitch, delivering image quality suitable for audiences at distances typically starting from 4 meters, depending on content type and ambient light conditions. At 500x500mm, each cabinet is a standard rental module size, compatible with common rigging frames and ground-support structures used in the live event and touring production industries. IP65 ingress protection means the cabinet is fully dust-sealed and protected against direct water jets, qualifying it for exposed outdoor use in rain, dust, and variable weather conditions without supplemental enclosures. UV-resistant materials extend the operational lifespan of the cabinet in high-sunlight environments, reducing degradation of cabinet housing and LED components from prolonged UV exposure. High-brightness LED output is adjustable to compensate for ambient light variation between daytime and nighttime operation, ensuring consistent image visibility across the full operating day. The flexible installation design accommodates both ground-stacked configurations and flown rigging setups, and the cabinet construction supports standard rental handling with locking mechanisms and carry handles appropriate for road-case transport. For touring and rental inventory operators, the XRB-L represents a durable per-cabinet investment with broad compatibility across standard rigging and control ecosystems used in professional AV production.

Key Features

• 3.9mm Pixel Pitch — Fine enough for audiences at 4m+ viewing distances, appropriate for mid-to-large stage backdrops and outdoor event video walls.
• 500x500mm Cabinet Format — Industry-standard rental module size compatible with common rigging frames, ground supports, and LED control infrastructure.
• IP65 Weather Rating — Full dust seal and direct water-jet resistance qualifies this cabinet for unsheltered outdoor deployment without supplemental protective enclosures.
• UV-Resistant Materials — Cabinet housing and component materials resist UV degradation, extending outdoor operational lifespan in high-sunlight climates.
• Adjustable High Brightness — Output level adjustable to maintain image visibility from daylight through nighttime operation without manual hardware changes.
• Rental-Ready Construction — Locking cabinet connectors, integrated carry handles, and road-case-compatible dimensions support repeated transport and installation cycles.
• Flexible Rigging Compatibility — Supports ground-stack and flown installation configurations using standard rental industry rigging hardware.

Typical Applications

• Outdoor Event Stages — IP65-rated cabinets handle exposure to rain and dust during live music, sports, and festival productions.
• Touring Production Inventory — Standard 500x500mm format integrates with established rental rigging systems for fast load-in and load-out.
• Corporate Outdoor Events — High-brightness output maintains visibility for daytime brand activations, product launches, and outdoor conferences.
• Temporary Architectural Installations — Fine pixel pitch and modular format support short-term large-format display applications on building facades and public spaces.
• Rental House Stock — Durable construction and standard module format maximize utilization across varied client event types and scales.

Technical Specifications

Frequently Asked Questions

What viewing distance is appropriate for P3.9 LED cabinets?

A 3.9mm pixel pitch is generally suitable for minimum viewing distances of approximately 4 meters. Optimal viewing distance depends on content type and ambient light. For closer viewing distances, a finer pixel pitch (P2.5 or below) is recommended.

Does IP65 mean the cabinet is waterproof?

IP65 means the cabinet is fully dust-sealed (6) and protected against direct water jets from any direction (5). It is not rated for submersion. The cabinet can be deployed in rain without supplemental covers, but should not be submerged or exposed to high-pressure washing while in operation.

Is the P3.9 XRB-L compatible with standard LED control systems?

Samsung LED rental cabinets are generally compatible with industry-standard LED control processors including Novastar and Brompton systems. Confirm specific control system compatibility with Creation Networks before finalizing your control infrastructure specification.

Can these cabinets be mixed with other Samsung LED rental cabinets?

Mixing LED cabinets of different pixel pitches or product lines is not recommended as it results in inconsistent pixel density across the video wall. Cabinets from the same product line and pixel pitch should be used together to maintain uniform image quality.

What is the minimum order quantity for rental inventory?

Contact Creation Networks for quantity pricing and availability on the P3.9 XRB-L. LED rental inventories are typically purchased in quantities sufficient to fill standard stage configurations (9 square meters and above).

How are the cabinets transported between events?

The XRB-L is designed for road-case transport with integrated carry handles and locking connectors. Custom LED road cases designed for 500x500mm rental formats are available from major AV case manufacturers and should be specified when purchasing rental inventory.

What LED control signal formats does the XRB-L accept?

Refer to the Samsung XRB-L data sheet for confirmed signal input specifications. Typical Samsung LED rental displays accept standard DVI or fiber-optic signal from compatible LED control processors. Confirm with your control system vendor before integration.
