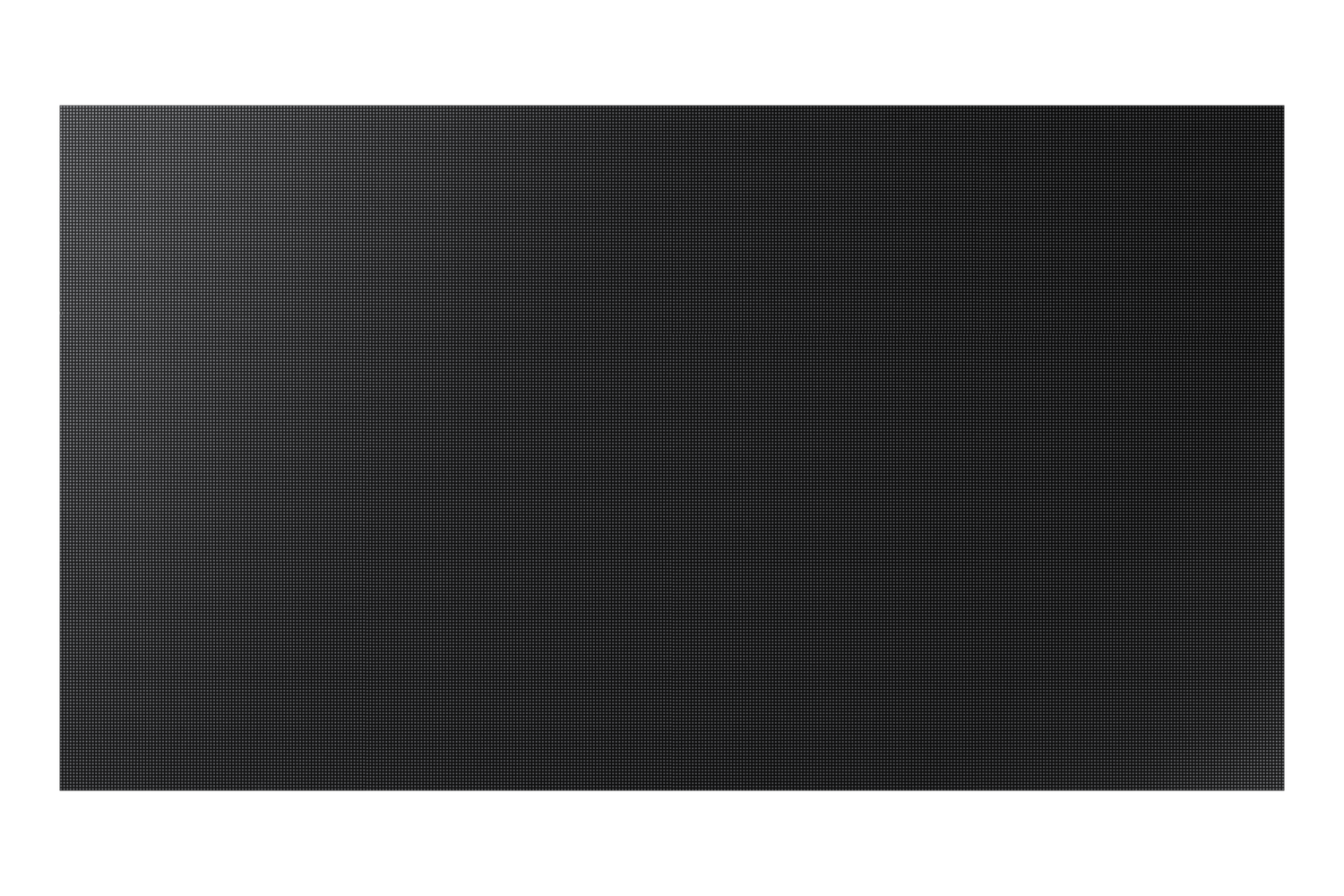

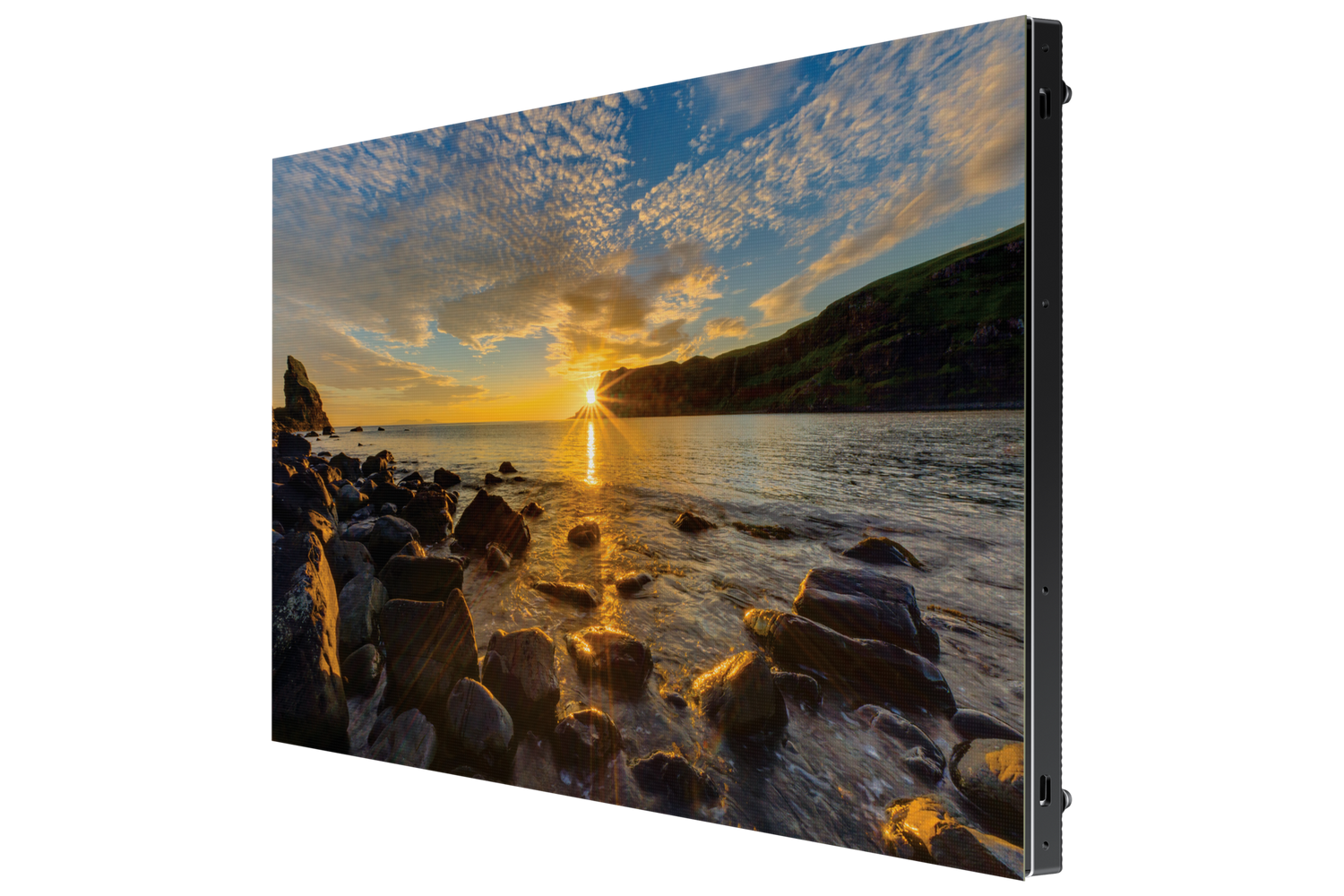

Samsung IFR-F Direct View LED Cabinet – P2.5 L-Type

Product Overview

The Samsung P2.5 Direct View LED Cabinet (IF025R-F) is a professional indoor LED panel from Samsung's IFR-F series, built for commercial video wall installations where viewing distances of 2.5 meters or greater are standard. The L-type cabinet format and 2.5mm pixel pitch make it a practical choice for large-format displays in corporate, hospitality, and public venue environments. The IF025R-F provides systems integrators with a balance of image quality and installation efficiency, backed by Samsung's commercial AV ecosystem. It is a reliable option for AV designers and procurement teams building scalable LED display solutions on a defined budget.

Product Description

The Samsung IF025R-F Direct View LED Cabinet features a 2.5mm pixel pitch suited for viewing distances typical in conference centers, hotel ballrooms, retail flagships, and corporate lobbies. The L-type cabinet format includes alignment and locking features that help installation teams build precise, consistent video wall arrays with minimal seam variance. As part of Samsung's IFR-F series, the IF025R-F supports integration with Samsung's LED processor platform, enabling centralized control over brightness, color calibration, and diagnostic monitoring across multi-panel installations. Front serviceability allows LED module replacement without dismantling the display from the wall, reducing maintenance downtime in permanently installed systems. The cabinet's signal chain supports daisy-chain routing between panels, reducing the total cabling infrastructure required for large video wall configurations. Commercial-grade LED components provide the durability required for extended operating hours in professional signage and AV environments. The 2.5mm pixel pitch positions the IF025R-F as a strong performer in spaces where display area size and cost-per-square-meter are primary considerations, rather than ultra-fine resolution for close-range viewing. Systems integrators will appreciate the straightforward installation process and the IF025R-F's compatibility with Samsung's broader commercial display and control ecosystem.

Key Features

• 2.5mm Pixel Pitch — delivers clear imagery for viewing distances of 2.5 meters and beyond.
• L-Type Cabinet Design — alignment and locking features for accurate, efficient multi-panel video wall assembly.
• Front-Serviceable — LED modules accessible from the front face for wall-mount and recessed installations.
• Samsung Ecosystem Integration — works with Samsung LED processors for centralized brightness and color management.
• Daisy-Chain Signal Routing — simplifies cabling for large-scale video wall configurations.
• Commercial-Grade Components — designed for extended continuous operation in professional environments.
• Scalable Architecture — tile multiple cabinets to configure custom display sizes and aspect ratios.

Typical Applications

• Corporate boardroom and conference center displays
• Hotel ballroom and event venue video walls
• Retail flagship and showroom digital displays
• Airport and transit hub information walls
• University and campus auditorium displays
• Broadcast studio and live event LED backdrops

Technical Specifications

Frequently Asked Questions

How does the P2.5 pixel pitch compare to P2.0 for my installation?

The P2.5 cabinet is the right choice when your audience is primarily seated or standing 2.5 meters or more from the display, and when maximizing display area within budget is a priority. For installations where viewers will be closer than 2.5 meters, the P2.0 cabinet provides finer resolution. Creation Networks can help assess which pixel pitch fits your specific viewing geometry.

Can I mix P2.5 and P2.0 cabinets in the same video wall?

Mixing different pixel pitches in the same video wall array is not recommended, as it produces visible inconsistencies in image appearance at the seam between cabinet types. Use a consistent pixel pitch across your entire display configuration for uniform image quality.

What controller or processor is required for the IF025R-F?

The IF025R-F integrates with Samsung's LED processor platform. Contact Creation Networks for controller and processor recommendations tailored to your display size and content requirements.
