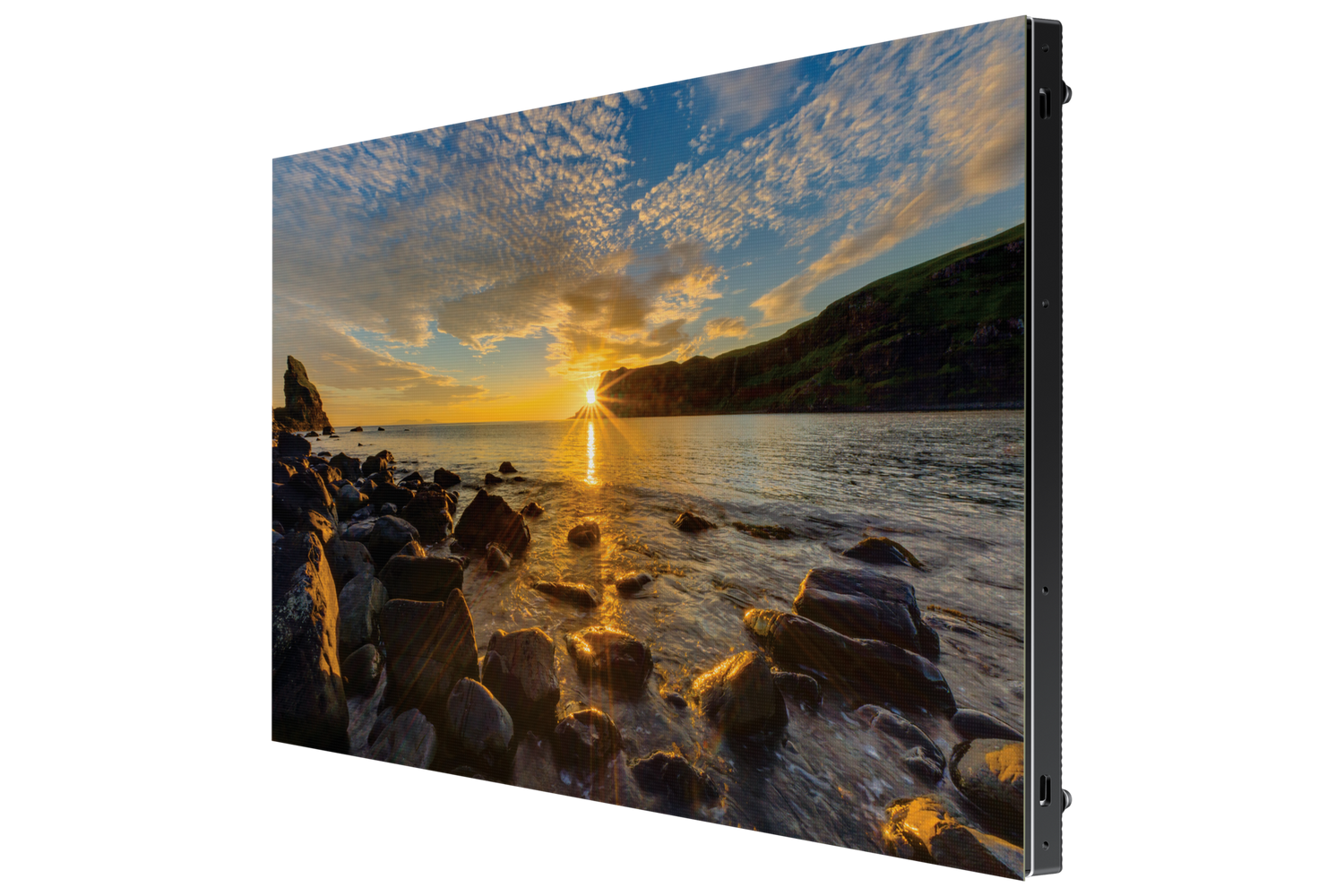

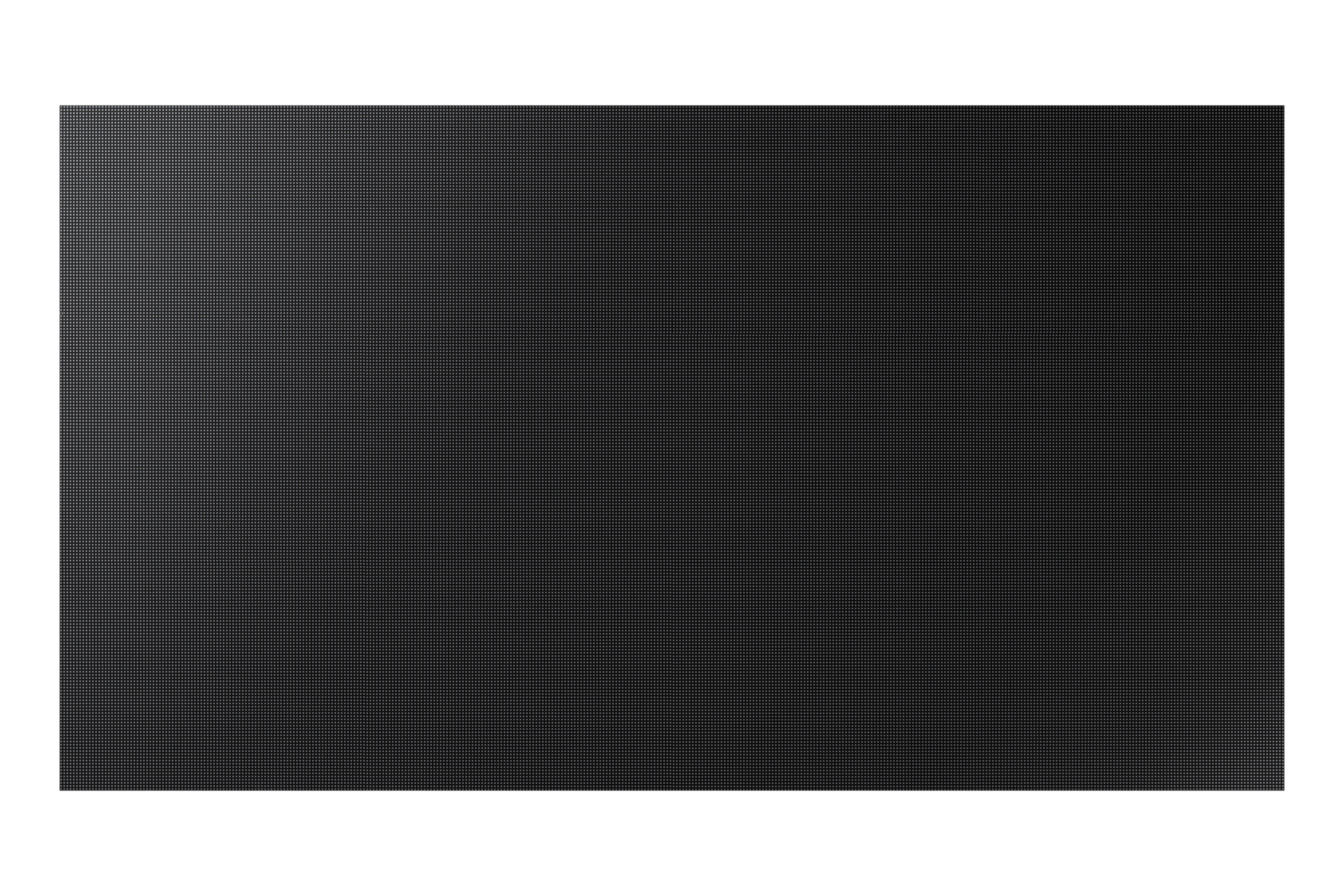

Samsung IF020R-F P2.0 Direct View LED Cabinet L-Type

Product Overview

The Samsung IF020R-F is a P2.0 pixel pitch direct-view LED cabinet in the IFA-F series, designed for large-format indoor video wall installations. The L-type cabinet configuration supports corner-wrap video wall layouts, enabling continuous display surfaces at architectural corners without panel breaks. At 2.0mm pixel pitch, this cabinet balances resolution and cost-efficiency for mid-to-large viewing distance environments such as corporate lobbies, event spaces, and auditoriums. It is rated for 24/7 continuous operation and is compatible with Samsung MagicInfo.

Product Description

The IF020R-F cabinet is positioned for commercial and institutional deployments where display area and ambient impact matter as much as pixel-level resolution. A 2.0mm pixel pitch is well-matched to spaces where viewers are typically seated or positioned 3 to 6 meters from the screen — auditoriums, conference halls, large lobbies, and open-plan corporate environments. The L-type format enables corner-wrap configurations, allowing video wall designers to route a continuous display surface around 90-degree building corners without the structural and visual disruption of terminating and restarting a panel array. This makes it particularly useful in open-plan environments where a single cohesive display needs to span multiple walls. The cabinet uses Samsung's multi-tile calibration process to ensure consistent luminance and white point across all panels in an array, which is critical for large-format installations where color drift between cabinets is visible to viewers. Internal power and signal management reduces the amount of external cabling required, supporting cleaner finished installations. The IF020R-F supports front-access servicing, allowing field technicians to replace LED modules without removing the cabinet from the wall. Content integration is supported through Samsung MagicInfo and standard AV input interfaces, making it compatible with a broad range of enterprise AV ecosystems.

Key Features

• P2.0 pixel pitch — appropriate resolution for mid-to-large viewing distances in auditoriums, lobbies, and event spaces.
• L-type corner cabinet — enables continuous video wall surfaces around 90-degree architectural corners.
• 24/7 continuous operation rated — suitable for always-on commercial and institutional signage.
• Front-access maintenance — LED modules can be serviced from the front without removing the cabinet.
• Multi-tile luminance calibration — factory-matched brightness and color for consistent appearance across large arrays.
• Samsung MagicInfo compatible — supports centralized content management and remote monitoring.

Typical Applications

• Corporate auditoriums and all-hands presentation spaces
• Hotel ballrooms and event venue feature walls
• University lecture halls and campus common areas
• Airport and transit hub information displays
• Government and municipal briefing rooms
• Large-format retail and showroom video walls

Technical Specifications

Frequently Asked Questions

What viewing distance is recommended for P2.0 LED cabinets?

P2.0 is generally suited for minimum viewing distances of approximately 2 meters, with typical installation design targeting 3–6 meter viewing distances for auditoriums, lobbies, and event spaces. At closer distances, individual pixels may become distinguishable depending on ambient lighting and content type.

How does the L-type cabinet differ from a standard flat cabinet?

The L-type cabinet is manufactured with a specific corner geometry that allows two panel faces to meet at a 90-degree angle. Standard flat cabinets tile in a single plane. The L-type is used exclusively for installations that require the video wall to wrap around a building corner with no seam or gap at the junction.

Is this cabinet compatible with non-Samsung video wall controllers?

The IF020R-F supports standard AV input interfaces and can be integrated with third-party video wall processors and controllers. Compatibility details depend on the specific controller and input configuration. Confirm integration requirements with your AV systems integrator before specifying the installation design.
