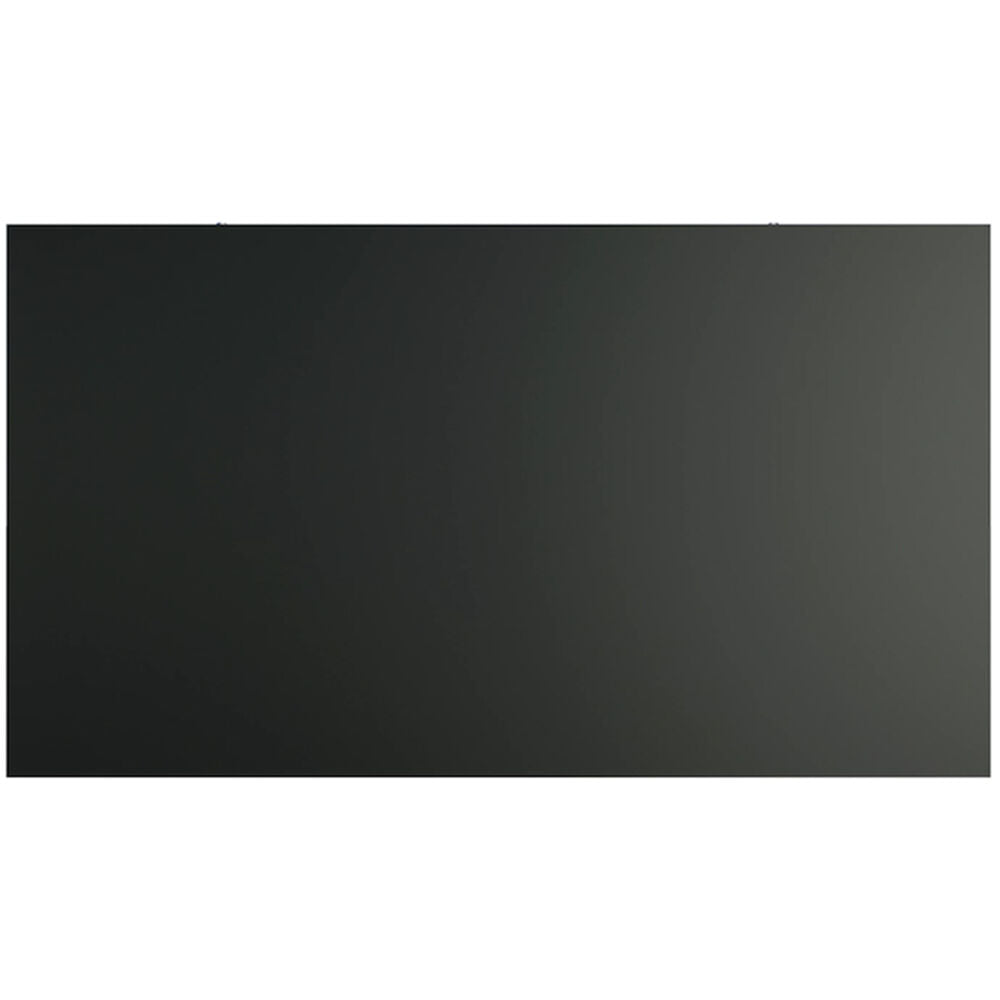

Samsung IEC – P1.2 Entry LED Indoor Display Panel

Product Overview

The Samsung P1.2 IEC (Indoor Cabinet) series entry LED display panel delivers 1.2mm pixel pitch direct-view LED performance in a modular cabinet format for indoor video wall applications requiring fine-pitch LED quality at a more cost-accessible price point than P0.9 cabinets. At P1.2mm, the IEC provides high-resolution direct-view LED display at viewing distances from approximately 1.5-3 meters (5-10 feet) — appropriate for corporate lobby video walls, executive reception areas, conference room feature walls, and digital signage applications where fine LED resolution is required at a lower cost-per-square-meter than sub-1mm pixel pitch products.

Product Description

The IEC Entry series offers AV designers a modular LED pathway into fine-pitch indoor direct-view displays without the cost premium of the sub-1mm tier. At 1.2mm pixel pitch, the display achieves acceptable pixel structure concealment at typical indoor commercial viewing distances of 1.5-3 meters, making it appropriate for lobby reception walls, conference room video wall feature walls, and indoor digital signage applications where viewers approach the panel at standard walking distances rather than close-proximity desk viewing. The modular cabinet construction allows custom display dimensions to suit varied commercial space configurations — a core advantage of LED video wall architecture over fixed-size panel alternatives. Super-slim 38mm depth minimizes wall protrusion for clean architectural integration. Hanging, stacking, and L-type installation flexibility supports non-standard architectural configurations beyond standard flat-wall mounting. Samsung's commercial LED quality standards provide production consistency appropriate for corporate, government, and education deployments. For P0.9 IEC at higher resolution or P1.5 at lower cost, see the Samsung IEC LED display lineup at Creation Networks.

Key Features

• P1.2mm Pixel Pitch — Fine-pitch indoor direct-view LED for commercial lobby, reception, and conference room video wall applications at viewing distances from 1.5+ meters.
• 600 Nit Brightness — Calibrated for well-lit commercial indoor environments including lobbies, conference rooms, and event spaces.
• 38mm Ultra-Slim Depth — Minimal wall protrusion for architectural integration in commercial installations.
• Flexible Installation — Hanging, stacking, and L-type support for non-standard architectural display configurations.
• Modular Cabinet Format — Custom display dimensions for varied commercial space requirements beyond standard fixed-size panel formats.
• Samsung Commercial Quality — IEC series quality and consistency standards for corporate, government, and education AV deployments.

Typical Applications

• Corporate Lobby Video Wall — Fine-pitch LED feature wall for reception and entrance environments where display quality reflects brand standards.
• Conference Room Feature Display — Premium video wall for flagship conference rooms requiring LED display quality without visible pixel structure at seating distances.
• Government Operations — LED video wall for command center or operations center multi-source data display.
• Education Campus — LED video wall for campus commons or auditorium lobby digital signage and announcement displays.

Technical Specifications

Frequently Asked Questions

What is the minimum viewing distance for P1.2mm LED?

At P1.2mm pixel pitch, content is rendered without visible pixel structure at approximately 1.2-2 meters (4-7 feet) minimum viewing distance. For commercial lobby and reception environments with viewer distances of 2+ meters, P1.2 provides fine-pitch LED quality. For desk-proximity viewing under 1.2 meters, P0.9 or sub-1mm pixel pitch is recommended.

How many cabinets are needed for a specific video wall size?

Cabinet requirements depend on target display dimensions. This listing is for a single P1.2 IEC cabinet module. Contact Creation Networks for display sizing calculations, cabinet quantity, and complete system component requirements including LED processor and controller hardware.

What content management system is compatible?

Samsung MagicINFO and compatible third-party LED content management solutions are supported. Contact Creation Networks for CMS integration recommendations specific to your P1.2 IEC deployment.

Does the IEC system require professional installation?

Yes. LED video wall systems require professional AV installation including structural assessment, LED processor configuration, and signal chain commissioning. Creation Networks provides complete LED video wall integration services.
