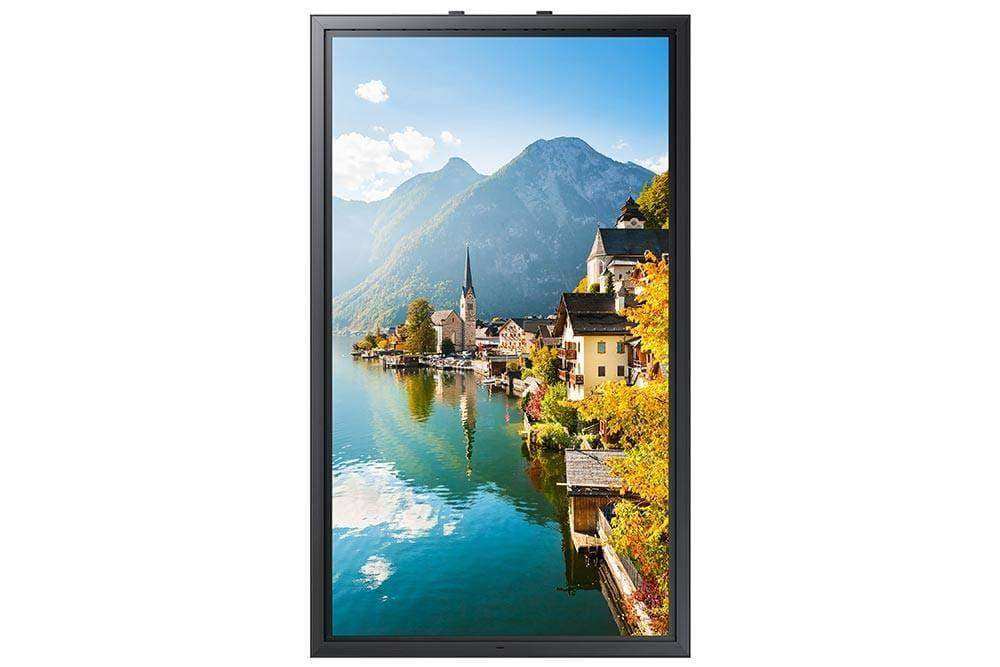

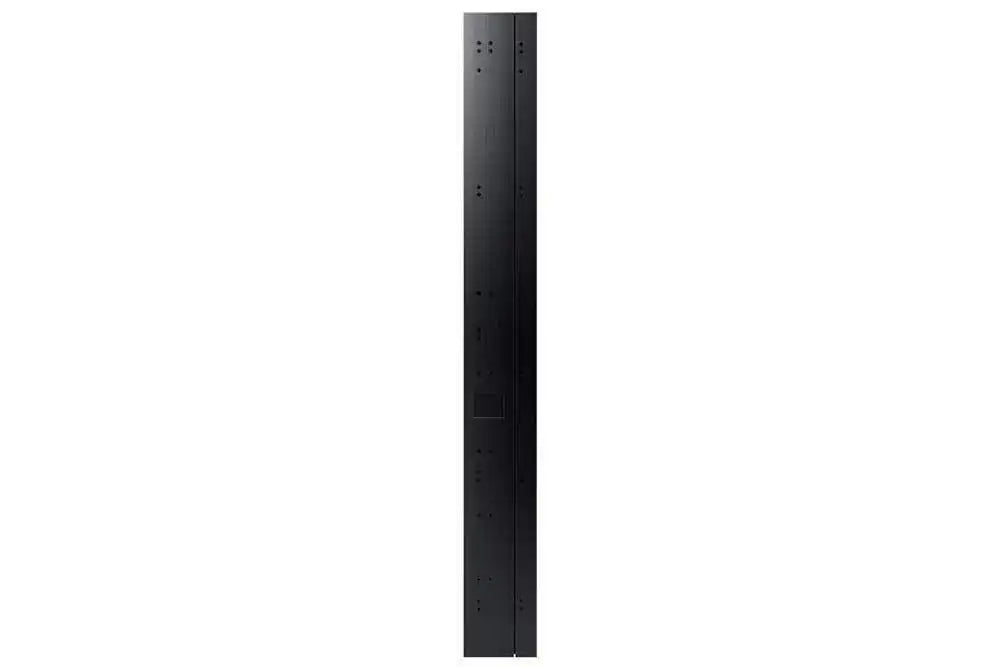

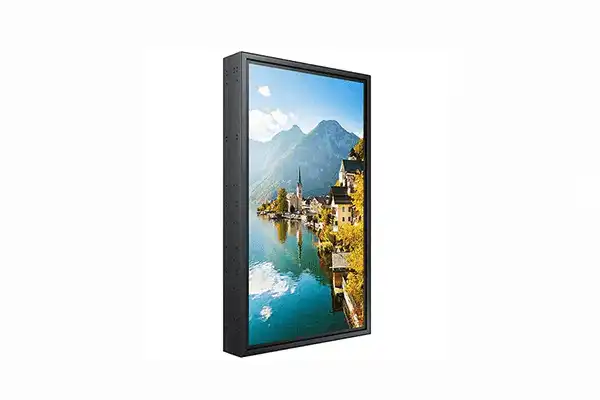

Samsung OHN-D Series 85" Class 4K UHD Dual-Sided Digital Signage Display - OH85N-D

Availability: Call for Availability
Availability: Direct Ship
Samsung SKU: OH85N-D
No reviews
Price:
$63,761.00 $78,475.00

Description

The Samsung OHN-D 85" Class Full HD Dual-Sided Digital Signage LED Display is a dual display with screens on both sides, so you can maximize messaging. The window-facing screen projects clear, bright images so you can attract and engage your audience. Once inside, you can promote sales, new merchandise, and provide additional information about the store and its services on the indoor-facing screen. With two screens in one display, you can reduce equipment and installation costs and improve operational efficiency, compared to installing two separate displays. This all-in-one digital signage solution allows for easy content management and seamless playback.

Dual Display with Bright, Brilliant, Glare-Free Picture Quality

 At 3000 cd/m², messages on the window-facing screen remain bright and clear even in direct sunlight in a storefront. Combined with a high 5000:1 contrast ratio, you get an uncompromised picture that can capture customers' attention and entice them into your store. And at 1000 cd/m², the indoor-facing screen delivers clear, legible images and text.

Designed for Storefront Window Displays

 A slim design lets you easily mount the OM-N series display on a stand or hang it from a ceiling, so you have more options for positioning, giving you flexibility in how your valuable floor space is designed and utilized. The clean look of the display allows for customer engagement without aesthetic distraction.

All-in-One Digital Signage Solution

 The embedded MagicInfo Player S6, backed by the Tizen operating system, boosts the display's performance, allows for easy content management, and helps to ensure seamless content transition and playback. All without the need for an external signage player or computer.

Samsung Circular Polarizing Technology

 Samsung's circular polarizing technology allows content to be easily viewed, even by passersby wearing polarized sunglasses.

Commercial Reliability

 Built to handle 24/7 continuous operation with IP5X-validated dust protection and engineering to prevent damage from overheating, you'll be able to deliver impactful messaging to your audience around the clock, while a 3-year onsite warranty secures your investment and peace of mind.

Clutter-Free Cable Management

 The OMN-D series frees up space, offering retailers more room to market themselves to potential customers on both sides with one display. The display is easily activated with one electric power cord and one LAN cable, reducing cord clutter and increasing energy efficiency. A connectivity cover at the top of the display keeps connections clean and organized.

Panel

    • Diagonal Size85"
    • Type60Hz D-LED Local Dim. BLU
    • Resolution3840*2160 (4K UHD)
    • Pixel Pitch(mm)0.488 x 0.488
    • Active Display Area(mm)1872(H) x 1053(V)
    • Brightness(Typ.)3,300 (w/o glass) nit
    • Contrast Ratio3000:1
    • Viewing Angle(H/V)178/178
    • Response Time(G-to-G)8ms
    • Display Colors8 bit - 16.7 Mbit
    • Color Gamut72%
    • Operation HourN/A
  • Haze0%

Display

  • Dynamic C/R100,000:1
  • H-Scanning Frequency15 ~ 135KHz (HDMI), 30 ~ 135KHz (DP)
  • V-Scanning Frequency24 ~ 75Hz (HDMI), 30 ~ 75Hz (DP)
  • Maximum Pixel Frequency594MHz (HDMI), 533.25MHz (DP)

Connectivity

Input

    • RGBDP 1.2 (2)
    • VideoHDMI 2.0 (4)
  • HDCPHDCP 2.2
  • USBUSB 2.0 (2)

Output

  • AudioStereo Mini Jack
  • External ControlRS232C (In), RJ45 (In)

Power

  • TypeInternal
  • Power SupplyAC 100 - 240 V (+/- 10 %), 50/60 Hz

Power Consumption

    • Max[W/h]3,600 (1,800x2)
    • Typical[W/h]W/W(EU) 1200 (600x2)US/KOR/Etc. 2,020 (1,010x2)※ Etc: CHINA, TAIWAN, BRA
  • BTU(Max)12276 (6,138x2)
  • Sleep modeless than 1W
  • Off modeless than 1W

Mechanical Specification

Dimension (mm)

  • Set1,193 x 2,012 x 228 mm
  • Package1,510 x 2,284 x 577 mm (Without Pallet)

Weight (kg)

  • Set255kg
  • Package310.6kg

    Operation

      • Operating Temperature-30  ℃  ~   50   ℃
    • Humidity10  %  ~   100   %   (Non-Condensing)

    Feature

      • Key FeaturesDual Display, High Brightness, IP56 Outdoor,Built-in MagicInfo Player S6, SSSP6
      • OrientationN/A
    • Remote ControlN/A
    • Special FeaturesIP56 Rated Simple Enclosure Outdoor, Polarized Sun Glasses Viewable in any direction, Portrait Installation Support, Auto Brightness Control with Ambient Brightness Sensor, Temperature Sensor, RJ45 MDC, Auto Source Switching & Recovery, Clock Battery(80hrs Clock Keeping)

    Internal Player

      • ProcessorCortex A72 1.7GHz Quad-Core CPU
      • On-Chip Cache MemoryL1 Instruction Cache : 48KB L1 Data Cache : 32KB L2 Cache : 2MB
      • Clock Speed1.7GHz
    • Main Memory Interface2.5GB LPDDR4 1.5GHz 64bit
      • GraphicsGraphic resolution : 1920x1080 Output resolution : up to 3840x2160 (Scale up from graphic processing result.) - Supports OpenGL ES
      • Storage (FDM)8GB (3.88GB Occupied by O/S, 4.12GB Available)
      • MultimediaVideo Decoder - MPEG-1/2/4, H.263, H.264/AVC, UHD H.264/AVC - VC-1, AVS+, HEVC, JPEG, PNG, VP8, VP9 Audio Decoder - AC3 (DD), MPEG
     IO PortsUSB 2.0
    • Operating SystemTizen 4.0 (VDLinux)

    Certification

      • SafetyCB (Europe) : IEC60950-1/EN60950-1 UL(USA) : cUL60950-1
      • EMCFCC (USA) Part 15, Subpart B Class A CE (Europe) : EN55022:2006+A1:2007 EN55024:1998+A1:2001+A2:2003
    • IP RatingIP56

    Accessory

    • IncludedQuick Setup Guide, Regulatory Guide, Warranty Card, Remote Controller, Batteries

    Optional

      • StandN/A
      • MountN/A
    • SpecialtyN/A

    Media Player

    • Media PlayerN/A
