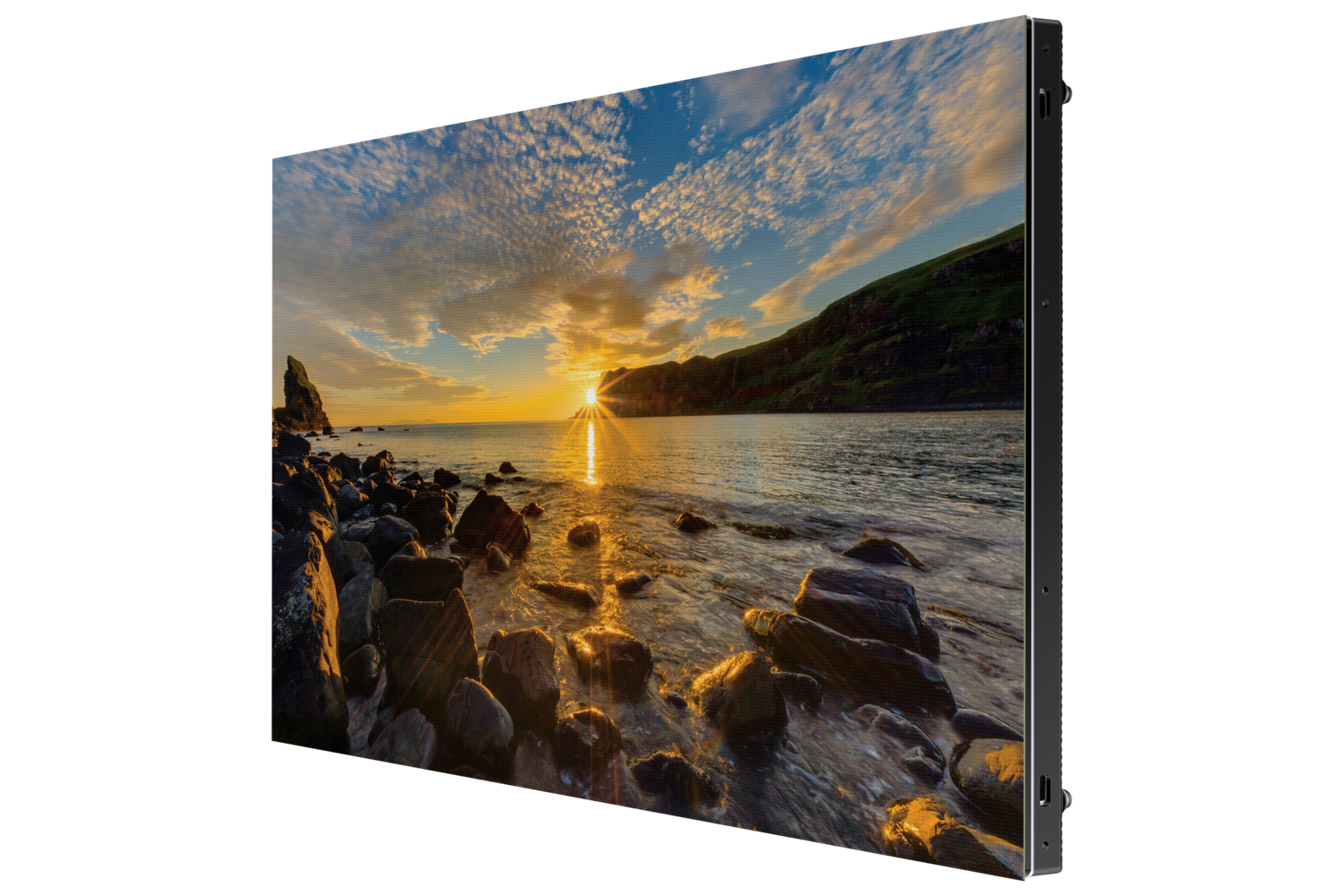

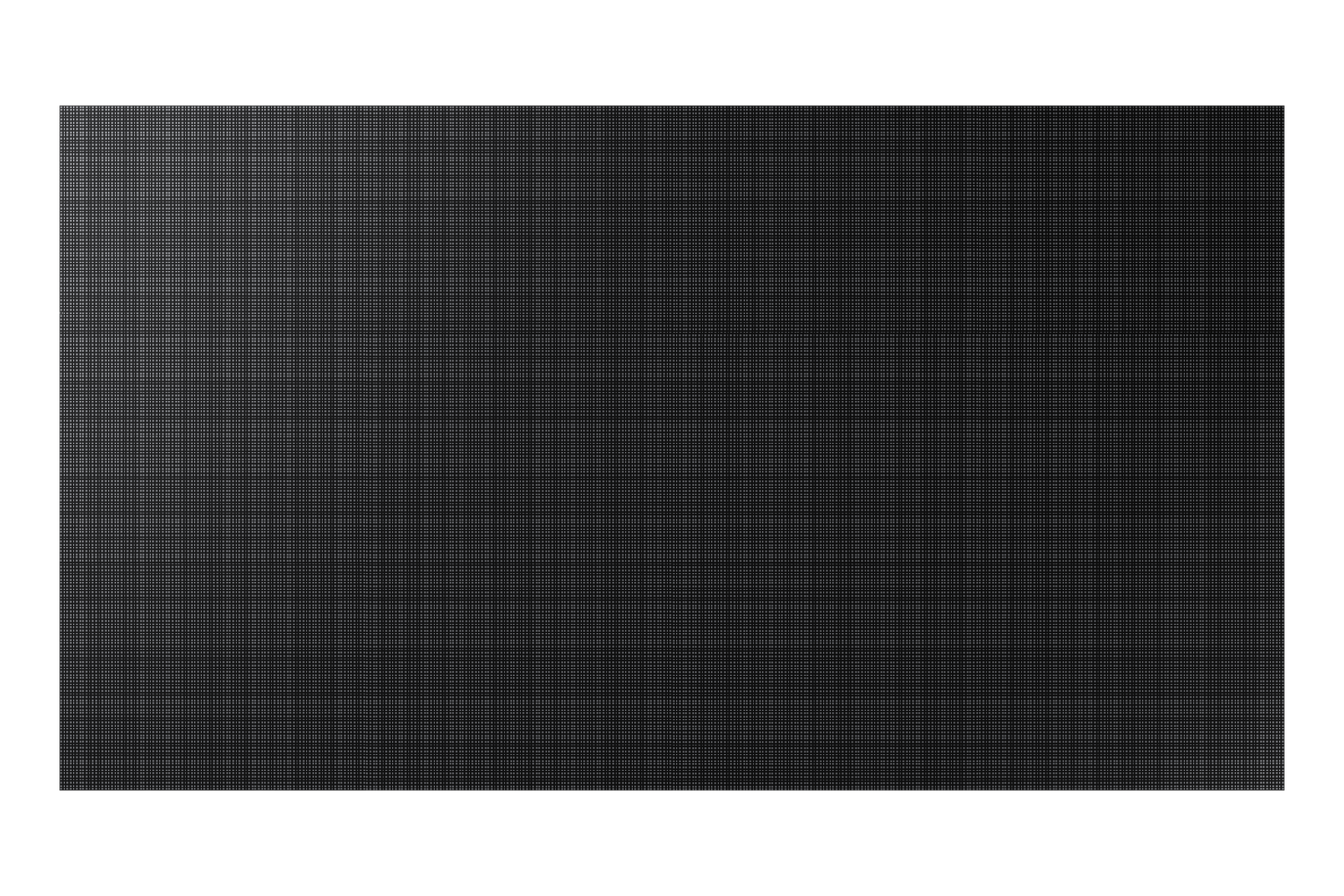

Samsung IEA Fine Pitch Indoor LED Cabinet – P4.0

Product Overview

The Samsung IE040A is a P4.0 fine-pitch indoor direct view LED cabinet from the IEA series, designed to deliver large-format display solutions at a price point accessible to mid-market commercial installations. With a 4.0mm pixel pitch, it is well-suited for viewing distances of 4 meters and beyond, covering applications such as conference rooms, lobbies, and retail environments. The modular cabinet format enables integrators to build display walls of virtually any size without the constraints of fixed-panel aspect ratios. This unit is offered at a discount from list price, making it a cost-effective entry point for direct view LED infrastructure.

Product Description

The IE040A cabinet uses a 4.0mm pixel pitch SMD LED configuration appropriate for spaces where viewers are positioned at moderate distances from the screen. At 4 meters of viewing distance, the display produces a smooth, continuous image free of visible pixel structure. The cabinet construction follows Samsung's IEA series design language, emphasizing straightforward installation, reliable long-term operation, and compatibility with standard LED controller hardware. Each cabinet is a self-contained module that tiles with adjacent units to form larger displays, with mechanical connectors ensuring accurate alignment and minimal gap between modules. The product is powered by an internal power supply and accepts standard signal inputs through compatible LED processor systems. Color uniformity across the cabinet array is maintained through factory calibration, and Samsung supports field recalibration tools for large installations that require periodic uniformity correction. The IE040A is appropriate for applications including conference room displays, retail digital signage, lobby feature walls, and education environments. Installation is straightforward for experienced LED technicians, with front-loading LED modules simplifying on-site assembly and future maintenance. The product is sold per cabinet, and multiple units are required to build a complete display system.

Key Features

• P4.0 Pixel Pitch — Optimized for viewing distances starting at approximately 4 meters, suitable for most commercial room sizes.
• Modular Cabinet Design — Tile multiple cabinets to create custom display sizes and aspect ratios.
• SMD LED Configuration — Reliable surface-mount LED technology with consistent color output across the panel.
• Factory Color Calibration — Uniformity calibration ensures consistent brightness and color matching between cabinets.
• Standard Signal Compatibility — Works with industry-standard LED video processors and signal distribution systems.
• Front-Load LED Modules — Simplified on-site assembly and module replacement without rear access.

Typical Applications

• Corporate conference rooms and meeting spaces
• Retail digital signage and product showcase walls
• Hotel and hospitality lobby displays
• Educational institutions and lecture halls
• House of worship main screens

Technical Specifications

Frequently Asked Questions

How many IE040A cabinets do I need for a specific screen size?

The number of cabinets required depends on the individual cabinet dimensions and your target display resolution. Consult the Samsung IE040A datasheet for cabinet pixel counts and physical dimensions, then divide your target display width and height by the cabinet dimensions to calculate the grid required. Your LED system integrator or Samsung's pre-sales team can assist with layout planning.

What LED video processor is compatible with the IE040A?

The IE040A is compatible with standard industry LED video processors from manufacturers including Novastar, Brompton, and Megapixel VR, as well as Samsung's own controller solutions. Confirm signal input requirements with your processor supplier before finalizing the system design.
