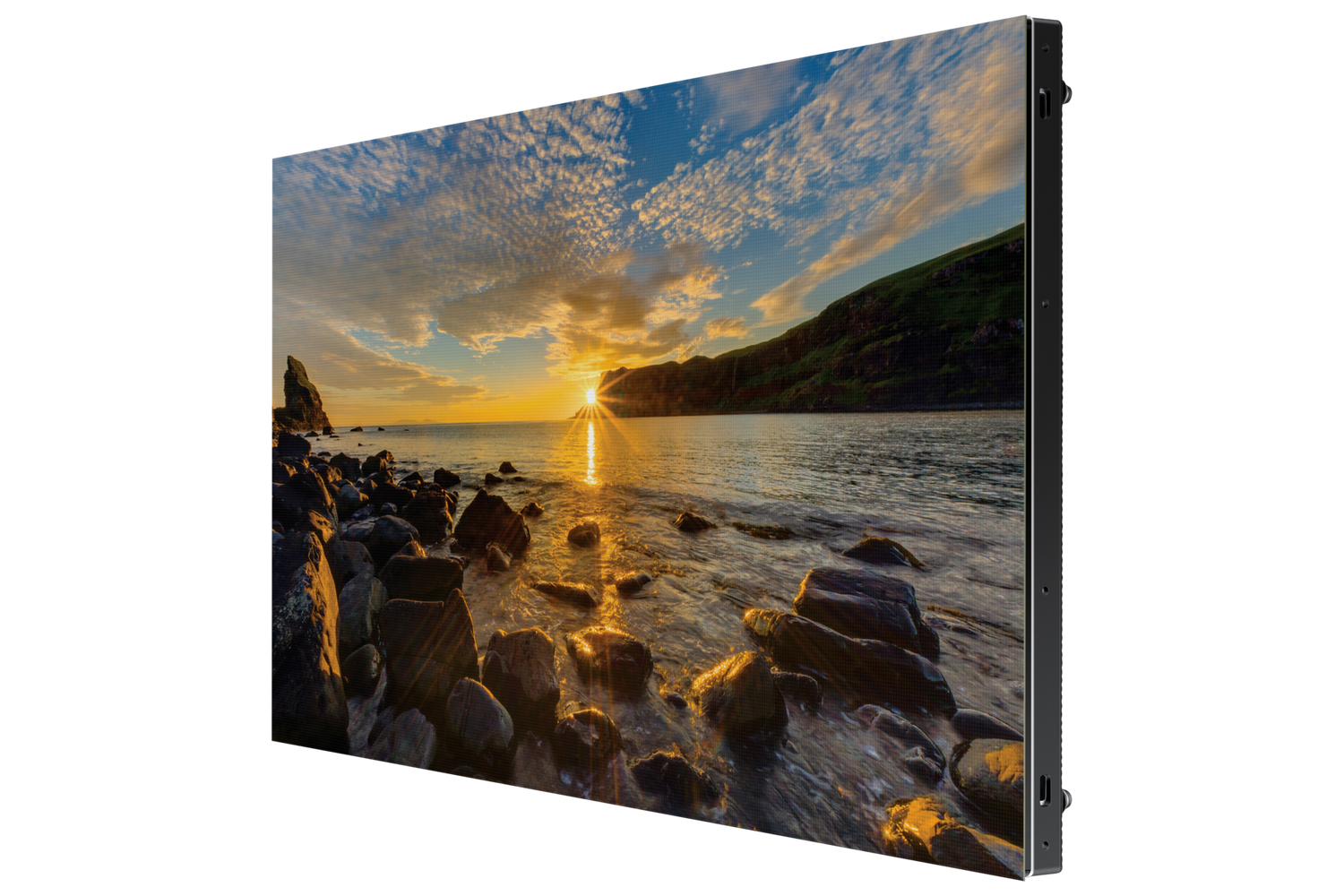

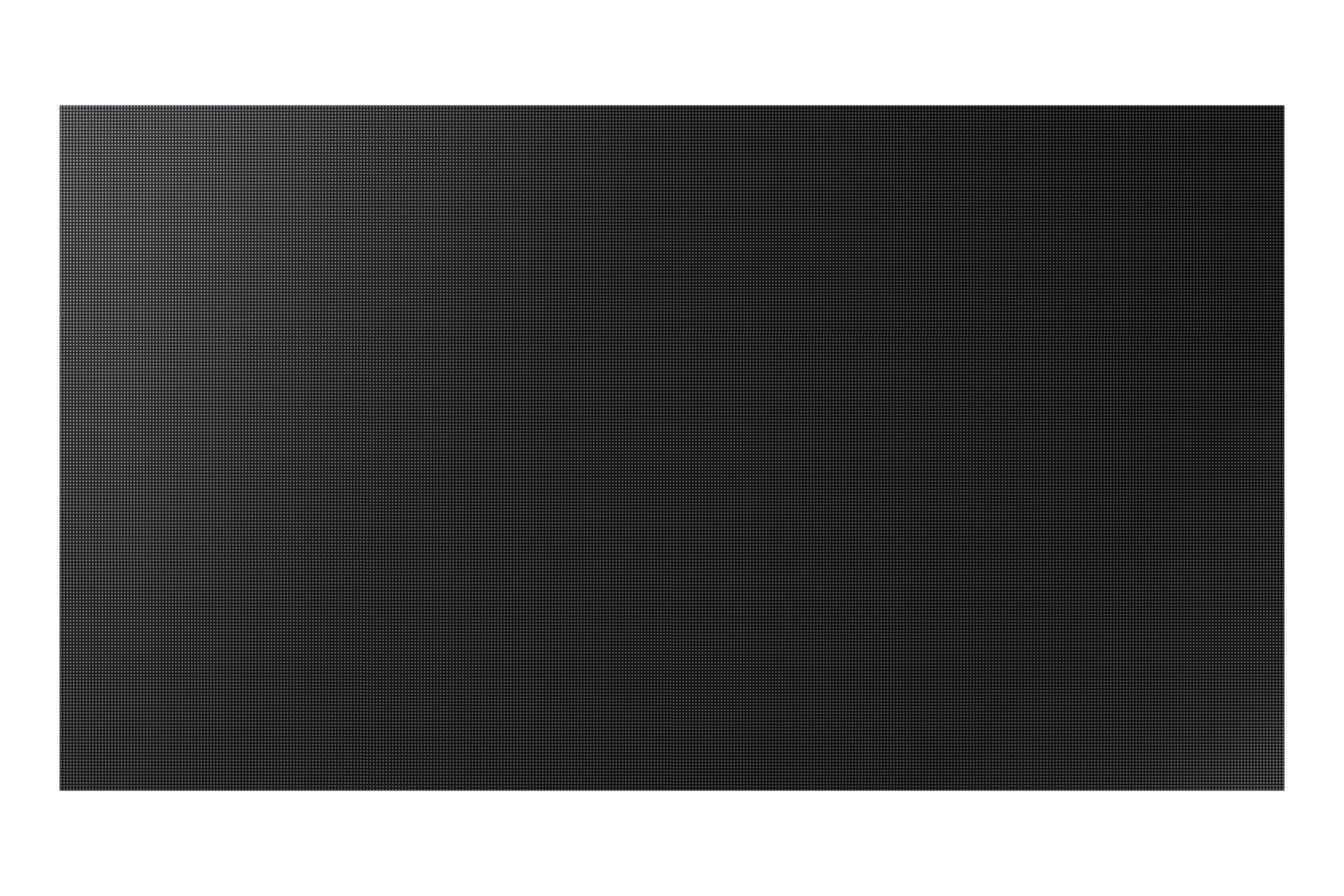

Samsung IE015A-F New IEA-F L-Type LED Cabinet P1.5

Product Overview

The Samsung IE015A-F is a fine-pitch P1.5 direct-view LED cabinet in the IEA-F series, built for high-resolution indoor video wall applications. The L-type cabinet format is designed for corner and angled installations that require precise alignment without structural compromise. At 1.5mm pixel pitch, this cabinet delivers broadcast-quality imagery suited to control rooms, boardrooms, and premium corporate environments. It is engineered for 24/7 operation and integrates with Samsung's MagicInfo content management platform.

Product Description

The IE015A-F represents Samsung's IEA-F fine-pitch LED cabinet line, targeting applications where pixel density and color accuracy are critical. A 1.5mm pixel pitch produces sharp, detailed imagery at close viewing distances — typically 1.5 to 4 meters — making it appropriate for spaces where occupants are seated or standing near the display. The L-type cabinet geometry is specifically engineered for corner installations, enabling continuous video wall surfaces that wrap around architectural corners without visible panel breaks or misalignment. This is particularly valuable in control rooms, executive briefing centers, and large-format boardroom installations where presentation continuity matters. The cabinet uses Samsung's LED bonding and calibration technology to maintain consistent luminance and color temperature across all tiles in a multi-panel configuration. The structure supports front-access servicing, which is important in wall-mounted or built-in installations where rear access is not available. Power and signal distribution are managed through internal cabinet interconnects, minimizing visible cabling in finished installations. The IE015A-F is rated for continuous 24/7 operation and supports integration with Samsung MagicInfo for centralized content scheduling, monitoring, and remote management across distributed installations.

Key Features

• P1.5 fine pixel pitch — delivers high pixel density for close-range viewing in premium indoor environments.
• L-type cabinet format — engineered for seamless corner video wall configurations.
• 24/7 continuous operation — rated for always-on mission-critical display environments.
• Front-access serviceability — simplifies maintenance in wall-recessed or built-in installations.
• Samsung MagicInfo compatible — supports enterprise content management, scheduling, and remote monitoring.
• Consistent multi-tile calibration — factory calibration ensures brightness and color uniformity across all panels in an array.

Typical Applications

• Network operations and security control rooms
• Executive boardrooms and briefing centers
• Corporate lobby and reception video walls
• Broadcast studios and production environments
• University and government command centers
• High-end retail flagship displays

Technical Specifications

Frequently Asked Questions

What is the recommended minimum viewing distance for P1.5 pixel pitch?

A general industry guideline for LED pixel pitch is that the minimum comfortable viewing distance in meters roughly equals the pixel pitch in millimeters. For P1.5, this suggests approximately 1.5 meters as the minimum, though many installations are designed for 2–4 meter viewing distances in boardroom and control room seating configurations.

Can the L-type cabinet be used in a flat video wall installation?

The L-type cabinet is specifically designed for corner configurations. For flat or curved video walls, Samsung offers standard flat cabinet variants in the IEA-F series. Consult your AV integrator or Samsung representative to select the appropriate cabinet type for your specific installation geometry.

Does this cabinet support front-access servicing?

Yes. The IE015A-F is designed for front-access maintenance, allowing LED module replacement and servicing without requiring access to the rear of the cabinet. This is a key consideration for installations where the cabinet is wall-mounted, recessed, or otherwise inaccessible from the back.
