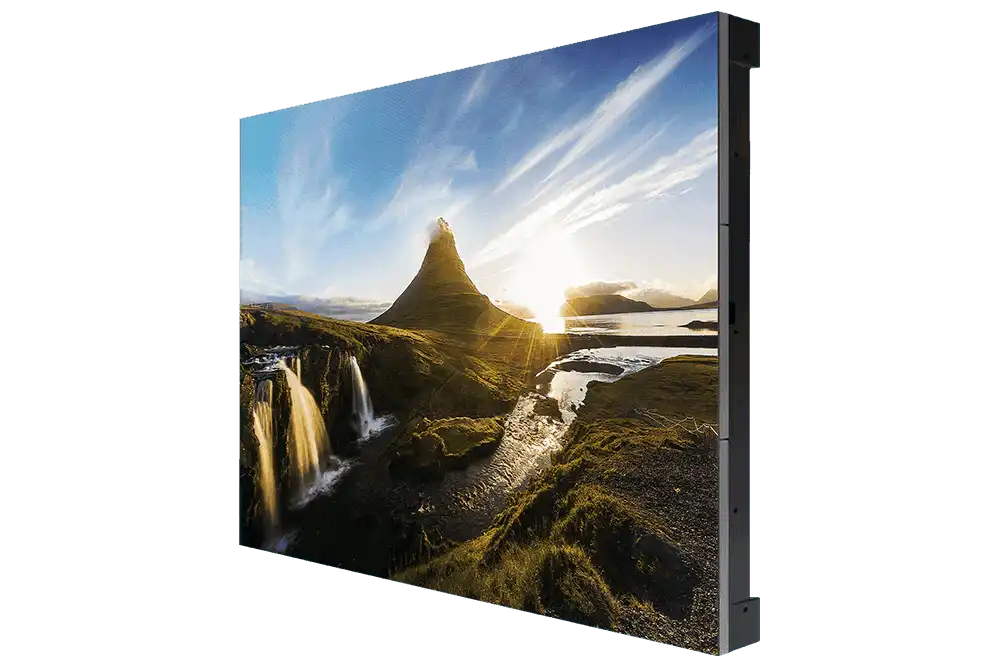

1.2 / industry-best video processing technologies with High Dynamic Range (HDR) picture refinement.
- LED HDR picture refinement technology
- Detailed, true-to-life color presentation
- Convenient installation and operation
Bright and Clear LED Expression
The IF Series’ integrated HDR adaptation optimizes gradation within individual scenes for a consistent, shine-free presentation. For added detail and quality, the displays’ complementary dynamic peaking elevates peak brightness to levels nearly two times higher than the standard LED maximum.Accurate Color in Low Brightness Arenas
Conventional LED displays struggle to present red, green and blue color hues accurately in low grayscale settings. The IF Series overcomes these challenges through a unique algorithm that maintains R/G/B gradation and delivers precise, detail-rich hues in low-brightness indoor environments.
| Physical
Parameter |
|
|
|
| Physical Parameter
data |
| Pixel
Pitch |
1.26 mm |
| Pixel Configuration |
1
red, 1 green, 1 blue |
| Configuration (LxH, per cabinet) |
640x360
pixels |
| Diode Type |
Surface
Mount Device (SMD) |
| Dimensions (㎜, LxHxD, per cabinet) |
806.4x453.6x76.7mm |
| Dimensions (inch, inchxD, per cabinet) |
36.4
inch x 3.02 inch |
| Weight (per cabinet/per ㎡) |
11.8Kg
/ 32.3Kg |
|
Optical
Parameter |
|
|
|
| Optical Parameter
data |
| Brightness(1)
|
1,200 nit / 600
nit |
| Contrast Ratio (Peak/Max)(1)
|
8,000:1
/ 4,000:1 |
| Viewing angle - Horizontal |
160° |
| Viewing angle - Vertical |
160° |
| Bit Depth |
16bit
per Color |
| Color Temperature - Default |
6,500K |
| Color temperature - Adjustable |
2,800
~ 10,000K (use S/BOX) |
|
Electrical
Parameter |
|
|
|
| Electrical
Parameter |
| Video
Rate |
50/60 Hz |
| Cabinet - Input Power Range |
100~240
VAC, 50/60 Hz |
| Power consumption - Max |
711
(W/㎡) / 260 (W/Cabinet) |
| Power consumption - Typical |
237
(W/㎡) / 87 (W/Cabinet) |
| Heat Generation - Max(BTU/SF) |
225
BTU/SF per hour |
| Refresh rate |
3,840
Hz |
|
Operation
Conditions |
|
|
|
| Operation
Conditions data |
| Working
Temperature / Humidity |
0°C~40°C /
10~80%RH |
| Storage Temperature / Humidity |
-20°C~45°C
/ 5~95%RH |
| IP Rating |
IP20 |
| LED Lifetime |
100,000
hours to half brightness |
|
Certification |
|
|
|
| Certification data |
| Certification |
EMC Class B,
Safety 60950-1 |
|
Service |
|
|
|
| Service data |
| Service |
Front(3) and
Parts Rear(4) |
|
Package |
|
|
|
| Package data |
| Box
Dimension (WxDxH) |
943 x 606 x 167 |
| Box Volume (m3) |
0.095 |
| Package Weight (kg, per cabinet) |
16.5kg |
|
Disclaimer |
|
|
|
| Disclaimer data |
| Disclaimer(1)
|
Peak Value
according to IDMS (Information Display Measurement Standard) |
| Disclaimer(3)
|
Front
Service : IFJ and IF-D offer Front Service to Power Supply/Main Board on a
cabinet level |
| Disclaimer(4)
|
Parts
Rear Service : IFJ and IF-D's Power Supply/Main Board can be accessed from
the rear |
