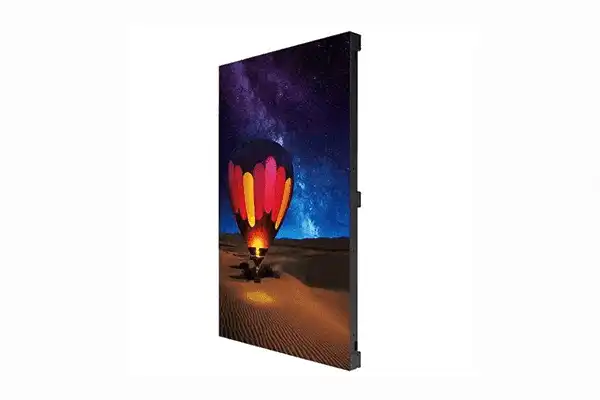

Samsung IF060H-D 6.0 Pixel Pitch Indoor Direct View LED Cabinet

Product Overview

The Samsung IF060H-D is a 6.0mm pixel pitch indoor direct view LED cabinet built for large-format commercial video walls viewed from greater distances, such as lobbies, atriums, auditoriums, and broadcast environments. This IF-D Series dvLED cabinet pairs HDR-grade picture quality with full-front serviceability, giving AV integrators a cost-efficient way to scale indoor LED signage. Each cabinet measures 480 x 720mm and tiles into seamless walls of nearly any size and shape. With Dynamic Peaking brightness and 16-bit per color depth, the IF060H-D delivers bright, consistent imagery across the full canvas.

Product Description

Engineered for commercial-grade indoor deployment, the IF060H-D direct view LED cabinet brings Samsung's IF-D Series imaging to applications where viewers sit farther from the wall and a wider 6mm pitch is the economical choice. As shown in the product imagery, the cabinet uses Surface Mount Device (SMD) LEDs across an 80 x 120 pixel grid and applies an external black mask to close inter-pixel gaps, reinforcing uniform contrast under dynamic lighting. Scene Adaptive HDR with inverse tone mapping optimizes gradation scene by scene, while in-depth color management preserves accurate red, green and blue reproduction and prevents skin-tone oversaturation. Full-front access lets technicians service modules and rear components without rear catwalk clearance, supporting tight wall-mounted installations close to neighboring surfaces. The cabinet supports convex and concave curved configurations up to 6,000R as well as inclined and ceiling mounting, expanding video wall design options for AV system designers. Paired with a Samsung S-Box signal processor and the MagicINFO content platform, the IF060H-D streamlines UHD content delivery and remote management across an entire fine pitch LED signage network.

Key Features

• 6.0mm Pixel Pitch — The 6mm pitch suits longer indoor viewing distances typical of atriums, auditoriums, and large lobbies where audiences sit well back from the wall.
• Dynamic Peaking Brightness — Peak brightness of 1,800 nit (1,200 nit maximum sustained) keeps content legible against ambient and natural lighting interference.
• 16-Bit Per Color Depth — Deep color processing with a 7,500:1 peak contrast ratio renders smooth gradients and true-to-life skin tones without oversaturation.
• External Black Mask — A black mask module closes gaps in the LED framework to eliminate glittering and maintain uniform contrast across the video wall.
• Full-Front Serviceability — Front access to critical components allows clean, close-to-wall installations and fast maintenance without rear clearance.
• Curved and Ceiling Installation — Convex and concave configurations up to 6,000R plus inclined and ceiling mounting expand creative deployment possibilities.
• S-Box and MagicINFO Integration — Centralized UHD signal distribution and remote content scheduling, monitoring, and troubleshooting across the entire signage network.
• 100,000-Hour LED Lifetime — Rated to half brightness at 100,000 hours for long-term commercial operation with low total cost of ownership.

Typical Applications

• Corporate lobby and atrium video walls
• Auditorium and all-hands room main-stage screens
• Broadcast studio set backdrops
• Government and command space information walls
• Conference room and large commercial meeting space displays
• Multi-purpose room signage

Technical Specifications

Competitor Comparison

Frequently Asked Questions

When should I choose 6mm pitch over a finer pitch?

A 6mm pitch like the IF060H-D is the economical choice when viewers sit farther from the wall, such as in atriums, auditoriums, and large lobbies. For closer viewing distances, a finer pitch such as the Samsung IF040H-D (4mm) resolves detail better at short range.

What signal processor does the IF060H-D require?

The IF060H-D pairs with a Samsung S-Box signal processor, which distributes UHD content across multiple cabinets without external splitters. The S-Box also enables the adjustable 2,800 - 10,000K color temperature range and integrates with MagicINFO for content scheduling.

How many cabinets do I need for my video wall?

Each cabinet is 480 x 720mm with an 80 x 120 pixel resolution. Your integrator calculates cabinet count by dividing the target wall dimensions by the cabinet size; cabinets tile in both portrait and landscape orientations. Contact our team for a layout calculation.

Can the IF060H-D be installed on a curved or ceiling surface?

Yes. The IF060H-D supports convex and concave curved configurations up to 6,000R and is one of the IF-D models rated for inclined and ceiling installation, supporting creative architectural integration.

Is this cabinet suitable for outdoor use?

No. The IF060H-D carries an IP20 indoor rating. For outdoor or direct-sunlight applications, select an outdoor-rated Samsung LED series instead.

What warranty and support are available?

Samsung commercial direct view LED products carry a manufacturer commercial warranty. Creation Networks provides pre-sale system design support and post-sale assistance. Browse our full Samsung commercial display collection or contact our AV team for project quoting.
