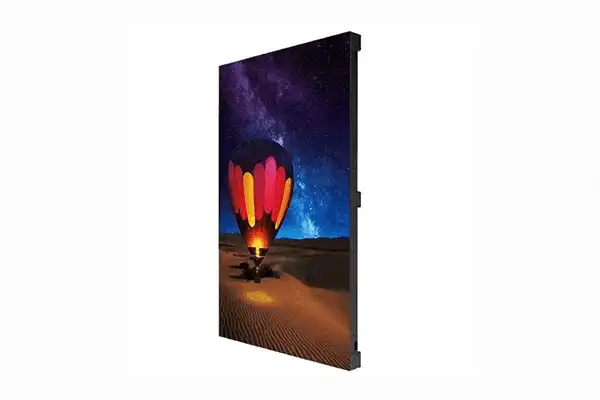

Samsung IF025H-D 2.5 Pixel Pitch Indoor Direct View LED Cabinet

Product Overview

The Samsung IF025H-D is a 2.5mm pixel pitch indoor direct view LED cabinet for building large-format, seamless video walls in corporate, broadcast, and retail environments. As a fine-pitch direct view LED module, it tiles with identical cabinets to create displays of virtually any size and aspect ratio without bezels. The SMD diode construction and 2.5mm pitch deliver close-viewing clarity for lobbies, control rooms, and broadcast sets. Each cabinet provides a 192 x 288 pixel building block for scalable commercial deployment.

Product Description

The IF025H-D is a single direct view LED cabinet, the modular unit used to assemble fine-pitch indoor LED video walls. Each cabinet carries a 2.5mm pixel pitch with surface-mount (SMD) diodes arranged in a 192 x 288 pixel configuration, and cabinets connect edge to edge to form a continuous, bezel-free image. As the product imagery indicates, the slim cabinet depth supports flush wall installation in lobbies and broadcast studios where a clean profile matters. With a default 6,500K color temperature adjustable from 2,800K to 10,000K and 16-bit per color processing, the wall holds consistent color across a large canvas. The 160-degree horizontal viewing angle keeps the image readable from off-axis seating in auditoriums and control rooms. Because the display is fully modular, integrators specify total resolution and dimensions by cabinet count, then drive the wall with a Samsung LED signal box. This cabinet pairs with other modules and signage in our Samsung display collection. The IF025H-D suits permanent fine-pitch installations where seamless scale and color accuracy are required.

Key Features

• 2.5mm Pixel Pitch — The fine 2.5mm pitch delivers sharp imagery for close-viewing applications such as lobbies, control rooms, and broadcast sets.
• Modular Cabinet Design — Identical cabinets tile edge to edge to build a seamless, bezel-free video wall of virtually any size and aspect ratio.
• SMD Diode Construction — Surface-mount device LEDs provide a wide viewing angle and consistent color across the assembled wall.
• 192 x 288 Pixel Configuration — Each cabinet contributes a fixed 192 x 288 pixel block, letting integrators calculate total wall resolution by cabinet count.
• Adjustable Color Temperature — A default 6,500K white point adjusts from 2,800K to 10,000K to match room lighting and content requirements.
• 16-Bit Color Processing — 16-bit per color processing supports smooth gradients and accurate color reproduction across large displays.
• 160-Degree Viewing Angle — A wide 160-degree horizontal viewing angle keeps content readable from off-axis seating positions.
• Indoor Direct View LED — The direct view design eliminates the bezels and brightness limits of tiled LCD video walls for true seamless scale.

Typical Applications

• Corporate lobby and reception video walls
• Broadcast studio backdrops and sets
• Control room and command center displays
• Auditorium and all-hands room large-format screens
• Government and commercial meeting space signage

Technical Specifications

Frequently Asked Questions

How do I determine the total resolution of a video wall built from these cabinets?

Each IF025H-D cabinet contributes 192 x 288 pixels. Multiply by the number of cabinets across and down in your layout to calculate the assembled wall's total horizontal and vertical resolution.

What is required to drive the assembled LED wall?

A direct view LED video wall requires a compatible Samsung LED signal box and power infrastructure in addition to the cabinets. Our team can specify the correct controller and accessories for your layout.

Is the 2.5mm pitch appropriate for close viewing?

The 2.5mm fine pitch is well suited to indoor applications where viewers stand relatively close, such as lobbies, broadcast sets, and control rooms, where larger pitches would show visible pixel structure.

Can these cabinets build a custom-size display?

Yes. Because the design is fully modular, cabinets tile edge to edge to create seamless displays of virtually any size and aspect ratio. Contact our team through creationnetworks.net for layout design and project pricing.
