Samsung WM85R 85" Flip All in one Advanced Digital Whiteboard

Product Overview

The Samsung WM85R is an 85-inch 4K UHD interactive display from the Samsung Flip 2 line, built for collaborative meeting and learning environments. This digital whiteboard combines a 20-point touchscreen with built-in annotation, screen mirroring, and an embedded browser to support active participation in conference rooms and classrooms. As an all-in-one interactive display, it requires no external PC to start writing, though an OPS slot is available for Windows expansion. It is a practical collaboration tool for organizations standardizing on commercial-grade interactive displays.

Product Description

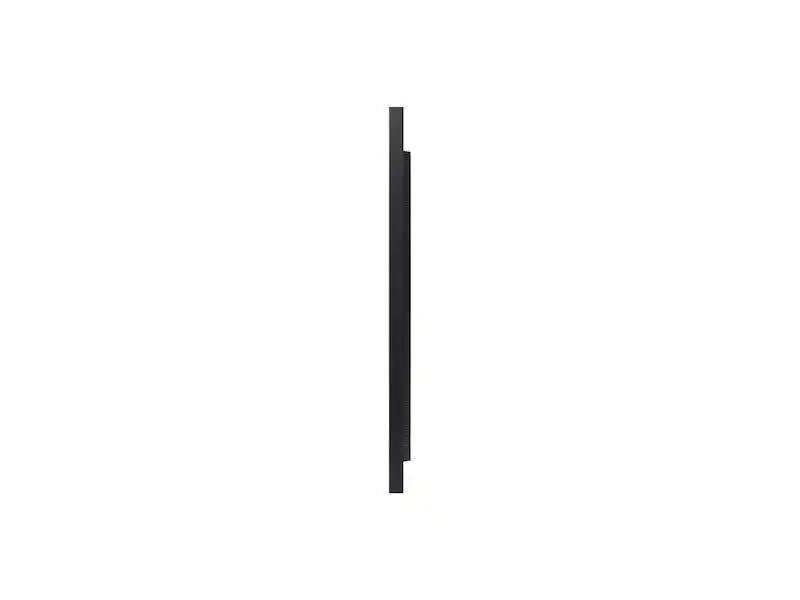

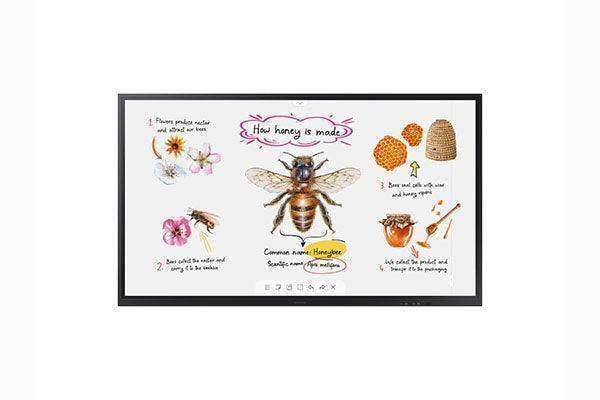

As shown in the product imagery, the WM85R presents a large-format landscape panel with a slim profile designed for wall mounting or rolling-stand deployment in conference rooms, huddle spaces, and training rooms. The 85-inch LCD panel delivers native 3840 x 2160 4K UHD resolution with a 6 ms response time and infrared touch supporting up to 20 simultaneous touch points for a natural pen-to-paper writing feel. Connectivity includes two HDMI inputs, DisplayPort, an HDMI output for screen sharing, RJ45 Ethernet, built-in Wi-Fi, and multiple USB ports, giving AV integrators flexible options for system integration. The OPS expansion slot accepts an optional slot-in PC to run Windows, transforming the unit into a full computing endpoint. Running Tizen 5.0 with built-in collaboration software, the WM85R enables annotation, content import, and wireless sharing without dedicated host hardware. For comparable collaboration and signage hardware, explore the full Samsung collection at Creation Networks.

Key Features

• 85-Inch 4K UHD Panel — The native 3840 x 2160 LCD panel provides sharp text and detailed visuals for large-group viewing in conference rooms and classrooms.
• 20-Point Infrared Touch — Support for up to 20 simultaneous touch points lets multiple users write and annotate at once for active group collaboration.
• 6 ms Response Time — The fast panel response delivers a smooth, low-latency writing experience that closely mimics pen on paper.
• OPS Expansion Slot — The built-in OPS slot accepts an optional slot-in PC to run Windows, converting the display into a full computing workstation.
• Integrated Collaboration Tools — Tizen 5.0 with built-in annotation, embedded browser, and screen mirroring allows content creation and sharing without an external computer.
• Flexible Connectivity — Two HDMI inputs, DisplayPort, an HDMI output, RJ45 Ethernet, built-in Wi-Fi, and USB ports support straightforward AV system integration.
• Dual 10W Speakers — Built-in 2-channel 10W speakers provide audio playback for presentations and multimedia content without additional hardware.
• 3-Year Commercial Warranty — Samsung backs the WM85R with a 3-year limited manufacturer warranty for reliable commercial deployment.

Typical Applications

• Conference rooms and boardrooms for interactive presentations
• Huddle rooms and commercial meeting spaces for small-group collaboration
• Training rooms and education classrooms for active learning
• All-hands rooms and multi-purpose rooms requiring shared annotation

Technical Specifications

Frequently Asked Questions

Does the WM85R require an external PC to operate?

No. The WM85R runs Tizen 5.0 with built-in collaboration tools, so users can write, annotate, and share content out of the box. An optional OPS slot-in PC can be added for full Windows functionality.

How many simultaneous touch points does it support?

The display uses infrared touch technology supporting up to 20 simultaneous touch points, enabling several users to write or annotate at the same time.

What are the mounting requirements?

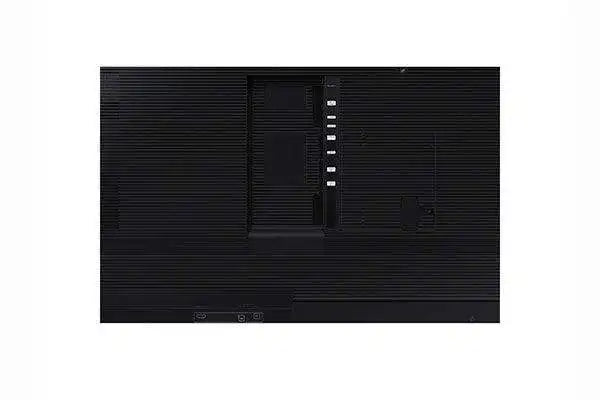

The WM85R uses a 600 x 400 mm VESA pattern and weighs 164.24 lb (74.5 kg). Wall mounts and mobile stands must be rated for that weight; consult Creation Networks for compatible mounting hardware.

How does it integrate with conference room AV systems?

It offers two HDMI inputs, DisplayPort, an HDMI output for screen sharing, RJ45 Ethernet, and built-in Wi-Fi, allowing integration with room control systems, video conferencing codecs, and network management.

What warranty is included?

Samsung provides a 3-year limited manufacturer warranty. Contact Creation Networks for warranty registration and commercial support details.
