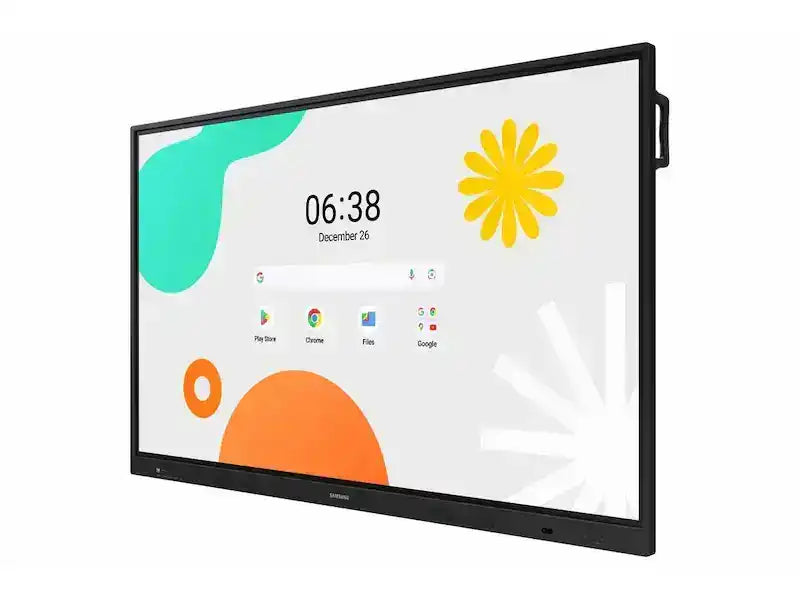

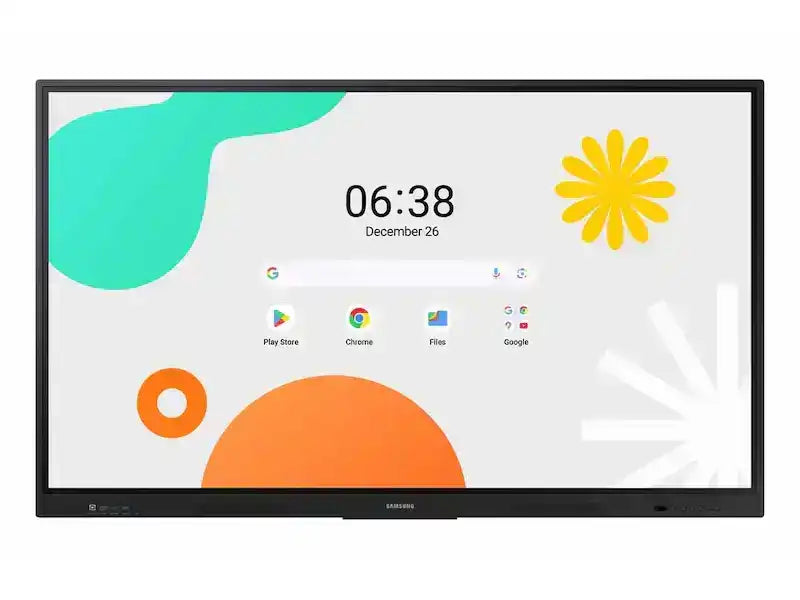

Samsung WA75F 75" Interactive Display WAF Series

Samsung WA75F – 75" Interactive Display with 40-Point IR Touch for Collaboration

Product Overview

The Samsung WA75F is a 75-inch interactive flat panel display with 40-point infrared touchscreen, designed for conference rooms, training rooms, and collaborative commercial environments requiring large-format touch-enabled presentation and whiteboarding. Built on a 4K UHD direct LED panel with anti-glare finish, it provides precise multi-touch interaction for up to 40 simultaneous touch points. Wi-Fi 6, RS-232c serial control, an OPS expansion slot, and USB-C with DisplayPort Alt Mode support standard commercial AV installation and control system integration requirements.

Product Description

The WA75F delivers 75-inch interactive display capability at 3840 x 2160 resolution with a direct LED backlight system and 400-nit brightness for use in ambient-light commercial environments. The 40-point infrared touch system supports simultaneous multi-user interaction for collaborative whiteboarding, annotation over presentations, and touch-enabled application control. Anti-glare panel coating reduces reflections in mixed-lighting meeting environments. USB-C with DisplayPort Alt Mode, touchscreen control passthrough, and audio enables single-cable laptop connectivity for conference room users. Two USB-A 2.0 and two USB-A 3.0 ports provide peripheral connectivity for touch input devices and media storage. Wi-Fi 6 (802.11ax) delivers high-throughput wireless connectivity for wireless screen sharing and networked content delivery. RS-232c via DB-9 serial connector enables integration with Crestron, AMX, Extron, and other control system platforms. An OPS (Open Pluggable Specification) expansion slot supports optional compute modules for built-in PC functionality. Picture-in-Picture (PIP) and Picture-by-Picture (PBP) support enables simultaneous multi-source display layouts.

Key Features

• 40-Point Infrared Touchscreen — Supports up to 40 simultaneous touch inputs for multi-user collaborative whiteboarding and presentation annotation.
• 75" 4K UHD Direct LED Panel — 3840 x 2160 resolution with direct LED backlighting and 400-nit brightness for clear visibility in commercial environments.
• Anti-Glare Finish — Reduces ambient light reflections for consistent legibility in conference rooms and training spaces with mixed lighting.
• USB-C with DP Alt Mode — Single-cable connection provides video, touch control passthrough, and audio from a connected laptop or PC.
• Wi-Fi 6 (802.11ax) — High-throughput wireless connectivity for screen sharing and networked content delivery in dense commercial wireless environments.
• RS-232c Serial Control — DB-9 serial port for integration with Crestron, AMX, Extron, and professional AV control systems.
• OPS Expansion Slot — Open Pluggable Specification slot for optional PC compute modules, enabling built-in Windows operation without external PC hardware.
• PIP / PBP Multi-Source Support — Displays multiple source inputs simultaneously in split layouts for side-by-side content comparison and collaboration.
• Ambient Light Sensor — Automatically adjusts display brightness based on room ambient light conditions for optimized visibility.

Typical Applications

• Conference room interactive presentation display
• Training room touch-enabled collaboration screen
• Boardroom interactive whiteboard replacement
• Multi-purpose and all-hands room collaborative display
• Education and government collaborative meeting space

Technical Specifications

Competitor Comparison

The WA75F supports 40-point touch input, Wi-Fi 6, and an OPS expansion slot with USB-C single-cable connectivity — features exceeding the Google Jamboard's 20-point touch and limited expansion — making it a more complete interactive display solution for commercial AV installations requiring control system integration and flexible compute options.

Frequently Asked Questions

Does the WA75F include built-in whiteboarding software?

The WA75F includes Samsung's built-in collaboration software. For enterprise whiteboarding platforms such as Microsoft Whiteboard or Google Jamboard alternatives, the OPS slot accommodates a Windows PC module for full software compatibility.

Can the WA75F be controlled by a Crestron or AMX system?

Yes. The RS-232c DB-9 serial port enables direct integration with Crestron, AMX, Extron, and other professional AV control processors for room automation.

What is the OPS expansion slot used for?

The OPS (Open Pluggable Specification) slot accepts optional compute modules that add a built-in Windows PC to the display, eliminating the need for an external computer for interactive applications.

Does USB-C single-cable connectivity include touch control?

Yes. The USB-C port with DisplayPort Alt Mode carries video, touchscreen control passthrough, and audio in a single cable from a connected laptop or PC.

Is the WA75F TAA compliant?

TAA compliance is not confirmed for the WA75F. For TAA-certified interactive displays, see Samsung's commercial display lineup at creationnetworks.net.
