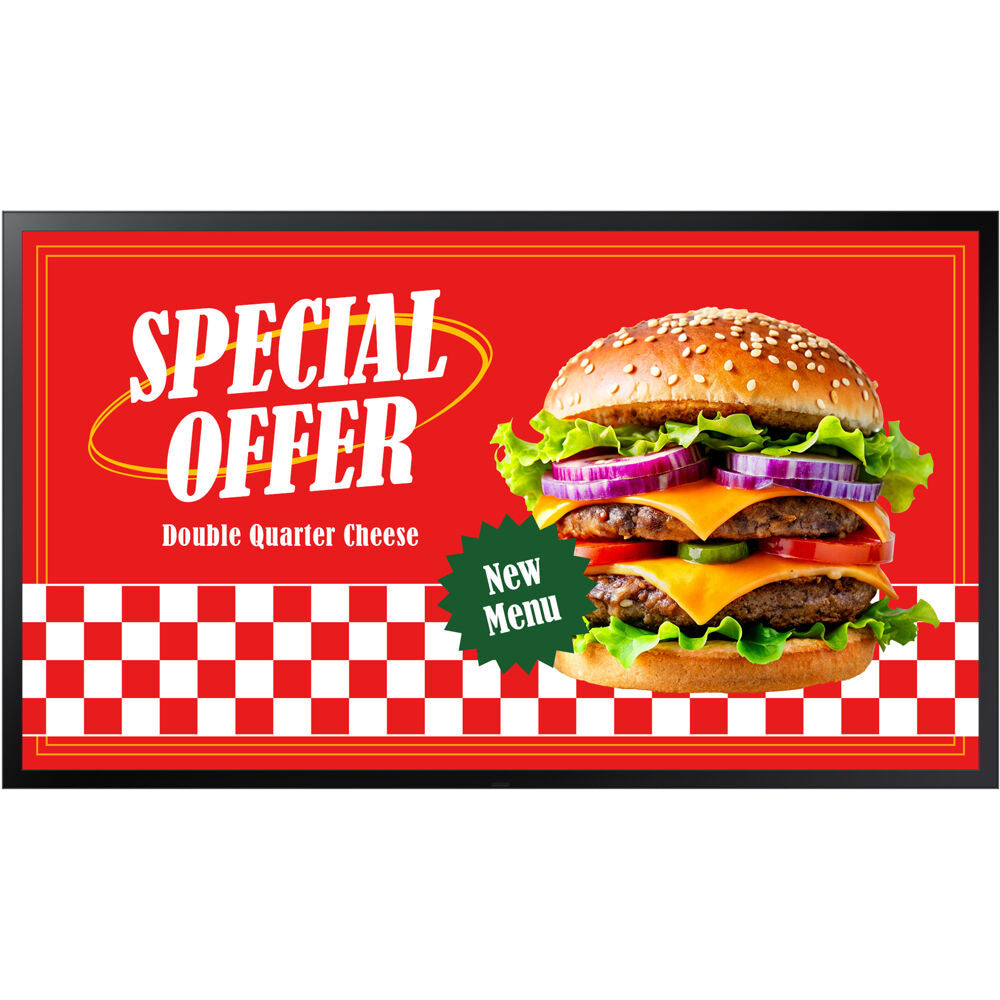

Samsung OH46DX – 46-Inch High-Brightness Outdoor Commercial Display
Samsung OH46DX – 46-Inch High-Brightness Outdoor Commercial Display is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Samsung OH46DX – 46-Inch High-Brightness Outdoor Commercial Display
Product Overview
The Samsung 46-inch OH46DX high-brightness outdoor commercial display delivers IP56-rated weather resistance, 3,000-nit peak brightness, and outdoor-rated construction for permanent outdoor digital signage installations including building exteriors, transit environments, stadiums, retail forecourts, and any outdoor commercial application requiring a managed display to operate in direct sunlight, rain, and variable temperature conditions around the clock.
Product Description
The OH46DX is engineered for the demanding conditions of permanent outdoor commercial signage where consumer and standard commercial displays cannot operate: direct sunlight, precipitation, humidity, temperature extremes, and continuous 24/7 operating schedules. At 3,000 nits, the OH46DX achieves outdoor daylight visibility in direct sunlight exposure — a brightness level approximately 10x that of standard indoor commercial displays and sufficient to render clear, legible content against direct afternoon sun in typical outdoor environments. The IP56 rating confirms dust and water protection appropriate for rain, spray, and high-pressure cleaning exposure in outdoor commercial applications. Wide operating temperature range supports installation in climates with both freezing winter temperatures and summer heat extremes without requiring supplemental heating or cooling infrastructure. Samsung's MagicINFO CMS integration enables centralized content scheduling, remote monitoring, and fleet management across multiple outdoor display installations from a single management console — essential for retail chain and transit network operators managing distributed outdoor display inventories. RS-232c and LAN control enable integration with Crestron, AMX, Extron, and commercial AV control systems for outdoor venue and campus automation. For 55-inch or 75-inch outdoor commercial display options, or the Samsung LST outdoor TV series for hospitality outdoor environments, see the Samsung outdoor display lineup at Creation Networks.
Key Features
- 3,000 Nit Outdoor Brightness — Direct-sunlight-visible luminance for permanent outdoor digital signage in full daylight exposure.
- IP56 Weather Rating — Dust and water protection for rain, spray, and outdoor ambient moisture in permanent outdoor installations.
- 24/7 Duty Cycle — Rated for continuous outdoor commercial operation in transit, retail, stadium, and outdoor venue environments.
- Wide Temperature Range — Operates in both freezing winter and high summer temperature extremes without supplemental HVAC.
- Samsung MagicINFO — Centralized content management, remote monitoring, and fleet management for distributed outdoor display networks.
- RS-232c and LAN Control — Hardware and IP control for Crestron, AMX, Extron, and commercial AV system integration.
- Commercial-Grade Enclosure — Ruggedized display construction for permanent outdoor installation in commercial environments.
Typical Applications
- Retail Forecourt Signage — Outdoor price signs, promotional displays, and digital menu boards at gas stations, drive-throughs, and retail exteriors.
- Transit Digital Signage — Bus shelter, transit station, and outdoor wayfinding display in public transit environments.
- Stadium/Venue Signage — Outdoor concourse, entry, and wayfinding displays for stadiums, arenas, and outdoor entertainment venues.
- Corporate Campus — Outdoor wayfinding, announcement, and directional displays at corporate campuses and multi-building facilities.
Technical Specifications
| Specification | Value |
|---|---|
| Model | OH46DX |
| Screen Size | 46 inches |
| Brightness | 3,000 nits |
| IP Rating | IP56 (dust and water protection) |
| Duty Cycle | 24/7 |
| CMS | Samsung MagicINFO |
| Control | RS-232c, LAN (IP) |
| Application | Permanent outdoor commercial digital signage |
Frequently Asked Questions
Does the OH46DX require a protective enclosure in addition to its IP56 rating?
The OH46DX is designed for direct outdoor installation without an additional protective enclosure. Its ruggedized construction, IP56 rating, and operating temperature range are specified for permanent outdoor commercial mounting. Confirm specific installation site conditions (wind load, mounting height, vandal risk) with Creation Networks before finalizing installation hardware specifications.
What content management options are available?
The OH46DX supports Samsung MagicINFO for centralized content scheduling, remote monitoring, and fleet management. Compatible third-party outdoor CMS solutions may also be appropriate. Contact Creation Networks for CMS recommendations based on your specific outdoor signage network requirements.
What maintenance is required for outdoor LED commercial displays?
Outdoor commercial displays require periodic inspection of mounts, cable connections, and ventilation paths. Samsung provides commercial support for OHD series displays. Contact Creation Networks for maintenance planning and Samsung commercial support options.
What warranty does Samsung provide for the OH46DX?
Samsung provides commercial warranty coverage on outdoor display products. Contact Creation Networks for current warranty terms, extended service options, and Samsung ProCare commercial support agreements for the OH series.
