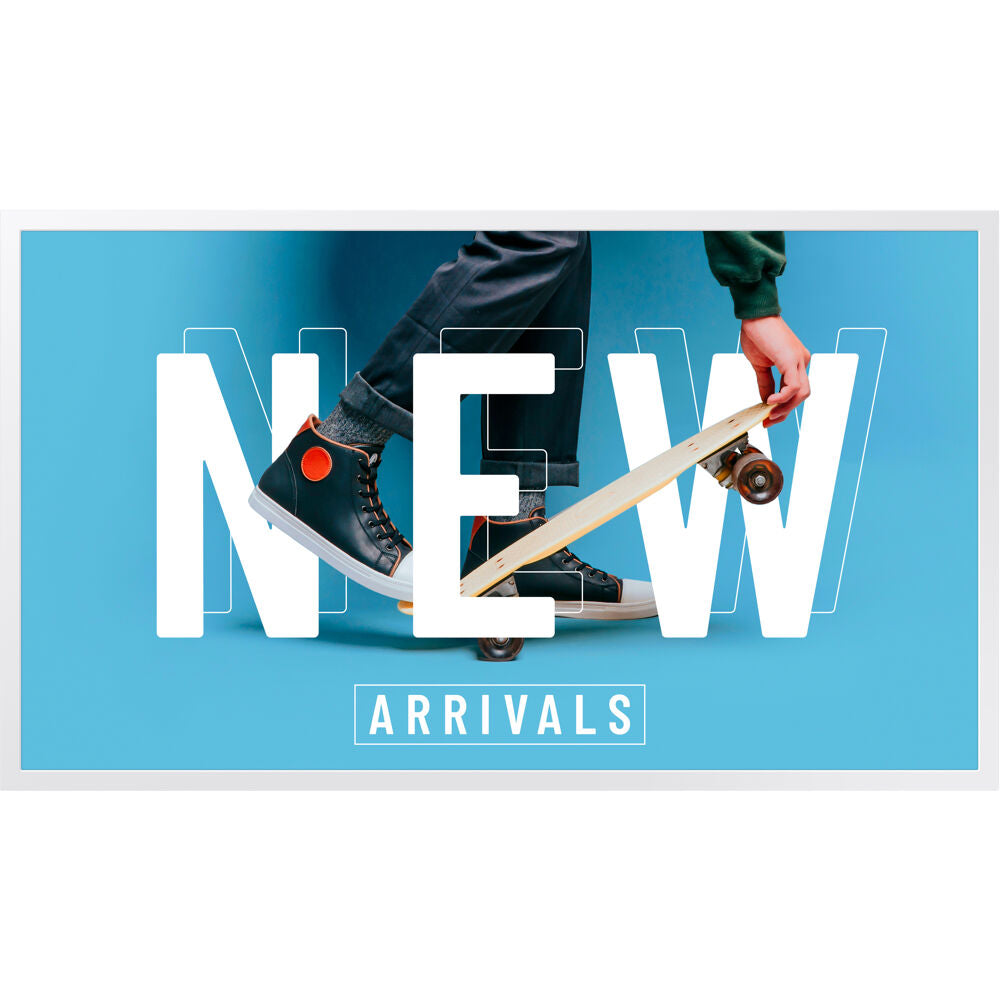

Samsung 32" Color E-Paper Display – USB-C Battery 500-Day Image Retention

Product Overview

The Samsung EM32DX is a 32-inch color e-paper display engineered for low-power commercial signage in environments where continuous AC power is impractical or unavailable. Using an advanced color imaging algorithm on an electrophoretic display panel, the EM32DX renders static and semi-static content — wayfinding, room signage, pricing, and informational boards — with a single charge sustaining image hold for up to 500 days. Systems integrators and facilities managers specifying battery-powered digital signage, USB-C-connected e-ink commercial displays, or sustainable low-energy signage solutions will find the EM32DX purpose-built for flexible, cabling-free installations.

Product Description

E-paper technology draws power only during content updates, not while holding a static image. This passive image retention characteristic allows the EM32DX to sustain displayed content for up to 500 days on a single embedded battery charge — making it the appropriate choice for deployments where AC runs are cost-prohibitive or architecturally disruptive, such as historic buildings, temporary installations, or locations with restricted conduit access. The USB Type-C port handles both content update connectivity and battery charging, simplifying the field maintenance workflow to a single cable interaction. The lightweight, ultra-thin frame enables repositioning without tools in many mounting configurations, which is particularly useful in environments where room assignments or tenant configurations change frequently. Content updates are delivered via USB-C connection, and the advanced color imaging algorithm optimizes source imagery for the e-paper panel's color gamut and refresh characteristics. The display housing incorporates recycled plastics, supporting facilities managers working toward sustainability reporting benchmarks. At 32 inches, the EM32DX is sized appropriately for door-mounted room identification, corridor wayfinding nodes, and retail shelf header applications. No video input is supported; this display is intended for static and periodically updated content only. The EM32DX is priced at $1,350.00 (compare at $1,500.00), representing a $150 savings from standard pricing.

Key Features

• Up to 500-Day Image Retention — Electrophoretic display technology holds static content for up to 500 days on a single embedded battery charge, eliminating AC power requirements for long-duration static signage.
• Embedded Battery — Internal battery eliminates the need for continuous power runs to the display location, enabling cabling-free installation in locations with restricted electrical access.
• USB Type-C Connectivity — Single-port USB-C interface handles content upload and battery charging, simplifying field maintenance and reducing the cable infrastructure required at each installation point.
• Advanced Color Imaging Algorithm — Onboard processing optimizes content color reproduction for the e-paper panel's gamut, improving visual accuracy of branded graphics and wayfinding materials.
• Ultra-Light, Ultra-Thin Form Factor — Low panel weight and minimal depth allow repositioning without specialized mounting hardware, useful for frequently reconfigured spaces.
• Recycled Plastic Housing — Display enclosure incorporates recycled materials, supporting facilities sustainability reporting and green building certification requirements.
• 32-inch Display Area — Panel size is appropriate for door-mounted room identification, corridor wayfinding, and retail shelf header signage at standard viewing distances.
• Low Energy Consumption — Power is drawn only during content refresh cycles, not during image hold periods, minimizing operational energy cost across large-scale deployments.

Typical Applications

• Meeting room and office door signage — Battery operation and USB-C updates eliminate AC runs to individual door locations in office fit-outs.
• Corporate wayfinding — Corridor-mounted nodes display directional information and can be repositioned as floor layouts evolve without re-cabling.
• Retail shelf headers and pricing displays — Color e-paper renders pricing and promotional content with sharp readability in ambient retail lighting.
• Educational institution directories — Lightweight mounting and USB-C updates allow facility staff to manage directory content without AV technician involvement.
• Historic buildings and retrofit environments — No AC power requirement allows digital signage deployment where new electrical runs are cost-prohibitive or restricted.
• Event and temporary installations — Lightweight frame and embedded battery support event signage that requires frequent repositioning between deployments.

Technical Specifications

Frequently Asked Questions

Does the EM32DX support live video or real-time data feeds?

No. E-paper displays are not designed for continuous video playback or real-time data streams. The EM32DX is intended for static content and periodically updated images — such as room identification, wayfinding graphics, pricing boards, and schedules — where content changes infrequently. Content is pushed to the display via USB-C connection. For live video or dynamic data visualization applications, a standard commercial LCD or LED display is the appropriate specification.

How is content updated on the EM32DX?

Content updates are delivered via the USB Type-C port using compatible content management software. The update process connects a USB-C cable to the display, transfers the new image file, and the display refreshes. The embedded battery also charges during this process. Consult Samsung's commercial display content management documentation for supported file formats and software requirements.

What is the realistic battery life, and what affects it?

Samsung rates the EM32DX at up to 500 days of image hold on a single charge under static display conditions. Actual battery duration depends on the frequency of content updates — each refresh cycle consumes power. High-frequency content changes (multiple times daily) will significantly reduce the time between charging cycles. For installations requiring frequent content updates, plan for more regular USB-C charging intervals.
