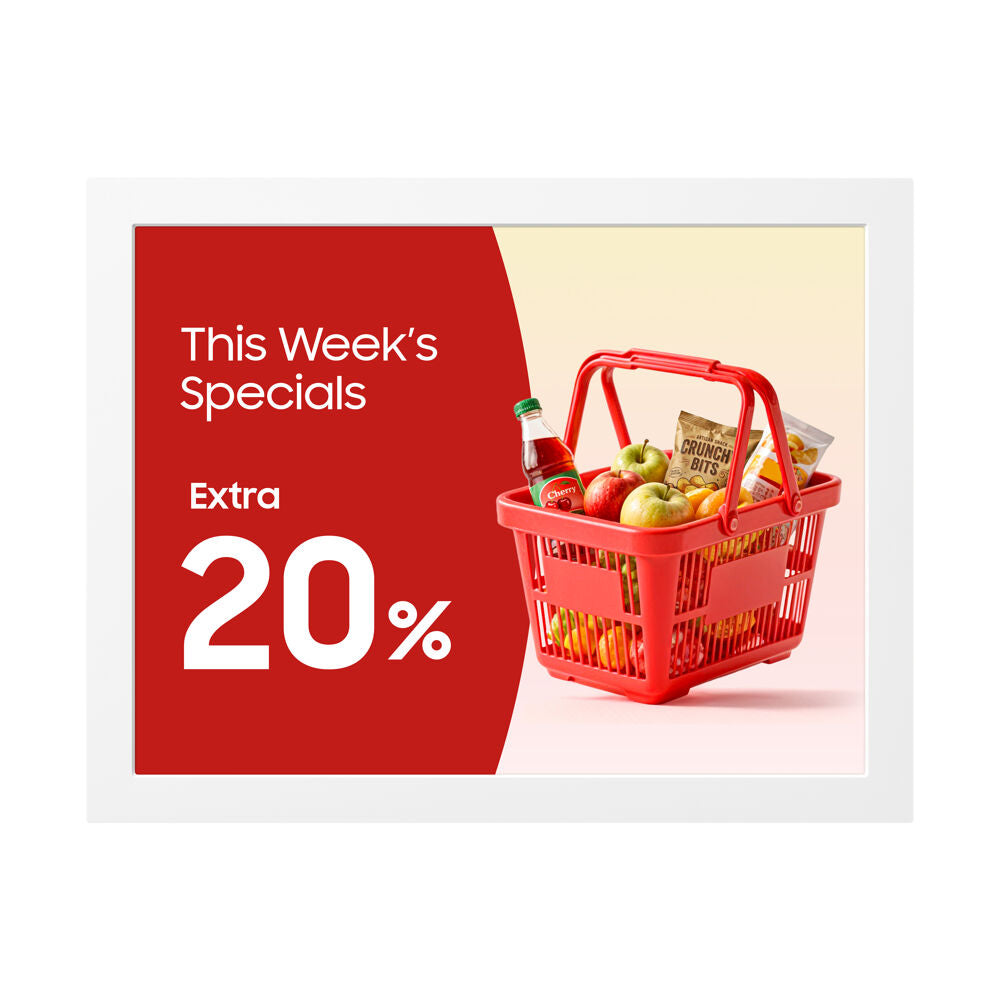

Samsung EM13DX – 13" 1600x1200 Color E-Paper Display

Product Overview

The Samsung EM13DX is a 13-inch color e-paper display engineered for commercial signage and digital wayfinding applications where low power consumption and readability in high-ambient-light environments are priorities. With a 1600x1200 resolution and paper-like picture quality, it delivers clear, legible content without the glare or power draw associated with LCD or LED panels. Mobile app support and infrastructure-free deployment make it a practical choice for facilities teams modernizing paper-based communication systems.

Product Description

The Samsung EM13DX replaces traditional paper signage with a digitally managed display solution that maintains the visual clarity and low-reflectivity of printed materials. Operating at minimal power draw, the display is well-suited for battery-powered or energy-constrained installations where constant screen refresh is unnecessary — such as room identification plates, wayfinding directories, and static informational kiosks. Content updates are managed via mobile application, eliminating the need for dedicated AV infrastructure or network cabling in many deployments. The ultra-thin, lightweight form factor simplifies wall mounting and integration into architectural millwork. Samsung has incorporated recycled plastics into the housing construction and bio resin derived materials in the packaging, supporting sustainability requirements in LEED-certified and green building projects. For systems integrators working in corporate campuses, healthcare facilities, or education environments, the EM13DX reduces both operational overhead and ongoing consumables cost compared to printed signage programs. The display's e-paper panel holds its image without power once set, making it particularly effective for content that changes infrequently. This characteristic also makes it viable for remote or hard-to-access installation locations where power availability is limited.

Key Features

• 1600x1200 Color E-Paper Panel — High-resolution display with paper-like readability and no backlight glare, suitable for high-ambient-light environments.
• Ultra-Low Power Consumption — Holds static content without continuous power draw; image persists even when power is disconnected.
• Mobile App Control — Content updates pushed directly from a mobile application without requiring dedicated server infrastructure.
• Infrastructure-Free Deployment — No AV rack, media player, or network drop required for basic operation, reducing installation complexity and cost.
• Ultra-Thin Lightweight Form Factor — Simplified mounting and integration into wall plates, frames, or architectural elements.
• Sustainable Materials — Recycled plastics in housing; bio resin derived packaging materials for green building compliance.

Typical Applications

• Corporate campuses — room identification and directory signage without cabling infrastructure
• Healthcare facilities — patient room name plates and department wayfinding
• Education environments — classroom and office door signage with remote content management
• Hospitality — static room number and amenity signage with low maintenance overhead
• Retail — shelf-edge and category signage requiring infrequent content updates

Technical Specifications

Frequently Asked Questions

Does the EM13DX require a constant network connection to maintain its displayed content?

No. E-paper displays are bistable, meaning the image is retained without power once it has been set. A network connection is only needed when pushing a content update via the mobile app.

What infrastructure is needed to install the EM13DX?

Basic deployments require no AV rack equipment, dedicated media player, or network cabling. Content is pushed from a mobile application, making it straightforward to install in locations where running conduit or cabling is impractical.

Is the EM13DX suitable for outdoor or high-brightness environments?

E-paper technology performs well under high ambient light conditions without glare, making it readable in brightly lit lobbies and corridors. It is not rated for outdoor exposure and should be used in interior, climate-controlled spaces.
