Salamander Electric Lift Wall Stands - Graphite

Take control of creative, presentation and collaboration workspaces with Salamander’s Electric Lift Wall Stand stand. This Heavy Duty stand integrates seamlessly with most large displays including 86” Screens (see VESA pattern and weight limits), Microsoft Surface Hub 2S 50” and Webex Board Pro 75″. Effortless precision ergonomics allow you to focus on productivity then raise your interactive display to collaborate in presentation mode.

Available in gray or white panels.

Compatibility

• VESA compliant displays,
  Horizontal – 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900mm Vertical – 100, 200, 300, 350, 400mm
• Optional CA/MAC8 Brackets Available – Provides additional 4” of vertical adjustment to display position and expands VESA to 600×600

• Microsoft Surface Hub 2S 50” and 85″ (85″ requires Mounting Adapter Kit CA/MAC5)
• Webex Board Pro 75″

Ergonomics

• Fully adjustable motor control improves user experience and productivity for any size user for any work assignment.
• ADA compliant. Each user can achieve their desired ergonomic setting (waist to shoulder range of movement).

Deployment

• FPS2W/EL stand saves on engineering, trades and permitting as there no need to mount display to a wall.

Design & Construction

• Constructed with powder coated welded steel and featuring industry standard VESA mounts the FPS2W/EL stand ensures a lifetime of improved productivity, unrivaled flexibility and value.
• Custom finishes and custom matched wood panels are available.

Wire Management & Storage

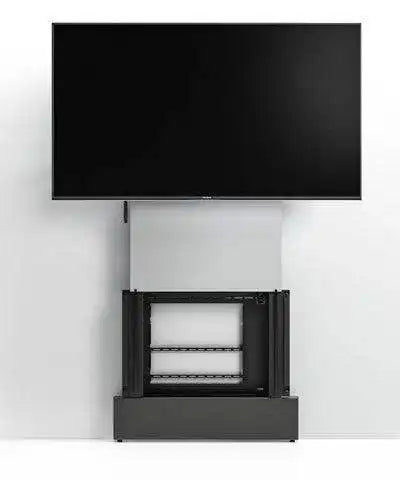

• Compact, Telescoping design hides cables and equipment.
• Wire Management allows clean and uncluttered installation.

SPECIFICATIONS

• Durable Construction Made in the USA. Powder Coated Steel, Linak Motor Components, Powder Coated and/or Veneered MDF Panels
• VESA Pattern Horizontal – 200, 250, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800mm : Vertical – 100, 200, 300, 350, 400mm
• Optional CA/MAC8 Brackets Available – Provides additional 4” of vertical adjustment to display position and expands VESA to 600×600
• Electrical Info Input: 90V – 240V ~, 48 Hz – 63HZ, IEC – Type Class 2, 2-prong, Duty Cycle: 10% Max 2min / 18min, USA Included: Available: EU (PN 400-591) UK (PN 400-592) New Zealand, Australia and others (PN 400-593), 5 Amp Max
• Display Size Range Compatible with most large displays including 86” Screens, see VESA pattern and weight limits.
• Weight Capacity 200 lb (90.7 kg)
• Range of Travel Center of screen: Min – 34.01” (863.8 mm) and Max 59.6” (1513.8 mm)
• Product Dimensions 34.31″ W (871.5 mm) x 44.44 – 70.03″ H (1128.8 -1778.8mm) x 8.03″ D (204mm)
• Color Graphite/Gray and White
• Warranty Limited Lifetime
