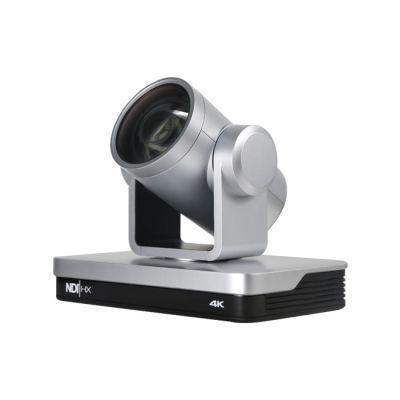

RGBlink Ultra HD 4K PTZ Camera – Commercial PTZ Camera with NDI and HDMI Output

Product Overview

The RGBlink Ultra HD 4K PTZ camera delivers 4K@60fps video capture with 12x optical zoom for conference rooms, houses of worship, broadcast studios, and other commercial AV environments that require high-resolution remote-operated cameras. The camera outputs simultaneously over NDI (via LAN), HDMI, and USB 3.0, making it compatible with a broad range of production switchers, streaming encoders, and video conferencing systems. Multi-protocol PTZ control — including VISCA, Pelco-D, and Pelco-P — allows integration with existing control infrastructure. With an 80.4-degree field of view and precision auto-focus, this 4K PTZ camera with NDI output is a practical choice for permanent commercial installations where image quality and remote operability are primary requirements.

Product Description

The RGBlink Ultra HD 4K PTZ camera is engineered for fixed commercial installations where operators need high-resolution remote camera control without a dedicated camera operator on site. At 4K resolution with a 60fps capture rate, the camera produces sharp, fluid video suited for recording, live streaming, and video conferencing applications. The 12x optical zoom range allows a single camera to cover a wide stage or conference table while still framing individual speakers at close range without digital quality loss. NDI output via the LAN port makes this camera directly compatible with NewTek TriCaster, vMix, Wirecast, OBS Studio, and any other NDI-capable production system, which simplifies cable runs in conference rooms and all-hands rooms by using the existing network infrastructure. HDMI output provides a direct connection to local monitors, capture cards, or video mixers such as the RGBlink Mini MX. USB 3.0 output allows the camera to function as a USB video class (UVC) device for plug-and-play use with computers running video conferencing software. Pan, tilt, and zoom can be controlled via VISCA over IP or RS-232, Pelco-D, and Pelco-P protocols, giving integrators flexibility to match the control system already in use. Auto-focus and auto-exposure maintain image quality as subjects move or lighting conditions change without manual operator intervention. The 80.4-degree horizontal field of view accommodates medium to large room geometries from a single camera position. The camera supports PoE+ (Power over Ethernet) for simplified installation in spaces where running a dedicated power cable to the camera position is impractical. Wall, ceiling, and desk mount options are available for flexible positioning across boardrooms, training rooms, and auditoriums.

Key Features

• 4K@60fps Capture — Full Ultra HD resolution at 60 frames per second for sharp, fluid video in demanding commercial AV applications.
• 12x Optical Zoom — Covers wide establishing shots and close speaker framing from a fixed camera position without digital quality degradation.
• NDI Output via LAN — Direct network video output compatible with NewTek, vMix, Wirecast, OBS, and other NDI-enabled production platforms; eliminates long HDMI cable runs.

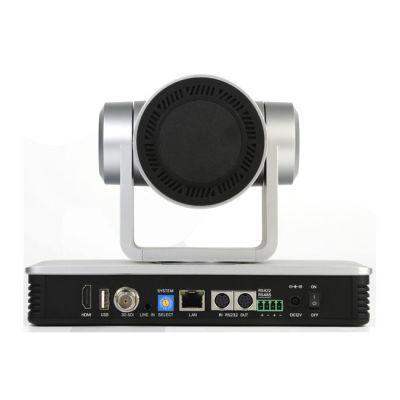

• HDMI and USB 3.0 Output — Simultaneous HDMI output for local AV systems and USB 3.0 UVC output for direct computer integration and video conferencing software.
• Multi-Protocol PTZ Control — Supports VISCA over IP, VISCA RS-232, Pelco-D, and Pelco-P for compatibility with existing control systems.
• 80.4-Degree Field of View — Wide FOV accommodates conference rooms, training rooms, and auditoriums from a single mounting position.
• Auto Focus and Auto Exposure — Maintains image quality during movement and changing lighting conditions without operator intervention.
• PoE+ Power Support — Powered via Ethernet cable, simplifying installation in ceiling or wall-mount positions where AC power is unavailable.

Typical Applications

• Conference room and boardroom video conferencing
• House of worship live streaming and recording
• Broadcast studio remote camera operation
• All-hands room and training room presentations
• Auditorium and multi-purpose room coverage
• Government space and secure meeting room installations

Technical Specifications

Frequently Asked Questions

Does the RGBlink 4K PTZ camera work with standard video conferencing platforms?

Yes. The USB 3.0 output enables plug-and-play UVC compatibility with Microsoft Teams, Zoom, Webex, and other video conferencing software. For platform-controlled rooms, HDMI or NDI outputs are typically preferred for integration with room AV systems.

What NDI version does the camera support, and is a license required?

The camera supports NDI output natively via its LAN port. Confirm the specific NDI version (NDI|HX or full-bandwidth NDI) with Creation Networks at time of purchase, as this affects bandwidth requirements and software compatibility.

Can the camera be controlled by Crestron or AMX room control systems?

Yes. VISCA over IP and RS-232 are standard protocols supported by Crestron, AMX, Extron, QSC, and most commercial room control platforms. Third-party drivers or custom control code may be required depending on the control system.

What mounting options are available?

The camera supports wall, ceiling, and desk mounting. Inverted ceiling mount (with image flip enabled in the camera menu) is common in conference rooms and auditoriums for a clean installation with cables routed in the ceiling plenum.

Is the RGBlink 4K PTZ camera compatible with the RGBlink Mini MX video mixer?

Yes. The camera's HDMI output connects directly to the Mini MX's HDMI 2.0 inputs. PTZ control can also be routed through the Mini MX via VISCA, allowing camera positioning from the mixer's touch screen interface.

What is the warranty on this camera?

RGBlink products sold through Creation Networks include the manufacturer's standard warranty. Contact our team for specific warranty terms and available extended service agreements.

Does the camera require a separate power supply?

The camera supports PoE+ (802.3at), so it can be powered directly from a compatible network switch or PoE injector, eliminating the need for a dedicated AC power outlet at the camera mounting position.
