RGBlink TAO 1mini-N 4K – 4K NDI Encoder Decoder Streaming Node

Product Overview

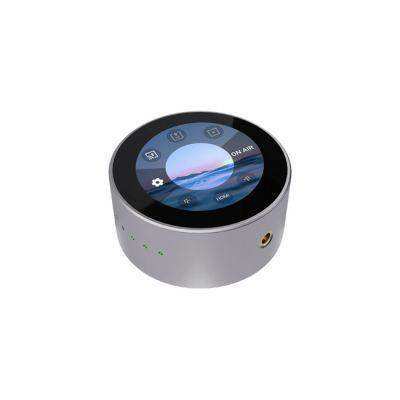

The RGBlink TAO 1mini-N 4K is a compact NDI encoder and decoder node built for live streaming, broadcast production, and AV-over-IP integration in conference rooms, broadcast studios, and house of worship installations. It encodes HDMI 2.0 input at 4K@60fps and UVC input at 4K@30fps, and simultaneously delivers Full NDI, NDI|HX3, NDI|HX2, and NDI|HX alongside RTMP, RTMPS, RTSP, and SRT protocols. Streams can be distributed to four platforms simultaneously using the onboard interface, or scaled to 32 destinations via the TAO APP, making it suitable for multi-platform live streaming workflows. Powered via USB-C or PoE, the TAO 1mini-N 4K integrates into existing network infrastructure without requiring a dedicated power run.

Product Description

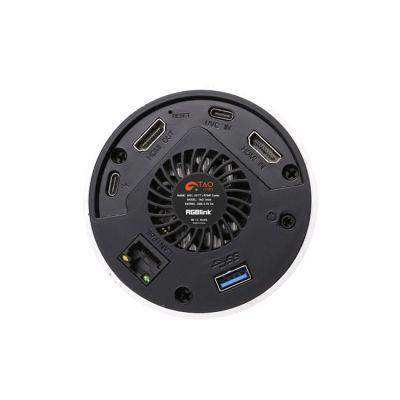

The TAO 1mini-N 4K occupies a specific role in AV production infrastructure: it converts a 4K video source into NDI and internet streaming outputs simultaneously, without requiring a dedicated encoding PC or complex software configuration. The HDMI 2.0 input accepts signals up to 4K@60fps from cameras, switchers, scalers, and presentation processors, while the UVC input via USB handles 4K@30fps from USB cameras and capture devices. H.264 and H.265/HEVC encoding at up to 32Mbps per stream keeps bandwidth manageable across multiple concurrent destinations. For NDI-based AV-over-IP workflows, the unit outputs Full NDI as well as NDI|HX3, NDI|HX2, and NDI|HX, covering both low-latency and bandwidth-efficient transport scenarios. The integrated touch control LCD screen provides direct access to stream configuration, input selection, and status monitoring without requiring a laptop on the bench. LED TALLY indicators give camera operators and directors a visual cue during live production. Dual ¼-inch mounts allow the unit to be fixed to a camera cage, under-desk bracket, or wall plate. For recordings, the TAO 1mini-N 4K writes to USB storage or shared network volumes via NFS, CIFS, and SMB, which suits archival workflows in conference rooms and broadcast studios. Up to eight user-configurable overlays—covering text, images, and clock elements—can be applied without an external graphics system. The dual input mix mode supports picture-in-picture and side-by-side layouts, adding basic switching capability to the node. Available at creationnetworks.net, the TAO 1mini-N 4K is a practical solution for integrators deploying NDI infrastructure in commercial AV and broadcast environments.

Key Features

• Full NDI + NDI|HX3/HX2/HX Output — Supports the complete NDI protocol suite for compatibility with NDI-enabled production software, switchers, and AV-over-IP systems.
• 4K@60fps HDMI 2.0 Encoding — Accepts 4K@60fps from HDMI 2.0 sources including cameras, broadcast switchers, and presentation processors.
• 4K@30fps UVC Input — Encodes 4K@30fps from USB UVC cameras and capture devices via USB-C, expanding source compatibility beyond HDMI.
• Multi-Platform Simultaneous Streaming — Streams to 4 platforms concurrently via the onboard interface, expandable to 32 destinations through the TAO APP (RTMP, RTMPS, RTSP, SRT).
• H.264 and H.265/HEVC Encoding — Up to 32Mbps per stream with both codecs supported, allowing operators to balance quality against bandwidth for each destination.
• USB-C and PoE Power — Dual power input options simplify installation: PoE eliminates a separate power cable when deployed near a PoE switch, USB-C suits portable or temporary setups.

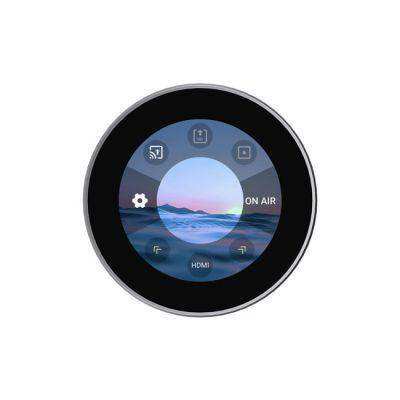

• Touch Control LCD Screen — Onboard touchscreen provides direct stream configuration and status monitoring without requiring a connected laptop or external controller.
• LED TALLY Indicators — Visible tally lights communicate live/standby status to camera operators and production staff during live events.
• Local and Network Recording — Records to USB storage or network shares via NFS, CIFS, and SMB for archival without requiring a separate recording system.
• Up to 8 Configurable Overlays — Supports text, image, and clock overlays applied at the encoder level, reducing dependency on downstream graphics processors.
• Dual Input Mix (PiP / Side-by-Side) — Combines two inputs in picture-in-picture or side-by-side layout, adding basic compositing to a single compact unit.
• Dual ¼-Inch Mounts — Two ¼-20 mounting points provide flexible positioning on camera rigs, wall brackets, or under-desk mounts in conference rooms.

Typical Applications

• Conference room and boardroom AV-over-IP integration using NDI infrastructure
• Broadcast studio multi-platform streaming from a single HDMI source
• House of worship live streaming to multiple online platforms simultaneously
• Training room and all-hands room lecture capture with simultaneous streaming and recording
• Government space and auditorium live event production with NDI signal distribution
• Commercial meeting space deployment with PoE-powered NDI nodes on the network

Technical Specifications

Frequently Asked Questions

Is the TAO 1mini-N 4K compatible with NewTek and Vizrt NDI workflows?

Yes. The TAO 1mini-N 4K outputs standard NDI (Full NDI and NDI|HX variants) which is compatible with any NDI-enabled software and hardware, including NDI-compatible production tools from NewTek, Vizrt, vMix, OBS, and similar platforms. Confirm NDI|HX generation compatibility with your specific software version.

Can the TAO 1mini-N 4K decode NDI streams in addition to encoding?

Yes. The unit operates as both an NDI encoder and decoder, allowing it to receive NDI streams from the network and output them via HDMI for display or monitoring in AV-over-IP installations.

What is required to stream to 32 platforms simultaneously?

The TAO APP is required to configure and manage streaming to up to 32 concurrent destinations. The onboard interface supports up to 4 simultaneous streams without the app.

Does PoE power require a specific PoE standard?

The TAO 1mini-N 4K supports PoE power input. Confirm the required PoE standard (802.3af or 802.3at) with your network switch or injector. Contact Creation Networks for guidance on PoE infrastructure compatibility.

Can the TAO 1mini-N 4K be integrated into a conference room AV system using control systems such as Crestron or AMX?

The TAO 1mini-N 4K is managed via its onboard touch LCD and the TAO APP over the network. Direct RS-232 or IP control via third-party control systems should be confirmed with RGBlink or Creation Networks before specifying in a controlled AV installation.

What recording formats does the TAO 1mini-N 4K support?

The unit records to connected USB storage or network shares via NFS, CIFS, and SMB protocols. Specific container and codec formats for recorded files should be confirmed in the RGBlink TAO 1mini product documentation available from Creation Networks.

What warranty and support are available for the TAO 1mini-N 4K?

The RGBlink TAO 1mini-N 4K is available through Creation Networks with standard RGBlink warranty coverage. For support, firmware updates, and replacement unit inquiries, contact Creation Networks.

Does the TAO 1mini-N 4K work alongside the RGBlink Bond 6 for mobile streaming?

Yes. The TAO 1mini-N 4K can connect to the Bond 6 hotspot or LAN and use its bonded WAN connection for streaming output, making the two units a practical combination for field production and mobile broadcast workflows.
