RGBlink Q16pro 4U – Compact Universal Processor with PVW Communication Module

Product Overview

The RGBlink Q16pro 4U is a compact 4U rack-mount universal video processor based on the same pure-hardware FPGA architecture as the full Q16pro platform, configured for installations where rack space is constrained but professional-grade signal processing is required. This listing includes the PVW (Preview) advanced communication board pre-installed in the chassis, enabling confidence monitoring and preview routing without additional modules. The 4U chassis provides 8 total slots and one power supply, making it appropriate for mid-scale commercial meeting spaces, boardrooms, and training rooms that need multi-source video wall processing in a space-efficient footprint.

Product Description

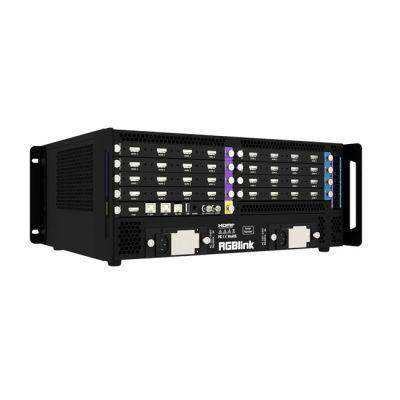

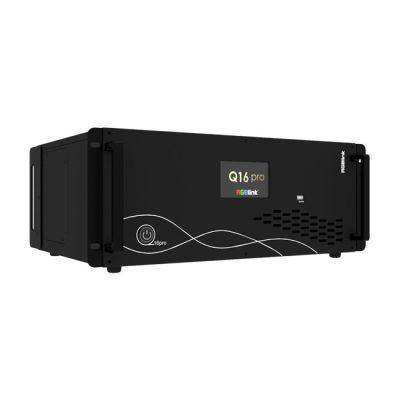

The Q16pro 4U chassis includes the mainboard, an integrated LCD status display, and a single power supply with an optional 250W redundant power module available (950-0013-01-0). The 8 available slots accept the full range of Q16pro input and output modules: HDMI, DVI, DisplayPort + HDMI 4K@60, HDBaseT, 3G-SDI, and H.264 IP inputs; and HDMI, DVI, 3G-SDI, HDBaseT, and 4K output modules. Output slots 1 through 8 also accept input modules for flexible slot allocation. The included PVW advanced communication board (791-0020-31-0) provides a preview bus for operators to pre-check source content before switching to program output — a critical feature for live event, broadcast, and all-hands room deployments. Processing is handled at 12-bit depth with RGB 4:4:4 color space, with each output module supporting up to 8 screens without consuming layer overhead. Seamless switching between signals and scenes is supported throughout. Features include dual independent OSD rolling subtitles, LOGO overlay, multi-window monitoring, interlaced signal output, and EDID management. The Q16pro 4U is configured and controlled via RGBlink XPOSE software over LAN. Available through creationnetworks.net.

Key Features

• PVW Communication Module Included — Advanced preview board (791-0020-31-0) pre-installed; enables confidence monitoring and source preview before program output switching.
• 4U Compact Chassis — 8-slot mainboard in a 4U rack enclosure; suitable for space-constrained AV equipment rooms and rack cabinets.
• Full Q16pro Module Compatibility — Accepts the complete range of Q16pro I/O modules including 4K@60 HDMI/DP, HDBaseT, 3G-SDI, and H.264 IP inputs.
• 8-Screen Output Spanning — Each output module supports spanning across 8 screens without consuming layer budget.
• 12-Bit RGB 4:4:4 Signal Path — Full 12-bit processing with RGB 4:4:4 color space for professional image quality.
• Flexible Slot Allocation — Output slots 1-8 accept input modules, allowing the integrator to tailor input/output ratios to project requirements.
• Redundant Power Option — Optional 250W redundant power module (950-0013-01-0) for 4U chassis installations requiring backup power.
• Seamless Signal Switching — Transitions between sources and scene presets execute without visible frame drops or glitches.
• Dual Independent OSD and LOGO Overlay — Two rolling OSD subtitle channels plus LOGO insertion on any output for venue branding or event identification.
• Multi-Window Monitoring — Simultaneous on-screen monitoring of all active input and output signals for operator visibility.
• EDID Management — Per-port EDID configuration and custom resolution support for compatibility with any source or display.
• XPOSE Software Control — Full routing, scene management, and configuration via RGBlink XPOSE over LAN.

Typical Applications

• Boardroom
• Conference room
• Commercial meeting space
• All-hands room
• Training room
• House of worship
• Multi-purpose room

Technical Specifications

Frequently Asked Questions

What does the PVW Communication Module add to the Q16pro 4U?

The PVW (Preview) advanced communication board allows operators to route a source signal to a preview output for confidence monitoring before switching it to the program output. This is particularly useful in live event, broadcast, and boardroom environments where an unintended switch would be disruptive.

Does this listing include I/O modules, or just the chassis and PVW board?

This listing includes the 4U chassis with the PVW communication module. Input and output modules are purchased separately to match the specific source and display requirements of your installation. Contact creationnetworks.net to configure the correct module set.

How many inputs and outputs can the Q16pro 4U support?

The 4U chassis has 8 total slots. With quad-channel modules, the maximum practical configuration provides up to 32 inputs or 32 outputs (or a mixed ratio). Output slots 1-8 accept input modules, giving full flexibility over the input/output split.

Can the Q16pro 4U accept 4K input sources?

Yes. The Dual DP1.2 + HDMI2.0 4K@60 input module and the Dual HDMI 2.0 4K@60 output module both support 4K resolution at 60Hz, suitable for 4K cameras, computers, and high-resolution display walls.

Is redundant power available for the 4U chassis?

Yes. The optional 250W redundant power module (950-0013-01-0) is designed specifically for the 4U chassis, providing a failover power supply for installations where uptime is critical.

What is the difference between the Q16pro 4U and the Q16pro 8U?

The 4U chassis provides 8 module slots and a smaller rack footprint, suitable for mid-scale installations. The 8U chassis supports up to 20 slots (10 input + 10 output) and scales to a 40x40 routing matrix for larger, more complex deployments.

How is the Q16pro 4U controlled on-site?

The Q16pro 4U is controlled via RGBlink XPOSE software over a LAN connection. Scene presets can be saved and recalled. The integrated LCD front panel provides status information. For third-party control system integration, contact creationnetworks.net.
