RGBlink Q16pro 4U – Modular Video Wall Processor with Communication Module

Product Overview

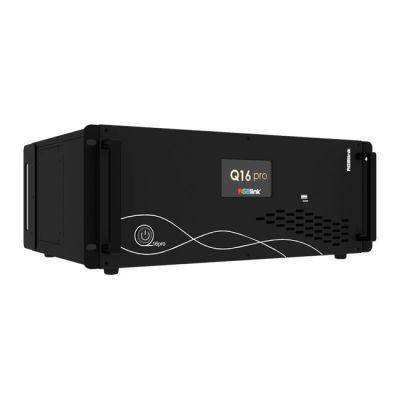

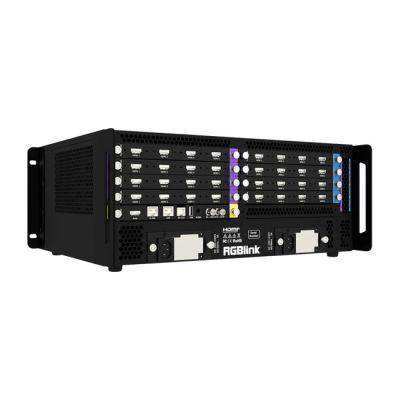

The RGBlink Q16pro 4U video wall processor is a rack-mount, FPGA-based signal processing platform built for large-format commercial display installations and digital signage control rooms. Designed around a modular I/O architecture, the Q16pro 4U supports hot-swappable input and output cards, giving integrators the flexibility to configure the system for specific signal environments without replacing the entire chassis. This unit ships with the optional Communication Module installed, enabling centralized management via RS-232, TCP/IP, or third-party control systems. It is well suited for government spaces, broadcast studios, command centers, and multi-display conference rooms requiring reliable 4K signal routing and wall management.

Product Description

The Q16pro 4U is built on a field-programmable gate array (FPGA) processing core, which provides deterministic, low-latency signal handling across all active I/O channels. The 4U chassis accommodates multiple input and output module slots, accepting RGBlink's range of signal cards including HDMI 2.0 4K@60, DisplayPort 1.2, 3G-SDI, HDBaseT, and IP streaming modules. This flexibility makes the Q16pro 4U an effective modular video wall controller across a wide range of signal types and installation scales. Color fidelity is maintained at 12-bit RGB 4:4:4 throughout the processing chain, preserving accurate reproduction on high-grade display arrays. OSD overlay capability allows operators to apply custom graphics, labels, or source identifiers directly to output channels without additional hardware. The Communication Module included with this configuration adds serial and network-based control ports, allowing the processor to integrate with AMX, Crestron, Extron, and other third-party control systems commonly deployed in commercial meeting spaces and government spaces. Seamless switching between sources is supported, eliminating visible frame tears or black frames during live transitions — a critical requirement in broadcast studios and auditoriums. An optional redundant power supply can be added for installations where uptime requirements are non-negotiable. Input and output modules are hot-swappable, meaning field replacements or reconfigurations can occur without powering down the system. The Q16pro 4U ships ready for standard 19-inch rack installation and includes mounting hardware.

Key Features

• FPGA Processing Architecture — Provides deterministic, low-latency video processing across all I/O channels for commercial-grade reliability.
• Modular Hot-Swap I/O Slots — Accepts a wide range of RGBlink input and output cards including HDMI 2.0, DP 1.2, 3G-SDI, HDBaseT, and IP; field-replaceable without powering down the chassis.
• 4K Input and Output Support — Processes signals up to 4K resolution on compatible I/O modules, supporting modern high-resolution display walls.
• 12-Bit RGB 4:4:4 Color Processing — Maintains full color depth throughout the signal chain, ensuring accurate output on professional-grade display panels.
• Communication Module Included — RS-232, TCP/IP, and third-party control system integration (AMX, Crestron, Extron) out of the box.
• OSD Overlay Engine — Apply labels, source IDs, or custom graphics directly to output channels without external overlay hardware.
• Seamless Source Switching — Transitions between inputs without black frames or visible artifacts, suitable for live event and broadcast environments.
• Redundant PSU Option — Optional dual power supply configuration for high-availability installations in mission-critical spaces.
• 19-Inch Rack Mount, 4U Form Factor — Standard rack-compatible chassis suitable for AV equipment rooms, broadcast racks, and data center deployments.

Typical Applications

• Broadcast studio video wall control
• Government and command center display systems
• Large conference room and boardroom video wall installations
• Auditorium and multi-purpose room signal distribution
• Digital signage control rooms
• Training room multi-display environments

Technical Specifications

Frequently Asked Questions

Are input and output modules included with the Q16pro 4U?

No. The Q16pro 4U chassis ships with the Communication Module installed but I/O modules are sold separately. RGBlink offers a range of compatible input and output cards including HDMI 2.0, DisplayPort 1.2, 3G-SDI, and HDBaseT. Contact Creation Networks for module configuration assistance.

Which third-party control systems are compatible with the Communication Module?

The Communication Module supports RS-232 and TCP/IP interfaces, enabling integration with AMX, Crestron, Extron, and other control systems that use serial or IP-based device drivers. Custom driver development may be required depending on the control platform.

Can the Q16pro 4U be used for both video wall and matrix switching applications?

Yes. The Q16pro 4U supports flexible output routing and windowing, making it suitable for both traditional video wall display arrays and signal matrix distribution depending on I/O module configuration.

What is the maximum number of inputs and outputs supported?

The total I/O count depends on which modules are installed and the slot configuration of the 4U chassis. Refer to RGBlink's module compatibility documentation or contact Creation Networks for a configuration quote specific to your installation.

Does the Q16pro 4U support redundant power?

An optional dual redundant power supply configuration is available for installations requiring continuous uptime. The redundant PSU must be specified at the time of order; it is not field-upgradeable on all configurations.

What warranty is included?

RGBlink products sold through Creation Networks include the manufacturer's standard warranty. Contact our team for warranty terms specific to this SKU and any available extended service options.

Is professional installation required?

The Q16pro 4U is intended for installation by qualified AV integrators familiar with rack-mount signal processing systems. Creation Networks can provide pre-sales configuration support and post-sales technical assistance.
