RGBlink Bond 6 – Multi-Dongle Bonding Network Router for Live Streaming

Product Overview

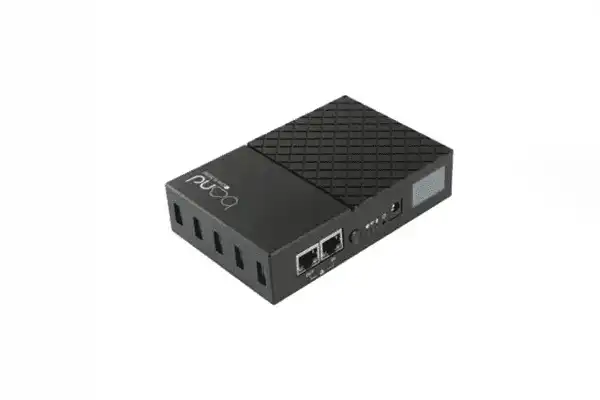

The RGBlink Bond 6 is a bonding network router designed for mobile broadcast production, live event streaming, and field deployments where a single internet connection is insufficient or unreliable. It aggregates up to five TD-LTE USB dongles plus one wired LAN connection into a single bonded WAN pipe, giving production crews stable, higher-throughput connectivity without depending on venue infrastructure. The Bond 6 supports 2.4GHz and 5.8GHz dual-band WiFi for downstream device sharing, making it a practical choice for live streaming rigs, broadcast vehicles, and remote production setups. An optional internal lithium battery and a standard ¼-inch screw mount allow the unit to be attached directly to a camera rig, tripod, or rack frame.

Product Description

The Bond 6 addresses one of the most common pain points in mobile and live streaming production: unreliable or bandwidth-limited connectivity at the venue or in the field. By bonding up to five TD-LTE USB cellular dongles with an additional wired LAN port, the device creates a single aggregated WAN connection that is more resilient and higher in throughput than any individual link. This approach is standard in broadcast vehicles and mobile production units, and the Bond 6 brings that capability to a compact, field-portable form factor. The unit's real-time LCD status screen displays connection state and signal quality for each bonded link, giving operators immediate visibility without requiring a laptop or management interface. Dual-band WiFi at 2.4GHz and 5.8GHz allows connected streaming encoders, laptops, and production devices to share the bonded connection as a WiFi hotspot. The ¼-inch mounting screw hole is compatible with standard camera cage accessories, top handles, and small tripod heads, making it straightforward to integrate into an existing ENG or streaming rig. An optional built-in lithium battery eliminates the need for a separate power source in run-and-gun deployments. For broadcast studios and fixed installations, the Bond 6 can also be rack-mounted using an appropriate adapter plate. Available from Creation Networks at creationnetworks.net, the Bond 6 is well-suited to any production team that needs dependable WAN bonding in a portable package.

Key Features

• 5-Dongle + 1 LAN Bonding — Aggregates up to five TD-LTE standard USB dongles plus one wired LAN port into a single bonded WAN connection for higher throughput and redundancy.
• WAN Broadband Bonding — Combines external broadband sources with cellular connections, suitable for hybrid fixed/mobile deployments in broadcast and live event production.
• Dual-Band WiFi Hotspot — Onboard 2.4GHz and 5.8GHz WiFi broadcasts the bonded connection as a shared hotspot for downstream devices on the production network.
• Real-Time LCD Status Display — Built-in screen shows live connection status for each bonded link, providing at-a-glance diagnostics without additional software.

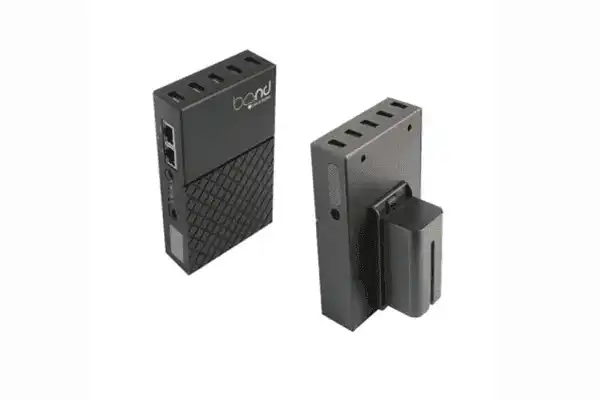

• Optional Internal Lithium Battery — Factory-installed battery option enables fully cable-free operation for run-and-gun streaming and ENG applications.
• ¼-Inch Screw Mount — Standard ¼-20 mounting point integrates with camera cages, tripod heads, and accessory rails for direct on-rig attachment.
• Compact Field-Portable Form Factor — Designed for mobile broadcast vehicles, backpack streaming rigs, and on-location production where space and weight are constrained.
• TD-LTE Standard Dongle Compatibility — Works with widely available TD-LTE USB modems from major carriers, avoiding proprietary hardware lock-in.

Typical Applications

• Live event streaming from arenas, stadiums, and outdoor venues with limited venue WiFi
• Broadcast studio remote feeds and field reporting requiring bonded cellular WAN
• House of worship live streaming from campuses without dedicated broadcast infrastructure
• Mobile production units and broadcast vehicles requiring portable WAN aggregation
• Training room and all-hands room overflow event streaming at off-site locations
• Government and corporate communications requiring reliable bonded connectivity for field broadcasts

Technical Specifications

Frequently Asked Questions

Which USB cellular dongles are compatible with the Bond 6?

The Bond 6 is designed for TD-LTE standard USB dongles. Most unlocked TD-LTE modems from major carriers are compatible. Confirm with your carrier that the dongle operates in TD-LTE mode before purchasing. Contact Creation Networks for specific compatibility guidance.

Can the Bond 6 be used with a fixed broadband connection instead of cellular?

Yes. The LAN port supports WAN external broadband bonding, so the unit can aggregate a wired internet feed alongside cellular dongles. This is useful in hybrid scenarios where a venue provides ethernet but cellular backup is required for resilience.

Does the Bond 6 require proprietary software or a cloud subscription to operate?

Basic bonding and hotspot functionality does not require third-party cloud services. Check with your reseller or RGBlink support for firmware and management app requirements for your specific deployment.

How do I mount the Bond 6 on a camera rig or streaming backpack?

The unit includes a standard ¼-inch screw hole compatible with camera cage cold shoe adapters, tripod quick-release plates, and accessory rails. No proprietary mounting bracket is required for basic camera attachment.

Can the Bond 6 power production devices downstream, or does it only share the network connection?

The Bond 6 shares the bonded WAN as a WiFi hotspot for downstream devices. It is a network aggregation device, not a power distribution unit. Downstream devices require their own power source.

What warranty and support are available for the Bond 6?

The RGBlink Bond 6 is sold through Creation Networks with standard RGBlink warranty terms. For warranty details, replacement parts, and technical support, contact Creation Networks directly.

Is the Bond 6 compatible with RGBlink streaming encoders such as the TAO series?

Yes. The Bond 6 provides network connectivity via WiFi or LAN to any downstream device, including RGBlink TAO series streaming nodes. The encoder connects to the Bond 6 hotspot and uses the bonded WAN for its streaming output.
