RGB Spectrum SuperView 4100 – DVI Multiviewer Display Processor

Product Overview

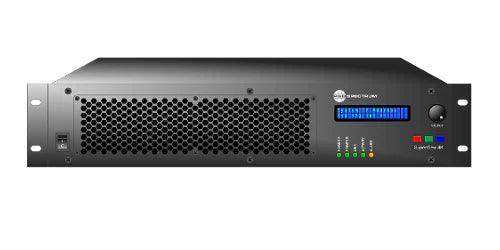

The RGB Spectrum SuperView 4100 is a full-function DVI multiviewer and multi-image display processor built for control rooms, command centers, and monitoring environments that need many sources on one screen. This rack-mount multi-image processor accepts up to eight DVI, HDMI, or RGB inputs and presents up to eight scalable windows on a single display with complete layout flexibility. Built on RGB Spectrum's image-processing architecture, it delivers reliable 24/7 operation with HDCP support for protected content. It is a practical choice for integrators specifying a commercial-grade multi-image display processor for government, security, and enterprise deployments.

Product Description

The SuperView 4100 accepts eight DVI, HDMI, or RGB inputs and supports a full range of input and output resolutions with plug-and-play setup; users can also create custom files for non-standard resolutions. Its scaling engine lets any source be displayed at any size, anywhere on screen, in any aspect ratio, so operators can build the exact layout a task demands. A dual-link output option processes resolutions up to 2560x1600 for compatibility with dual-link monitors and projectors.

Operational features include pan and zoom, custom borders, titling, window priority, and programmable presets, giving operators fast control over how sources appear. Available options include a redundant power supply, HDCP support, and RGB Spectrum's patented SinglePoint KvM, which lets a single user control all displayed source computers from one keyboard and mouse. The unit installs in a standard 2RU rack space and is managed over Ethernet via Telnet, a built-in web interface, or RS-232. For teams comparing models, this processor sits alongside other RGB Spectrum multiviewers and video distribution products at Creation Networks, and pairs well with our broader command and control AV solutions.

Key Features

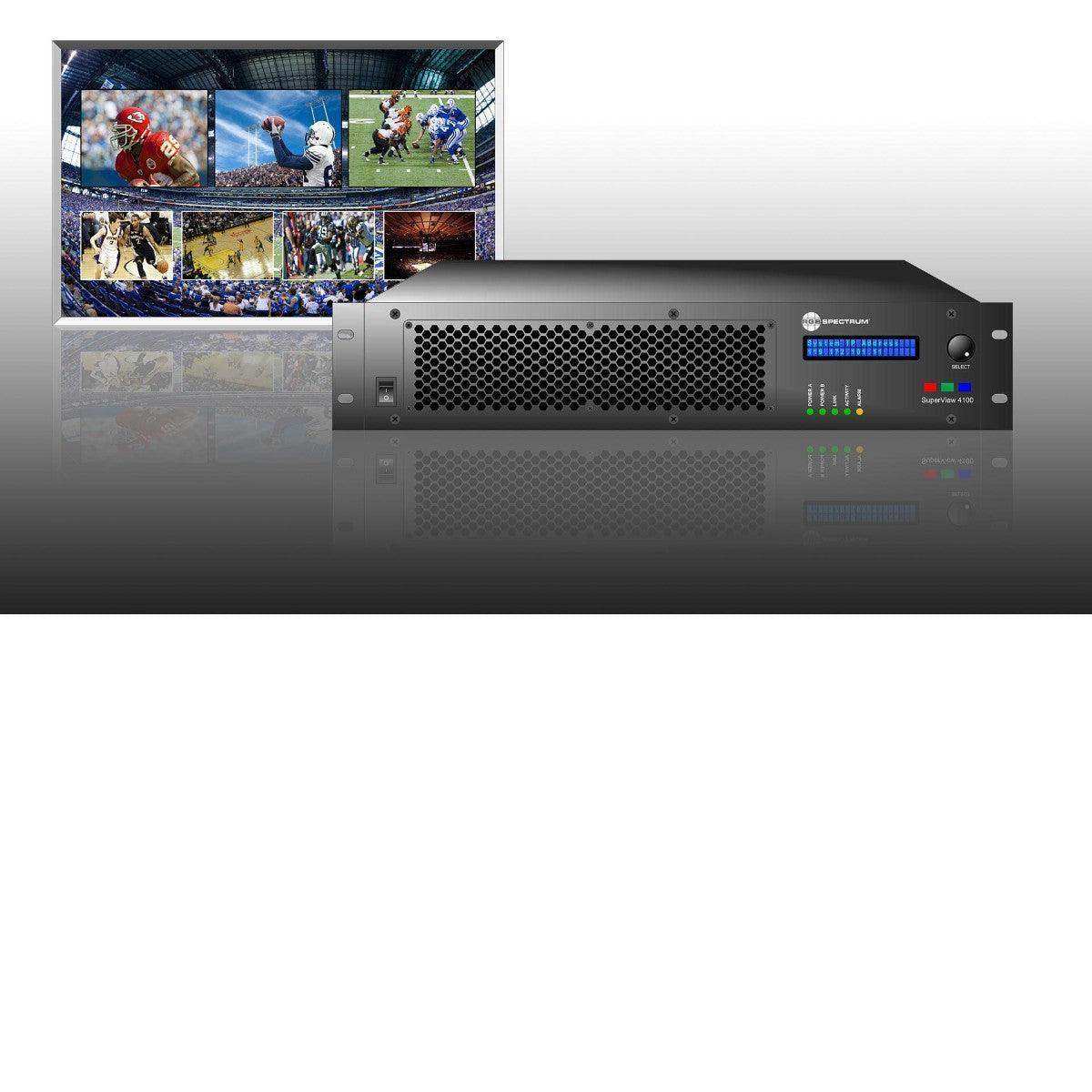

• Up to Eight Scalable Windows — Displays up to eight sources on a single output with complete display-layout flexibility.

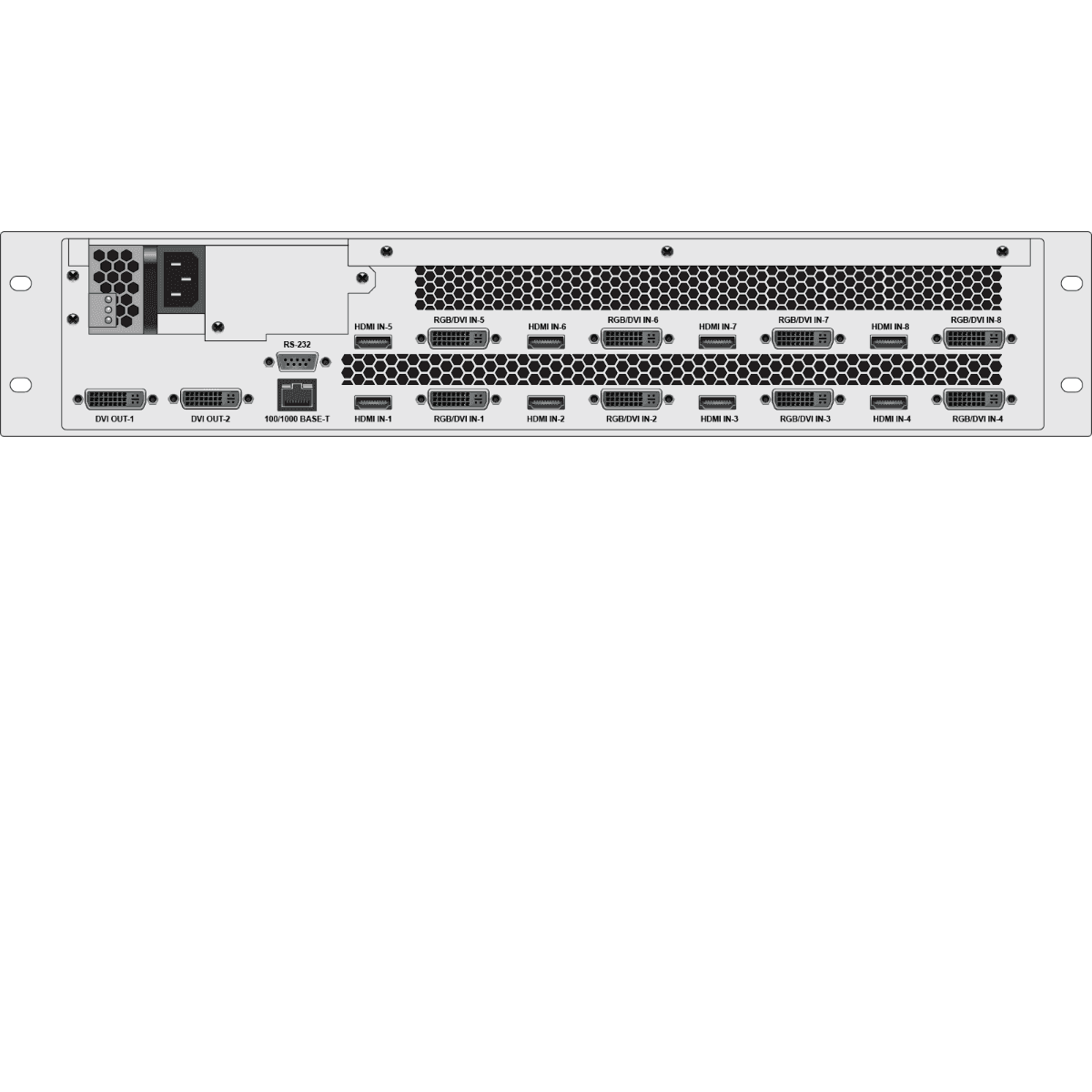

• Multi-Format Inputs — Accepts up to eight DVI, HDMI 1.3a, or RGB/YPbPr sources on DVI-I connectors for broad source compatibility.
• Dynamic Window Scaling — Any image can be shown at any size, anywhere on screen, in any aspect ratio.
• Dual-Link Output Option — Optional dual-link DVI output drives resolutions up to 2560x1600 for high-resolution displays.
• SinglePoint KvM Option — Lets one operator control all displayed source computers with a single keyboard and mouse.
• Programmable Presets — Store and recall layouts, with pan and zoom, custom borders, and titling for clear source identification.
• HDCP Support — Single-link output mode is HDCP compliant for protected content.
• Redundant Power Option — An optional redundant power supply supports mission-critical 24/7 deployments.

Typical Applications

• Command and control centers — Security operations centers, emergency operations centers, and SCADA monitoring rooms consolidating many sources on one screen.
• Government and defense spaces — Secure monitoring environments requiring flexible multi-source visualization.
• Broadcast studios — Multi-source confidence monitoring and signal review on a single display.
• Training rooms and auditoriums — Presenting multiple sources side by side for instruction and briefings.

Technical Specifications

Source: RGB Spectrum.

Frequently Asked Questions

What sources and displays is the SuperView 4100 compatible with?
It accepts up to eight DVI, HDMI 1.3a, or RGB/YPbPr inputs on DVI-I connectors, spanning resolutions from 640x480 to 1080p. Outputs drive DVI single-link displays, with an optional dual-link output for resolutions up to 2560x1600.

How is it installed and mounted?
The unit occupies a standard 2RU rack space and weighs 25 lbs. It runs on 100-240 VAC auto-ranging power, supports DVI cable runs up to 164 ft (50 m), and offers an optional redundant power supply for mission-critical rooms.

How does it integrate into an existing AV or control system?
Control is available over Ethernet (10/100Base-T) via Telnet or the built-in web interface, plus RS-232 for third-party control. The optional SinglePoint KvM also lets one operator control all displayed source computers from a single keyboard and mouse.

Does it support HDCP-protected content?
Yes. In single-link output mode the SuperView 4100 is HDCP compliant; dual-link output mode is non-compliant.

What warranty and support are available?
This is a commercial RGB Spectrum product backed by manufacturer support. For warranty details, configuration help, or a project quote, contact Creation Networks at 888-230-3661 or via our contact page.
