RGB Spectrum QuadView UHDx KVM – 4K KVM Multiviewer

Product Overview

The RGB Spectrum QuadView UHDx KVM is a 4K 60Hz KVM multiviewer that combines a high-performance multi-image video processor with integrated keyboard and mouse control. This multi-source display and control solution shows up to four sources simultaneously on a single screen and lets an operator switch control between them by moving the mouse to the desired window. Built for control rooms, command centers, and KVM workflows, it supports HDCP 2.2 and 1.4 content protection and auto source detection. It is an ideal multi-image processor for integrators specifying a commercial-grade KVM multiviewer for security operations centers and process-control environments.

Product Description

The QuadView UHDx KVM displays up to four sources at once on a single screen at resolutions up to 4K 60Hz, with single keyboard/mouse control across all of them. Its KlickSimple navigation switches control between sources simply by moving the mouse into the target window, which keeps operators fast and focused in high-pressure rooms. Six input ports — four HDMI 2.0 and two DisplayPort 1.2 — support independent resolutions, scaling, and routing to any window, and both analog and digital audio can be selected and routed from any source.

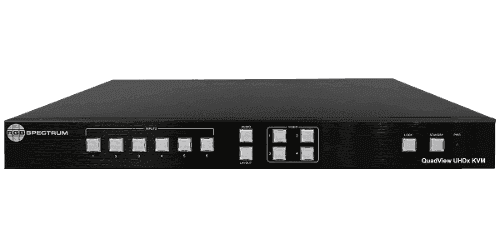

Auto source detection makes the unit well suited to conference rooms, boardrooms, and huddle rooms where devices come and go; it detects the number of connected inputs and adjusts the layout to show one to four sources automatically. Control options include the front panel, a built-in web interface, and third-party control via Telnet and RS-232, so it integrates cleanly into existing AV and control systems. The compact 1RU chassis fits standard racks and draws just 15 watts. For teams building out a control position, this unit complements our broader networked KVM and control products and the full range of RGB Spectrum multiviewers and video distribution gear at Creation Networks.

Key Features

• 4K 60Hz Multi-Image Display — Shows up to four scalable windows on a single screen at resolutions up to 3840x2160 at 60Hz.
• Integrated KVM Control — A single keyboard and mouse control up to four source computers simultaneously.
• KlickSimple Switching — Control follows the mouse, switching between source windows simply by pointing at the target.
• Six Multi-Format Inputs — Four HDMI 2.0 and two DisplayPort 1.2 inputs support independent resolutions, scaling, and routing.
• Auto Source Detect — BYOD auto layout detects connected inputs and adjusts the display layout from one to four sources.
• 16 Preset and 16 Custom Layouts — Operators can recall presets or build custom layouts for each task.
• Flexible Audio — Analog and digital audio switching with embedded-audio de-embedding to optical, HDMI, or analog outputs.
• HDCP 2.2 and 1.4 — Full content protection for protected 4K and HD sources.

Typical Applications

• Command and control centers — Security operations centers and process-control stations where operators monitor and control several computers at once.
• Conference rooms and boardrooms — Auto-layout BYOD environments where presenters connect and disconnect devices throughout a meeting.
• Huddle rooms — Compact collaboration spaces that need multi-source display from a single 1RU unit.
• Medical and industrial monitoring — Monitoring stations consolidating multiple feeds with keyboard/mouse control.

Technical Specifications

Source: RGB Spectrum.

Frequently Asked Questions

What sources and displays is the QuadView UHDx KVM compatible with?
It accepts six inputs — four HDMI 2.0 and two DisplayPort 1.2 — at resolutions up to 3840x2160 at 60Hz, and drives a single HDMI 2.0 output. Each input supports independent resolution, scaling, and routing to any window.

How is it installed and mounted?
The unit fits a standard 1RU rack space, weighs 7.3 lbs, and draws a maximum of 15 watts on 100-240 VAC power, making it easy to deploy in compact control positions and equipment racks.

How does the KVM control work and integrate with my system?
A single keyboard and mouse control up to four source computers, with KlickSimple switching that follows the mouse into each window. USB connections handle the keyboard/mouse, and control is available via the front panel, built-in web GUI, Telnet, and RS-232 for third-party control systems.

Does it support HDCP-protected content?
Yes. The QuadView UHDx KVM is compliant with both HDCP 2.2 and HDCP 1.4 for protected 4K and HD sources.

What warranty and support are available?
This is a commercial RGB Spectrum product backed by manufacturer support. For warranty details, configuration help, or a project quote, contact Creation Networks at 888-230-3661 or via our contact page.
