RGB Spectrum QuadView UHDx – 4K 60Hz Multiviewer Switcher

Product Overview

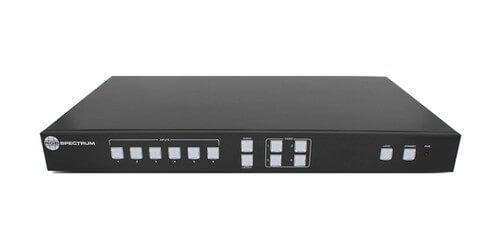

The RGB Spectrum QuadView UHDx is a 4K 60Hz multiviewer and multi-image processor that displays up to four sources at once on a single screen. This compact 6x1 multi-image processor offers internal switching of six input signals — four HDMI and two DisplayPort — four of which can be shown simultaneously in customizable layouts. Built for control rooms, command centers, conference rooms, and KVM-adjacent monitoring workflows, it supports HDCP 2.2 and 1.4 with auto source detection. It is a cost-effective multiviewer for integrators who need 4K UHD multi-source display in a single rack unit.

Product Description

The QuadView UHDx delivers up to 4K 60Hz resolution with customizable display windows and internal switching of up to six input signals, four of which can appear at once. You can mix and match input resolutions, scale any input up to 4K UHD, and route any input to any window, with both HD and 4K UHD inputs displayed without downscaling. Analog and digital audio can be selected and routed from any source, with audio de-embedding for flexible routing.

Auto source detection makes the unit well suited to conference rooms, boardrooms, and huddle rooms where devices come and go; it detects connected inputs and adjusts the layout to show one to four sources on a single screen. Connect it to any monitor or projector from XGA up to 4K/UHD resolution and route sources via four HDMI and two DisplayPort inputs to a single HDMI 2.0 output. Control options include the front panel, a built-in web interface, and third-party control via Telnet and RS-232, so it drops into existing AV and control systems. The versatile QuadView UHDx complements our broader RGB Spectrum multiviewers and video distribution products and our command and control AV solutions at Creation Networks.

Key Features

• 4K 60Hz Multi-Image Display — Shows up to four sources on a single screen at resolutions up to 3840x2160 at 60Hz.
• 6x1 Internal Switching — Switches six input signals internally, four of which can be displayed simultaneously.

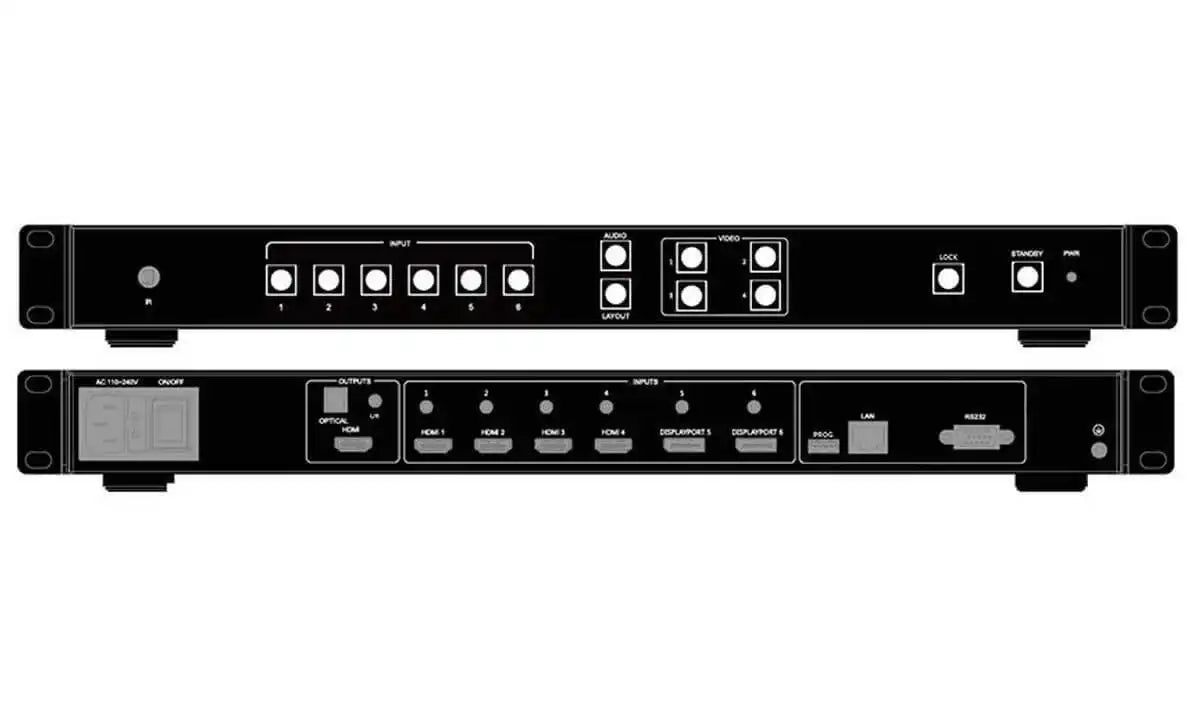

• Multi-Format Inputs — Four HDMI 2.0 and two DisplayPort 1.2 inputs accept a wide range of computer and video sources.
• No-Downscale Display — Both HD and 4K UHD inputs can be shown without downscaling, preserving source detail.
• Auto Source Detect — BYOD auto layout detects connected inputs and adjusts the display from one to four sources.
• Customizable Layouts — Build and recall display layouts with borders and labels for clear source identification.
• Flexible Audio — Analog and optical audio outputs with embedded-audio switching and de-embedding from any source.
• HDCP 2.2 and 1.4 — Full content protection for protected 4K and HD sources.

Typical Applications

• Command and control centers — Monitoring positions consolidating multiple feeds onto one 4K screen.
• Conference rooms and boardrooms — BYOD auto-layout environments where presenters connect and disconnect devices during meetings.
• Huddle rooms — Compact collaboration spaces needing multi-source 4K display from a single 1RU unit.
• Auditoriums and training rooms — Presenting several high-resolution sources side by side for instruction and briefings.

Technical Specifications

Source: RGB Spectrum.

Frequently Asked Questions

What sources and displays is the QuadView UHDx compatible with?
It accepts six inputs — four HDMI 2.0 and two DisplayPort 1.2 — at resolutions up to 3840x2160 at 60Hz, and drives a single HDMI 2.0 output. It connects to any monitor or projector from XGA up to 4K/UHD, and any input can be scaled and routed to any window.

How is it installed and mounted?
The unit fits a standard 1RU rack space, weighs 7.3 lbs, and draws a maximum of 15 watts on 100-240 VAC power, making it straightforward to deploy in racks and compact AV positions.

How does it integrate into an existing AV or control system?
Control is available via the front panel, a built-in web interface, and third-party control over Telnet and RS-232. Auto source detect and BYOD auto layout simplify use in rooms where devices are added and removed frequently.

Does it support HDCP-protected content?
Yes. The QuadView UHDx is compliant with both HDCP 2.2 and HDCP 1.4 for protected 4K and HD sources.

What warranty and support are available?
This is a commercial RGB Spectrum product backed by manufacturer support. For warranty details, configuration help, or a project quote, contact Creation Networks at 888-230-3661 or via our contact page.
