Sound Control Technologies RC4-CE – RemoteCam4 Camera-End Replacement Module

Product Overview

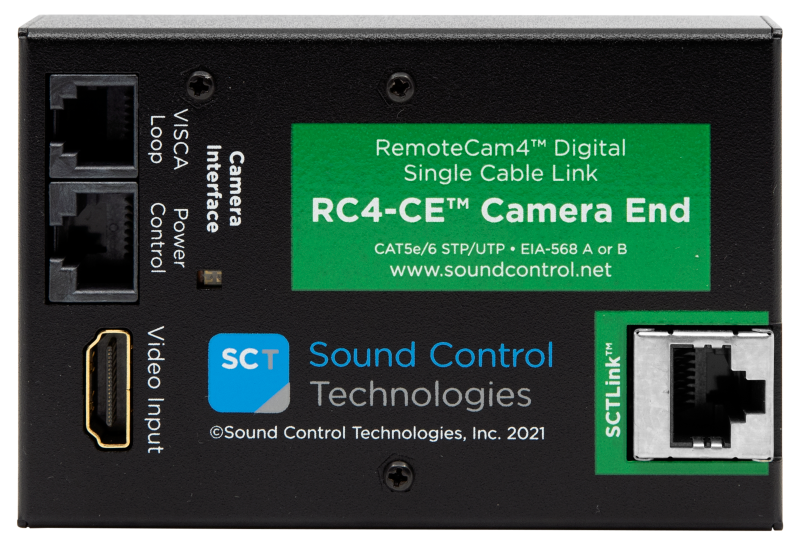

The Sound Control Technologies RC4-CE is the camera-end replacement module for the RemoteCam4 camera extension platform. RemoteCam4 delivers HDMI video, RS-232 control, and camera power over a single CAT cable up to 100 meters between the codec rack and a PTZ camera. This replacement module lets AV integrators and facilities managers restore a failed RemoteCam4 installation by swapping only the camera-side module, keeping the head-end module and installed cabling in place.

Product Description

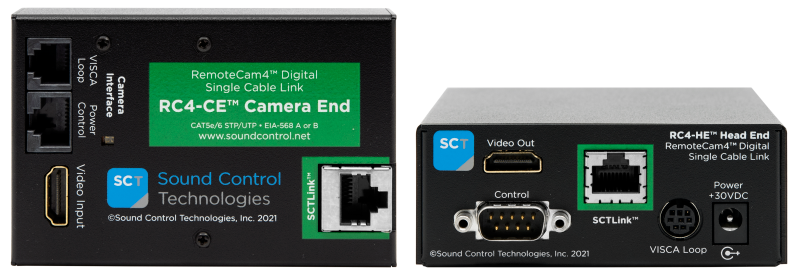

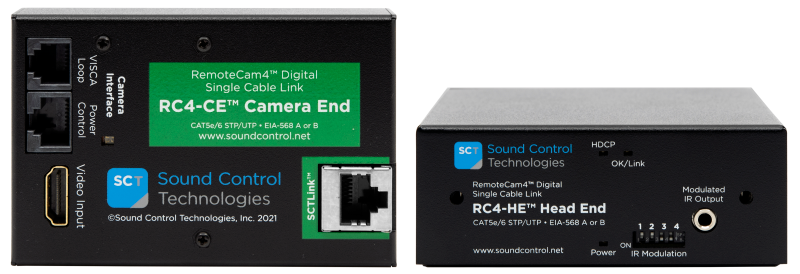

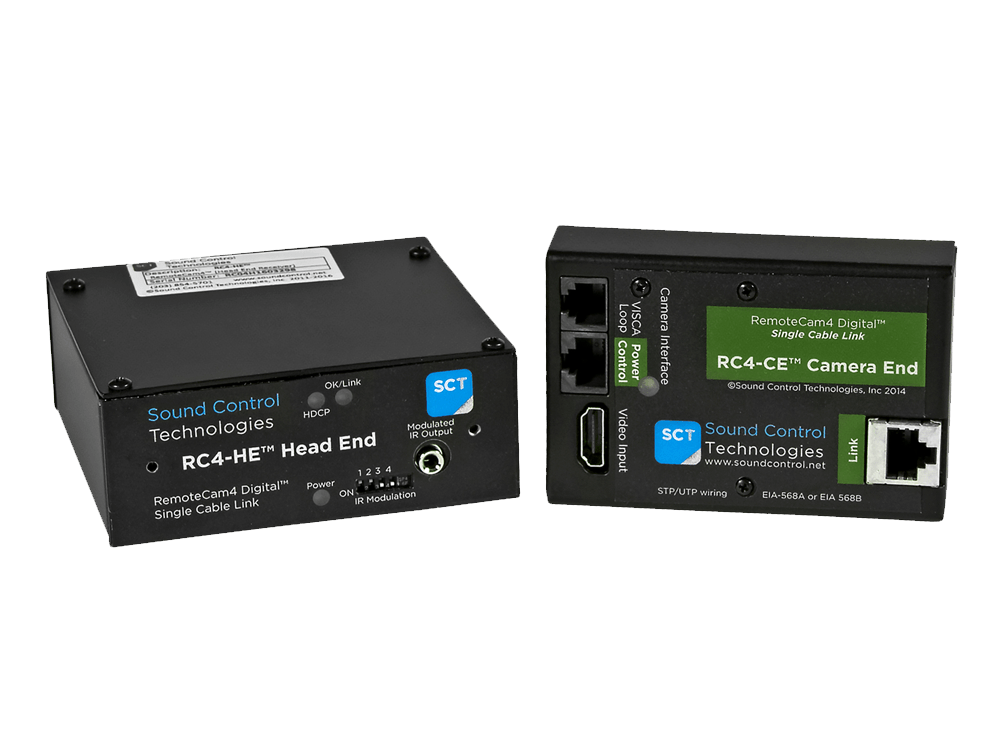

In a RemoteCam4 system, the camera-end module mounts at the camera position — on a wall mount, ceiling mount, or camera shelf — and links to the RC4-HE head-end module at the rack over the SCTLink CAT cable. The module provides the camera with HDMI video return, RS-232 control, and power on the single link, supporting Cisco PrecisionHD and Precision series cameras, Poly EagleEye models, Panasonic, AVer, ClearOne, Crestron 1Beyond, and other professional PTZ cameras depending on kit configuration. When troubleshooting isolates a fault to the camera side, replacing only the RC4-CE restores full system operation without touching the rack-side electronics, the camera mount, or the field-run CAT link. The module is a like-for-like replacement built to the original RemoteCam4 specification and pairs directly with the installed head-end module. Because it installs at the camera position, the swap can typically be completed at the mount without recabling the room, minimizing downtime for the meeting space.

Key Features

• RemoteCam4-Specific Replacement — Drop-in camera-end module for RemoteCam4 camera extension systems.
• Field-Replaceable — Restores a failed system without replacing the head-end module, power supply, or installed CAT cabling.
• HDMI Video Transport — Maintains the platform's HDMI video path over the SCTLink connection up to 100 meters.
• RS-232 Control and Camera Power — Continues delivering serial control and camera power at the camera position over the single link cable.
• Mount-Side Installation — Installs at the camera wall, ceiling, or shelf position for a fast service swap.
• Like-for-Like Pairing — Pairs directly with the existing RC4-HE head-end module over the installed link cable.

Typical Applications

• Boardroom
• Conference room
• Training room
• All-hands room
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

Is the RC4-CE compatible with other RemoteCam platforms?

No. The RC4-CE is the camera-end replacement specifically for RemoteCam4 systems. RemoteCam5, RemoteCam6, and RemoteCam8 require their own CE modules; the platforms are not interchangeable.

How do I know whether I need the RC4-CE or the RC4-HE?

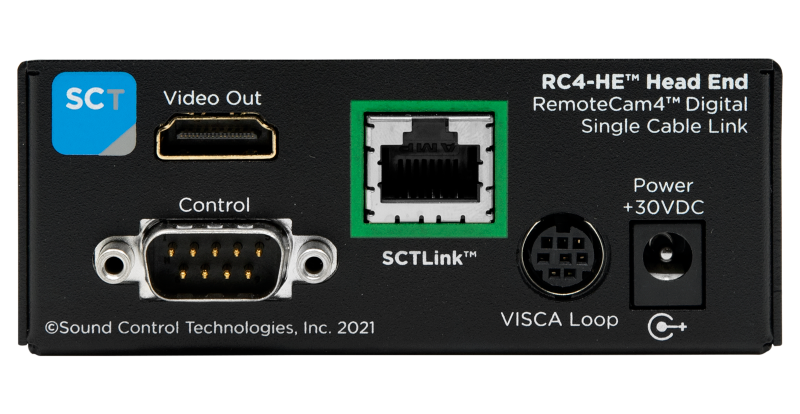

The RC4-CE is the camera-side module; the RC4-HE is the rack-side (codec end) module. If the fault is at the equipment rack, you need the RC4-HE. Contact Creation Networks for diagnostic support.

Will the RC4-CE pair with my existing head-end module and cabling?

Yes. It is a like-for-like replacement that pairs directly with the installed RC4-HE over your existing CAT link cable.

Are my camera connection cables reused?

Yes. The replacement module uses the camera-specific cables from your original RemoteCam4 kit. Contact Creation Networks if any cables also need replacement.

What warranty applies to this replacement module?

Sound Control Technologies provides a standard advance replacement limited warranty. Contact Creation Networks for current warranty terms.
