Sound Control Technologies RCU3SL-HE – Replacement Head-End Module for RCU3SL
Sound Control Technologies RCU3SL-HE – Replacement Head-End Module for RCU3SL is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCU3SL-HE – Replacement Head-End Module ...
Product Overview

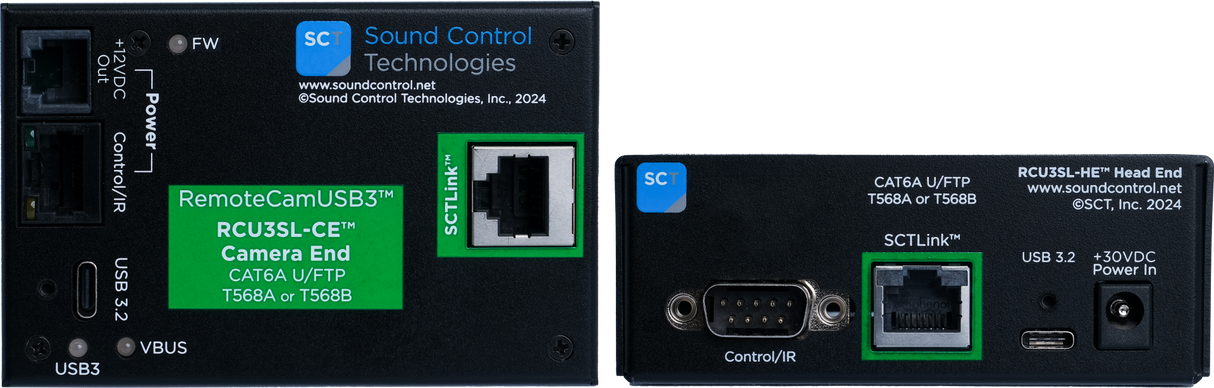

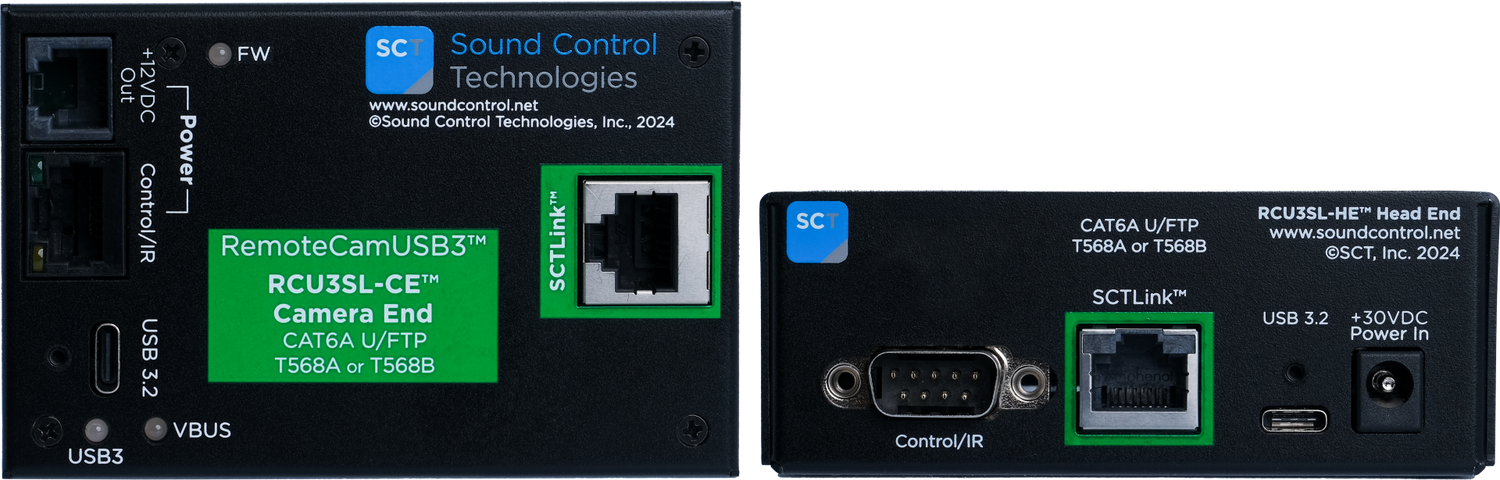

The Sound Control Technologies RCU3SL-HE is the replacement head-end (HE) module for the RCU3SL RemoteCamUSB3SL USB 3.2 Gen1 camera extension system. The HE module is the host-side component of the RCU3SL kit, connecting to the host computer, codec, or USB hub and driving the CAT cable run to the camera-end (CE) module at the camera location. Purchasing the RCU3SL-HE as a standalone unit allows field replacement of a failed head-end module without replacing the complete RCU3SL kit.
Product Description

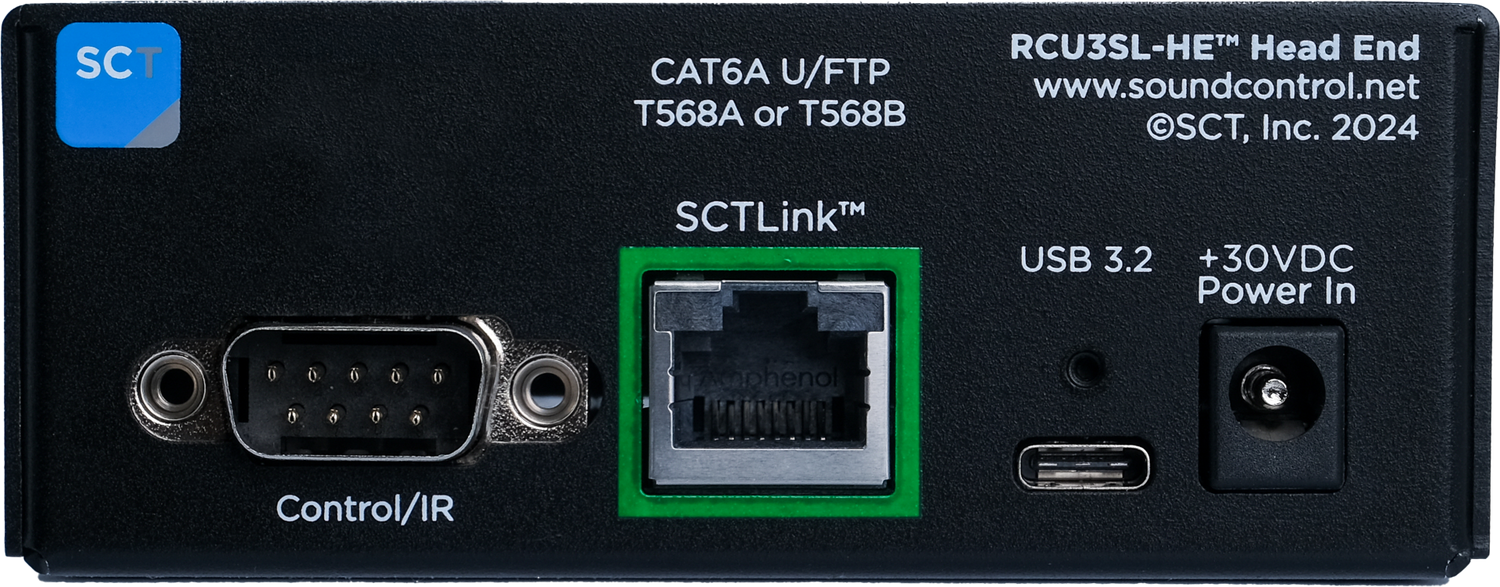

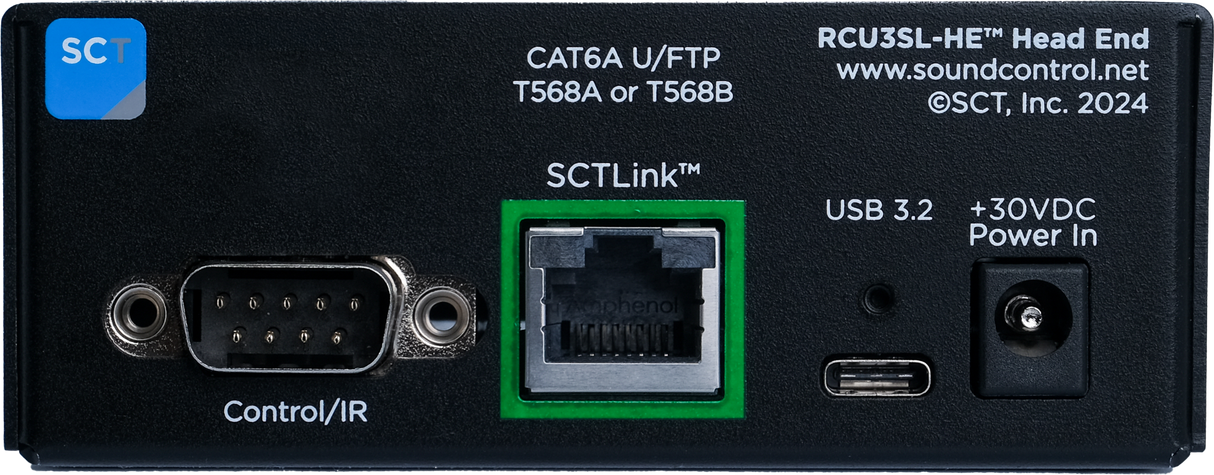

In any RCU3SL installation, the RCU3SL-HE resides at the host (codec or computer) end of the CAT cable run. It connects to the USB host port of the codec or computer and drives USB 3.2 Gen1 (5 Gbps) data, RS-232 VISCA PTZ control, and USB Power Delivery out to the RCU3SL-CE at the camera location — up to 100 meters away over a single CAT cable.
The RCU3SL-HE is the head-end module shared across the RCU3SL product family. It is plug-in compatible with any RCU3SL-CE module. MSRP: $1,078. Country of origin: USA/Taiwan.
Key Features
- Replacement RCU3SL Head-End Module — Direct replacement for the HE module in any RCU3SL USB 3.2 Gen1 camera extension installation.
- USB 3.2 Gen1 Host Interface — Connects to the host codec or computer's USB port and drives the extension over the CAT cable.
- RS-232 VISCA Control Drive — Carries VISCA PTZ control signals from the host system out to the camera-end module.
- USB Power Delivery Output — Sources camera power from the host and delivers it over the CAT cable to the CE module.
- Field-Replaceable — Designed for on-site swap without replacing the complete RCU3SL kit or CE module.
Typical Applications
- Field replacement of a failed head-end module in any RCU3SL installation
- Spare HE module for facilities with multiple RCU3SL-equipped conference rooms
- Component-level repair of RCU3SL USB camera extension systems
Technical Specifications
| Specification | Detail |
|---|---|
| Model/SKU | RCU3SL-HE |
| Module Type | Replacement Head-End Module |
| Parent System | RCU3SL RemoteCamUSB3SL |
| USB Standard | USB 3.2 Gen1 (5 Gbps) |
| Camera Control | RS-232 VISCA |
| Compatible Camera-End Module | RCU3SL-CE |
| Maximum Extension Distance | Up to 100 meters (with RCU3SL-CE) |
| MSRP | $1,078 |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
Is the RCU3SL-HE compatible with all RCU3SL camera-end variants?
The RCU3SL-HE is the head-end module used across the RCU3SL family and is compatible with the RCU3SL-CE module. Contact Creation Networks to confirm compatibility with your specific installed RCU3SL variant.
Does replacing the HE module require reconfiguration?
No. The RCU3SL-HE is a plug-in replacement and requires no programming or configuration after installation.

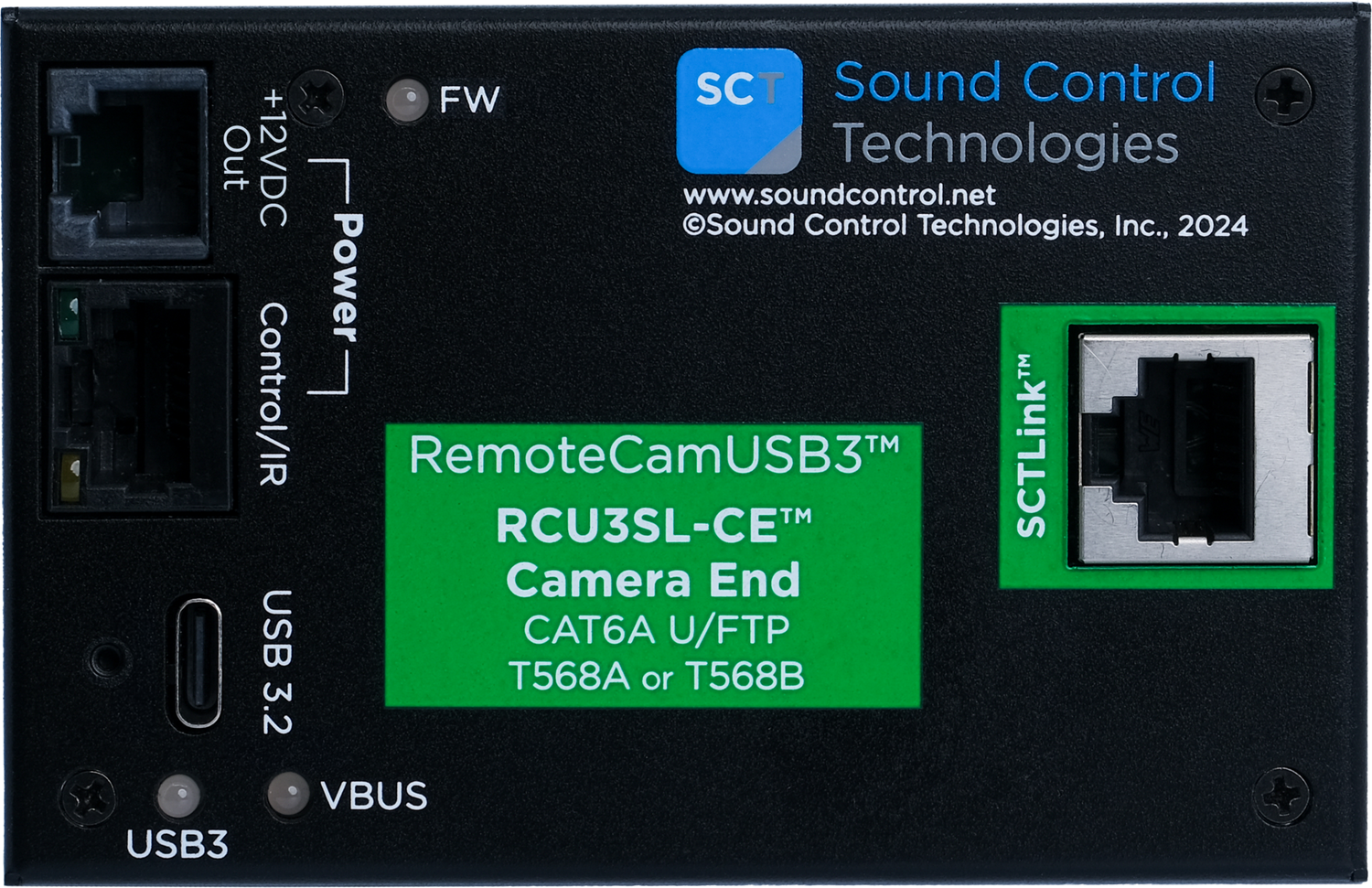

Is the camera-end module (RCU3SL-CE) sold separately?
Yes. The RCU3SL-CE is available as a separate replacement module through Creation Networks.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RCU3SL-HE.
