Sound Control Technologies RCF1-RCVR – RCF1 Fiber System Replacement Receiver Module
Sound Control Technologies RCF1-RCVR – RCF1 Fiber System Replacement Receiver Module is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RCF1-RCVR – RCF1 Fiber System Replacemen...
Product Overview
The Sound Control Technologies RCF1-RCVR is a factory-replacement receiver module for the RCF1 fiber optic camera extension system. The RCF1 system supports single-HDMI PTZ cameras including the Cisco Webex PTZ 4K (RCF1-CW4), Cisco Precision 60 (RCF1-P60), Poly EagleEye IV (RCF1-E4P), and Sony/compatible cameras (RCF1-UNI). This replacement receiver module allows integrators and facilities managers to restore a failed RCF1 system by replacing only the receiver (codec-end) module, without purchasing a complete system. It is the correct field-replacement part for RCF1 receiver failures.
Product Description

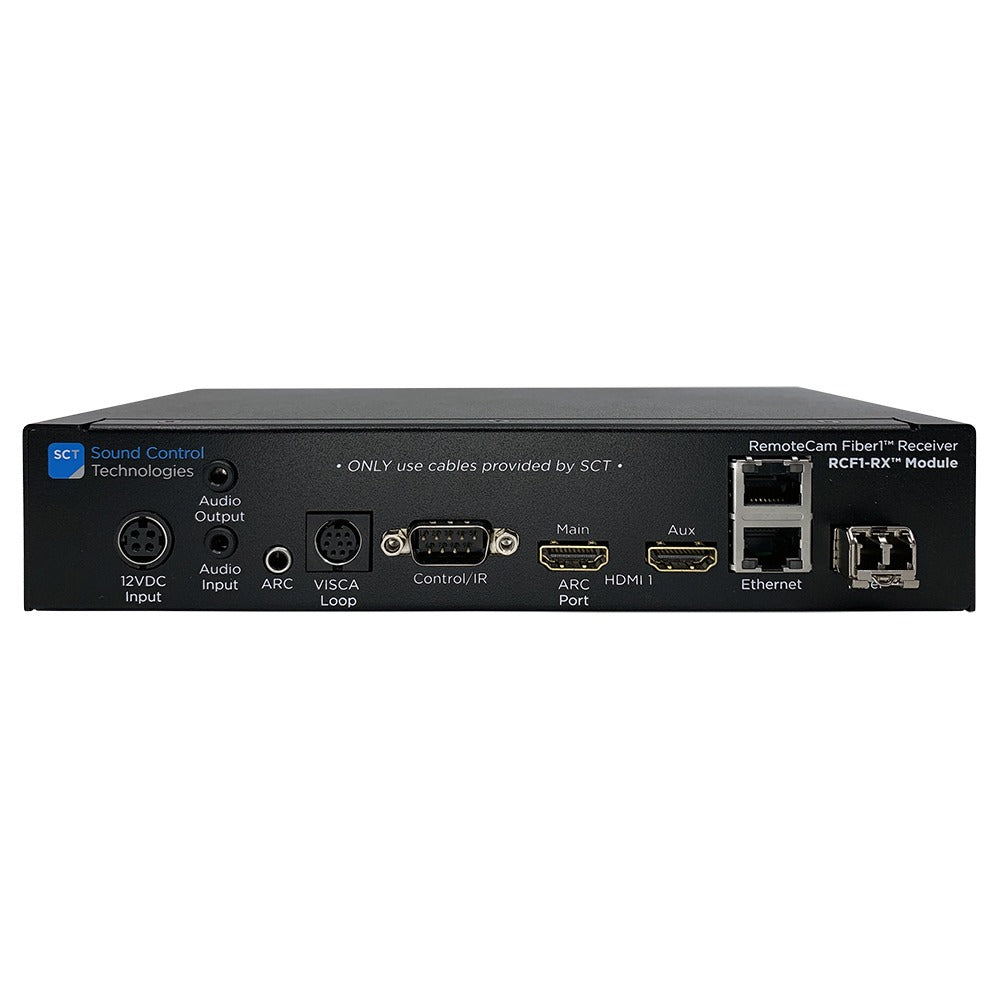

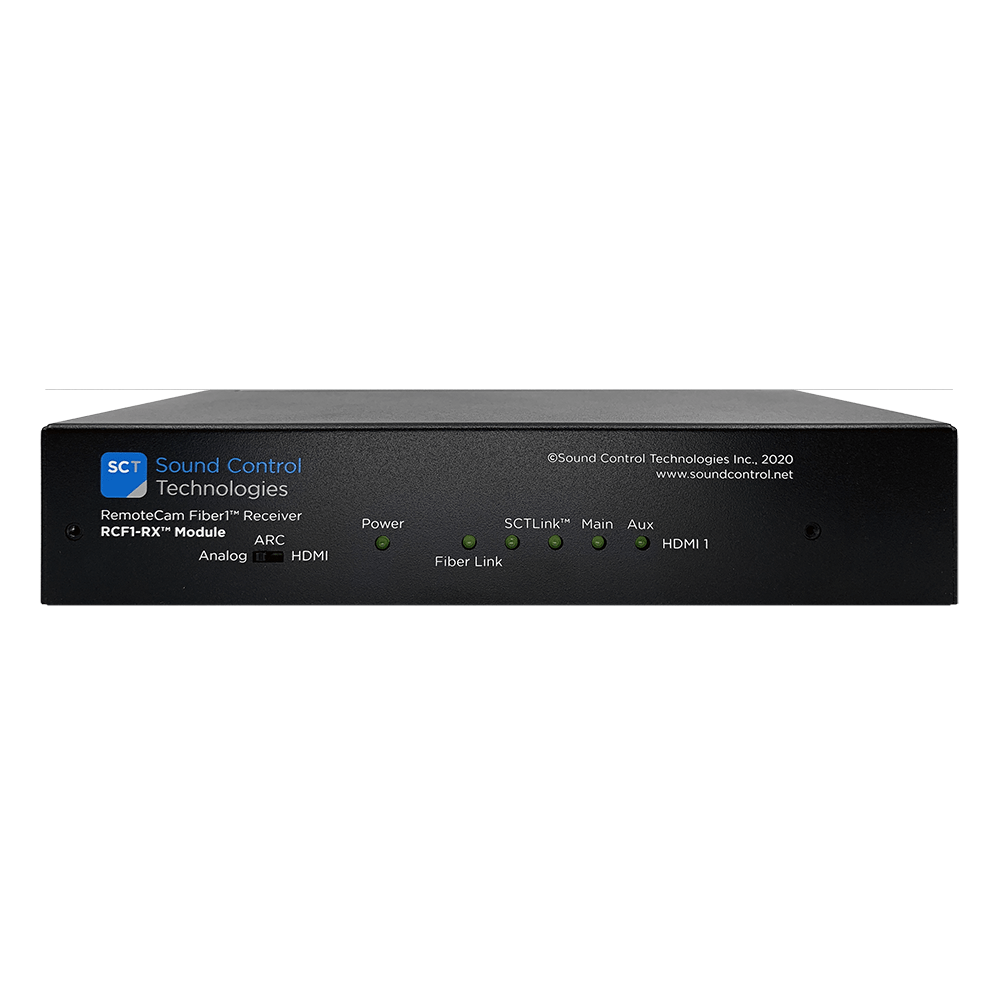

In an RCF1 system, the receiver module sits at the codec end and performs fiber-to-signal conversion, delivering HDMI video, Ethernet control, VISCA, 12V power output, ARC/analog audio I/O, and HDMI distribution amp output to the codec and associated equipment. Replacing only the RCF1-RCVR restores system operation when the receiver module fails, without requiring replacement of the transmitter module or fiber cabling. The RCF1-RCVR is a like-for-like replacement engineered by Sound Control Technologies to match the original receiver specifications across all RCF1 system variants. Manufactured in USA/Taiwan. Sold as each unit.
Key Features
- RCF1-Specific Replacement — Drop-in replacement receiver for all RCF1 system variants (CW4, P60, E4P, UNI).
- Field-Replaceable Module — Restores RCF1 receiver failures without replacing the full system or fiber infrastructure.
- HDMI Fiber Reception — Receives and converts HDMI video from the fiber link at the codec end.
- Full Signal Restoration — Restores Ethernet control, VISCA, 12V power output, ARC/analog audio I/O, and HDMI distribution amp functionality.
- Commercial-Grade Part — Manufactured to original RCF1 receiver specifications for long-term reliability.
Typical Applications
- Boardroom
- Conference room
- Government space
- All-hands room
- Multi-purpose room
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | RCF1-RCVR |
| Module Type | Replacement Receiver (Codec End) |
| Compatible Systems | RCF1-CW4, RCF1-P60, RCF1-E4P, RCF1-UNI |
| Signal Functions Restored | HDMI Video, Ethernet Control, Serial VISCA Loop, 12V Power Output, ARC/Analog Audio I/O, HDMI Distribution Amp |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
| MSRP | $2,255 |
Frequently Asked Questions

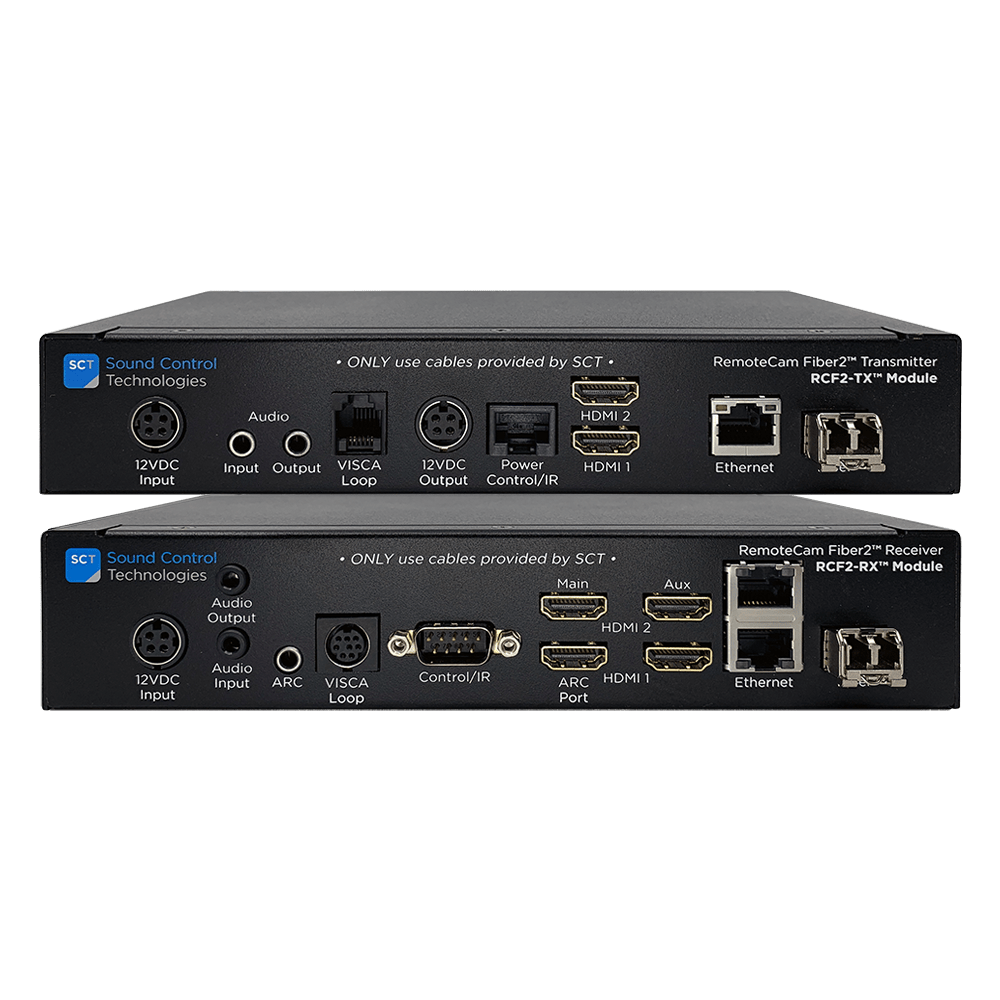

Is the RCF1-RCVR compatible with the RCF2 system?
No. The RCF1-RCVR is a replacement for the RCF1 receiver only. RCF2 systems require the RCF2-RCVR. The modules are not interchangeable between RCF1 and RCF2 systems.
Which RCF1 system variants does this module replace?
The RCF1-RCVR is compatible with all RCF1 system variants: RCF1-CW4, RCF1-P60, RCF1-E4P, and RCF1-UNI. Contact Creation Networks to confirm before ordering.

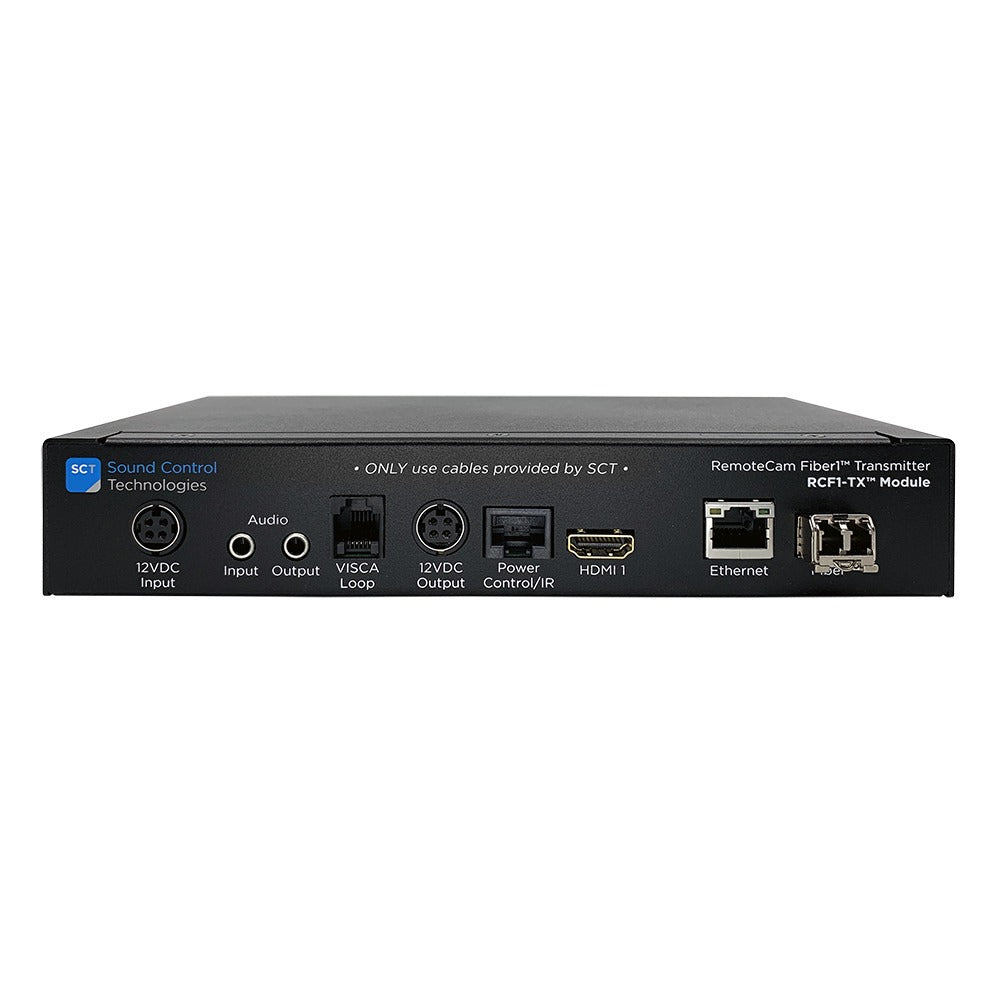

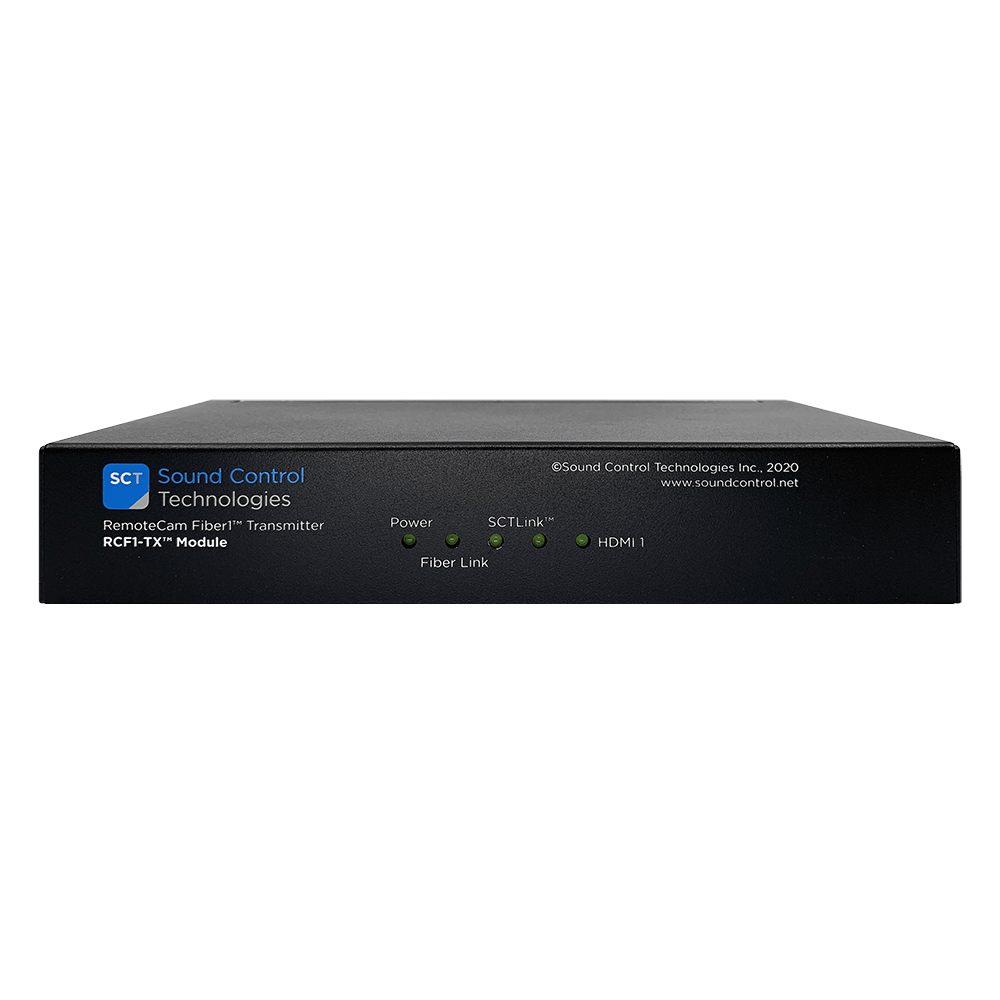

Do I need the RCF1-RCVR or the RCF1-XMTR?
The RCF1-RCVR is the codec-end module. If the failure is at the camera end, you need the RCF1-XMTR. Contact Creation Networks for diagnostic support.
What is the warranty on this replacement module?
Contact Creation Networks for current Sound Control Technologies warranty terms applicable to the RCF1-RCVR.
