Sound Control Technologies RTK-X57-TX – Replacement Transmitter Module for RTK-X57
Sound Control Technologies RTK-X57-TX – Replacement Transmitter Module for RTK-X57 is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Sound Control Technologies RTK-X57-TX – Replacement Transmitter Mod...
Product Overview
The Sound Control Technologies RTK-X57-TX is the replacement transmitter module for the RTK-X57 RemoteTableKit conference table extension system for Poly Studio X50, X52, X70, and Studio Video Bar. As the table-end transmitter, it provides the user-facing connections at the conference table — USB-C for BYOM, video, audio, Ethernet, and PoE for touch panels — and communicates over the CAT cable to the RTK-X57-RX at the codec end. It allows field replacement of a failed transmitter without purchasing a complete new kit.
Product Description

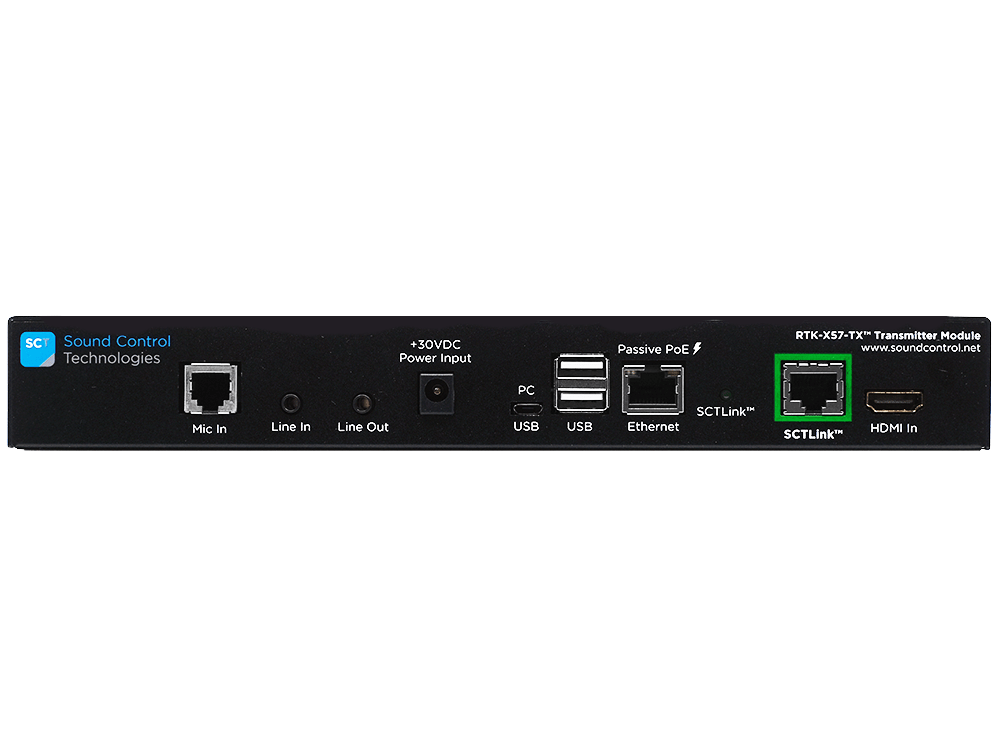

The RTK-X57-TX is the table-end transmitter component in RTK-X57 installations. It carries all signals — including BYOM USB-C, video, audio, RS-232 control, USB, and Ethernet — from the table surface to the RTK-X57-RX receiver at the codec or rack location over a single CAT cable. PoE output at the TX supports Poly TC8 and TC10 touch panels, and the Poly Expansion Mic is also supported.
The RTK-X57-TX is a plug-in replacement with no programming or configuration required. It is suitable for field repair of RTK-X57 systems and for spare inventory in facilities managing multiple Poly X-series conference rooms. MSRP: $1,460. Country of origin: USA/Taiwan.
Key Features
- Replacement RTK-X57 Transmitter — Direct drop-in replacement for the table-end transmitter in any RTK-X57 installation.
- Full Signal Output — Carries video, audio, USB, Ethernet, RS-232 control, and BYOM USB-C from the table to the CAT cable run.
- PoE for Touch Panels — Delivers PoE to Poly TC8 and TC10 touch panels from the table unit.
- Poly Expansion Mic Support — Compatible with Poly Expansion Mic connections at the table end.
- Plug-In Replacement — No programming or reconfiguration required when paired with an existing RTK-X57-RX.
Typical Applications
- Field replacement of a failed RTK-X57-TX in a Poly X50/X70 conference room
- Spare transmitter for facilities with multiple Poly Studio X-series rooms using RTK-X57 kits
- Component repair without full kit replacement cost
Technical Specifications
| Specification | Detail |
|---|---|
| Model/SKU | RTK-X57-TX |
| Module Type | Replacement Transmitter (Table End) |
| Parent System | RTK-X57 RemoteTableKit |
| Compatible Codecs | Poly Studio X50, X52, X70, Studio Video Bar |
| Compatible Receiver | RTK-X57-RX |
| Touch Panel PoE | Poly TC8, TC10 |
| MSRP | $1,460 |
| Unit of Measure | Each |
| Country of Origin | USA/Taiwan |
Frequently Asked Questions
Is the RTK-X57-TX compatible with my existing RTK-X57-RX?
Yes. The RTK-X57-TX is a direct plug-in replacement for the table-end transmitter in any RTK-X57 installation and pairs with the existing RX without reconfiguration.
Does replacement require any programming?
No. The RTK-X57-TX is plug-in compatible with the RTK-X57-RX — no programming steps are required.
Is the RTK-X57-RX sold separately?
Yes. The RTK-X57-RX is available as a separate replacement module through Creation Networks.
What warranty applies?
Contact Creation Networks for current Sound Control Technologies warranty terms for the RTK-X57-TX.
