Sound Control Technologies RCU2S-CE – RemoteCamUSB2 Camera-End Replacement Module

Product Overview

The Sound Control Technologies RCU2S-CE is the camera-end replacement module for the RCU2S RemoteCamUSB2 camera extension platform. The RCU2S extends USB 2.0 video, RS-232 control, and camera power up to 300 feet over a single CAT cable between the host system and a USB conference camera. This replacement module lets AV integrators and facilities managers restore a failed RCU2S installation by swapping only the camera-side module, keeping the head-end module and installed cabling in place.

Product Description

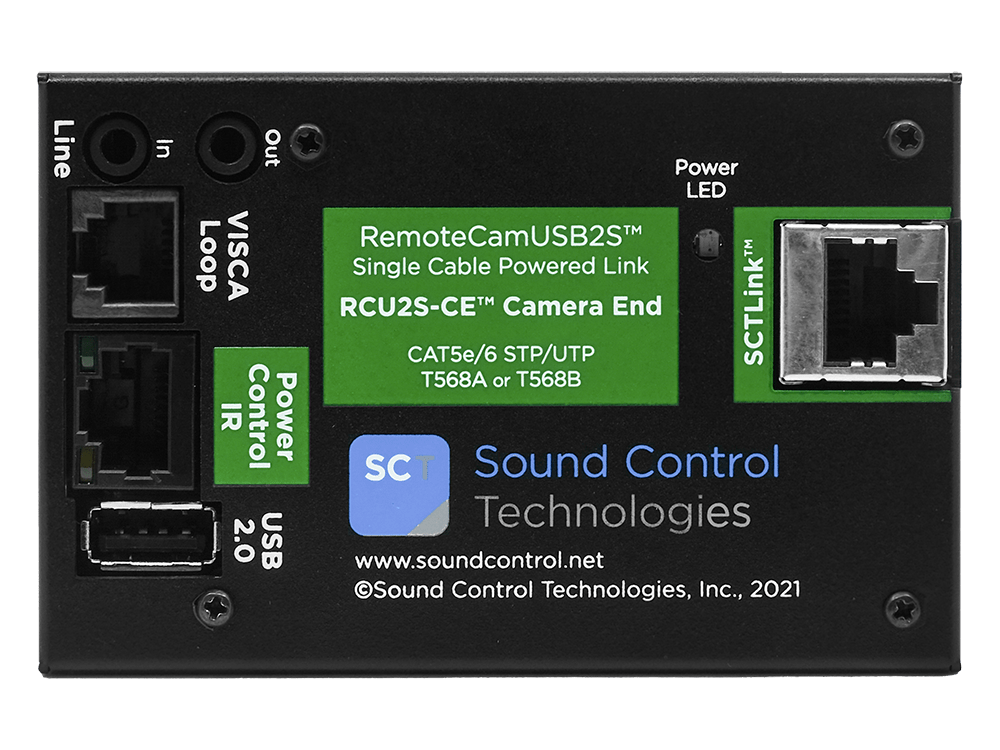

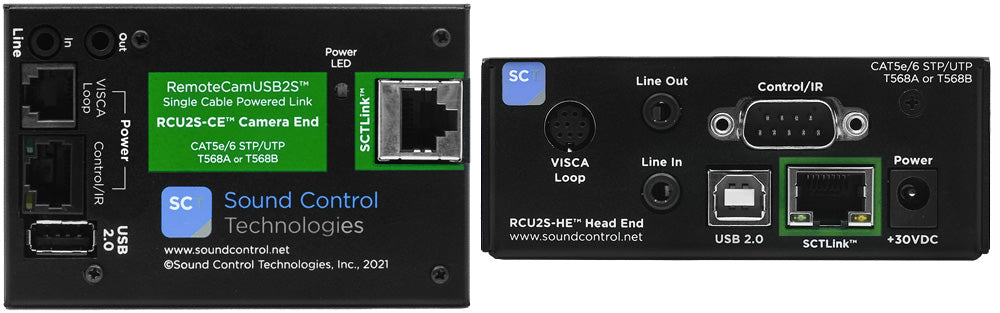

In an RCU2S system, the camera-end module mounts at the camera position — on a wall mount, ceiling mount, or camera shelf — and links to the RCU2S-HE head-end module at the rack over the SCTLink CAT cable. The module provides the USB camera with its data connection, RS-232 control, and operating power on the single link, supporting USB cameras from Poly, Logitech, Jabra, Panasonic, AVer, Biamp, and other manufacturers depending on kit configuration. When troubleshooting isolates a fault to the camera side, replacing only the RCU2S-CE restores full system operation without touching the rack-side electronics, the camera mount, or the field-run CAT link. The module is a like-for-like replacement built to the original RCU2S specification and pairs directly with the installed head-end module. Because it installs at the camera position, the swap can typically be completed at the mount using the original camera-specific cables, keeping service time and room downtime minimal.

Key Features

• RCU2S-Specific Replacement — Drop-in camera-end module for RCU2S RemoteCamUSB2 camera extension systems.
• Field-Replaceable — Restores a failed system without replacing the head-end module, power supply, or installed CAT cabling.
• USB 2.0 Transport — Maintains USB 2.0 camera video to the host over the SCTLink connection up to 300 feet.
• Camera Power and Control — Continues delivering camera power and RS-232 control at the camera position over the single link cable.
• Mount-Side Installation — Installs at the camera wall, ceiling, or shelf position for a fast service swap.
• Like-for-Like Pairing — Pairs directly with the existing RCU2S-HE head-end module over the installed link cable.

Typical Applications

• Conference room
• Boardroom
• Training room
• Huddle room
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

Is the RCU2S-CE compatible with RCU2E or RCU3SL systems?

No. The RCU2S-CE is the camera-end replacement specifically for RCU2S (RS-232 control) systems. RCU2E (Ethernet control) and RCU3SL (USB 3.2) platforms require their own modules.

How do I know whether I need the RCU2S-CE or the RCU2S-HE?

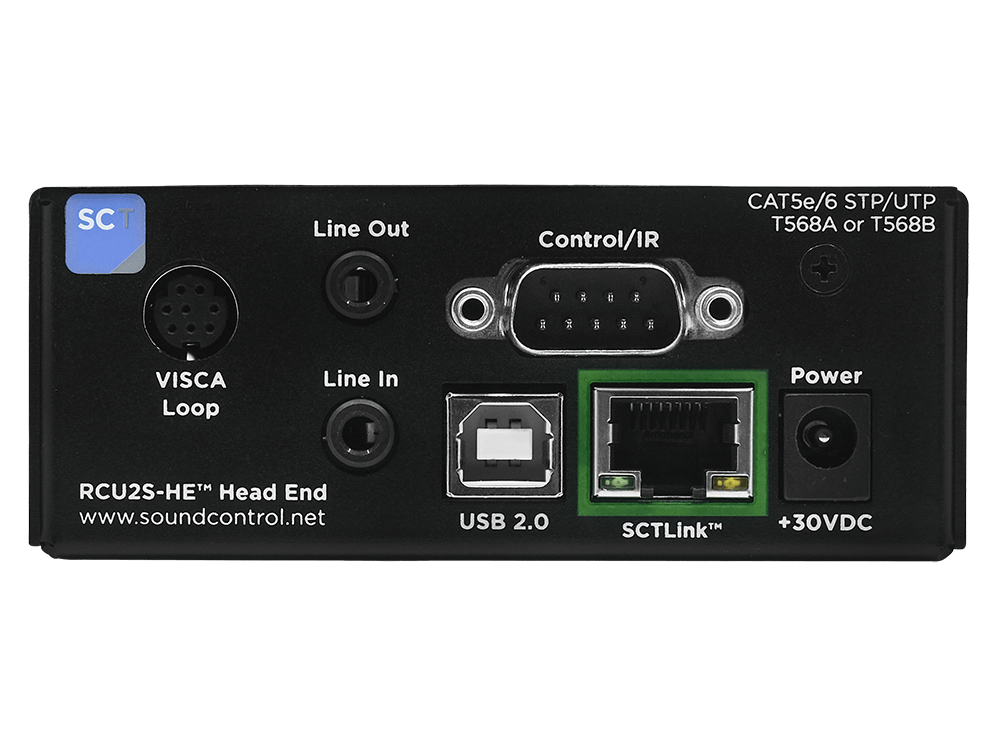

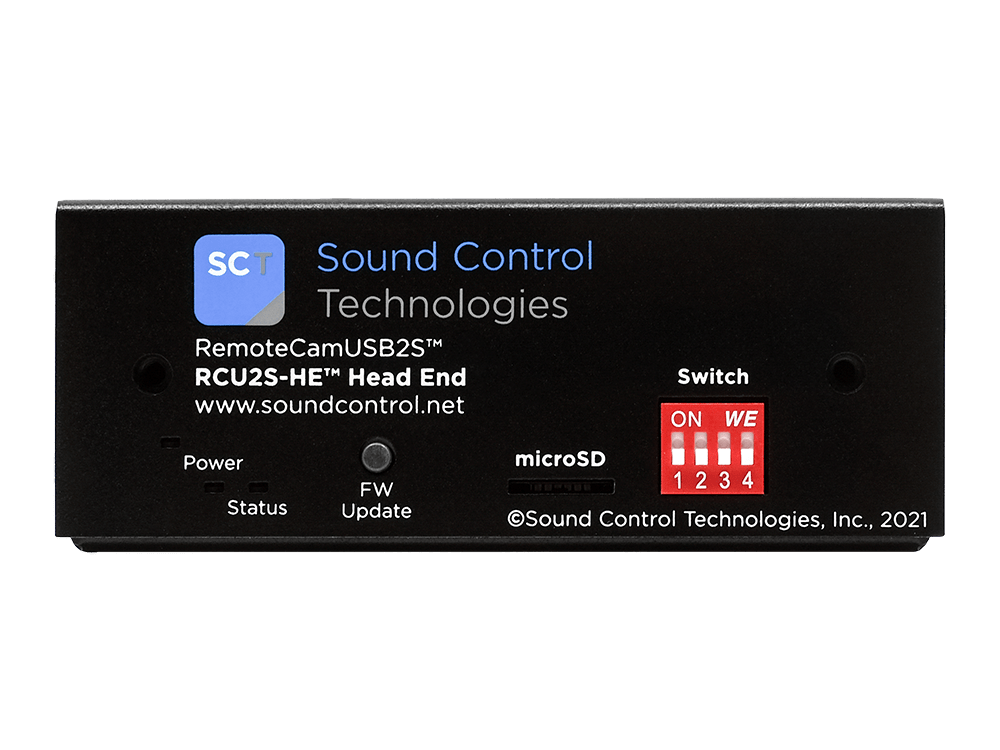

The RCU2S-CE is the camera-side module; the RCU2S-HE is the host-side (codec/PC end) module. If the fault is at the equipment rack, you need the RCU2S-HE. Contact Creation Networks for diagnostic support.

Will the RCU2S-CE pair with my existing head-end module and cabling?

Yes. It is a like-for-like replacement that pairs directly with the installed RCU2S-HE over your existing CAT link cable.

Are my camera connection cables reused?

Yes. The replacement module uses the camera-specific cables from your original RCU2S kit. Contact Creation Networks if any cables also need replacement.

What warranty applies to this replacement module?

Sound Control Technologies provides a standard advance replacement limited warranty. Contact Creation Networks for current warranty terms.
