Sound Control Technologies RC8-HE – RemoteCam8 Head-End Replacement Module

Product Overview

The Sound Control Technologies RC8-HE is the head-end replacement module for the RemoteCam8 camera extension system used with the Cisco Quad Camera. The RemoteCam8 platform extends power, dual HDMI video, Ethernet control, and dual-channel audio over a single CAT6 STP cable from 10m to 100m between the codec rack and the camera. This replacement module lets AV integrators and facilities managers restore a failed RemoteCam8 installation by swapping only the rack-side head-end module, without replacing the camera-end module or the installed cabling.

Product Description

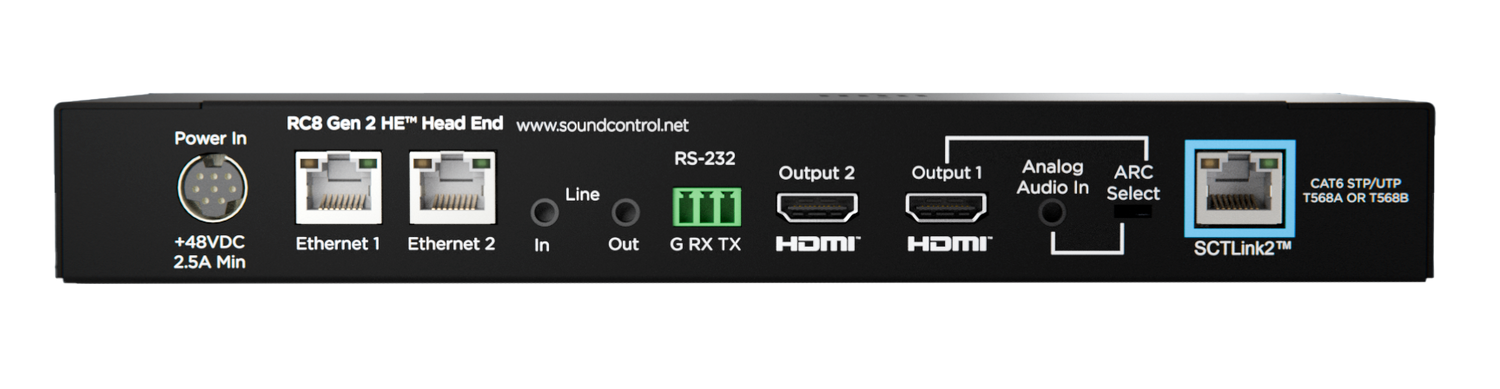

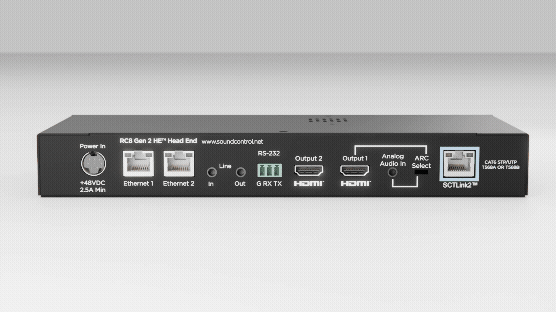

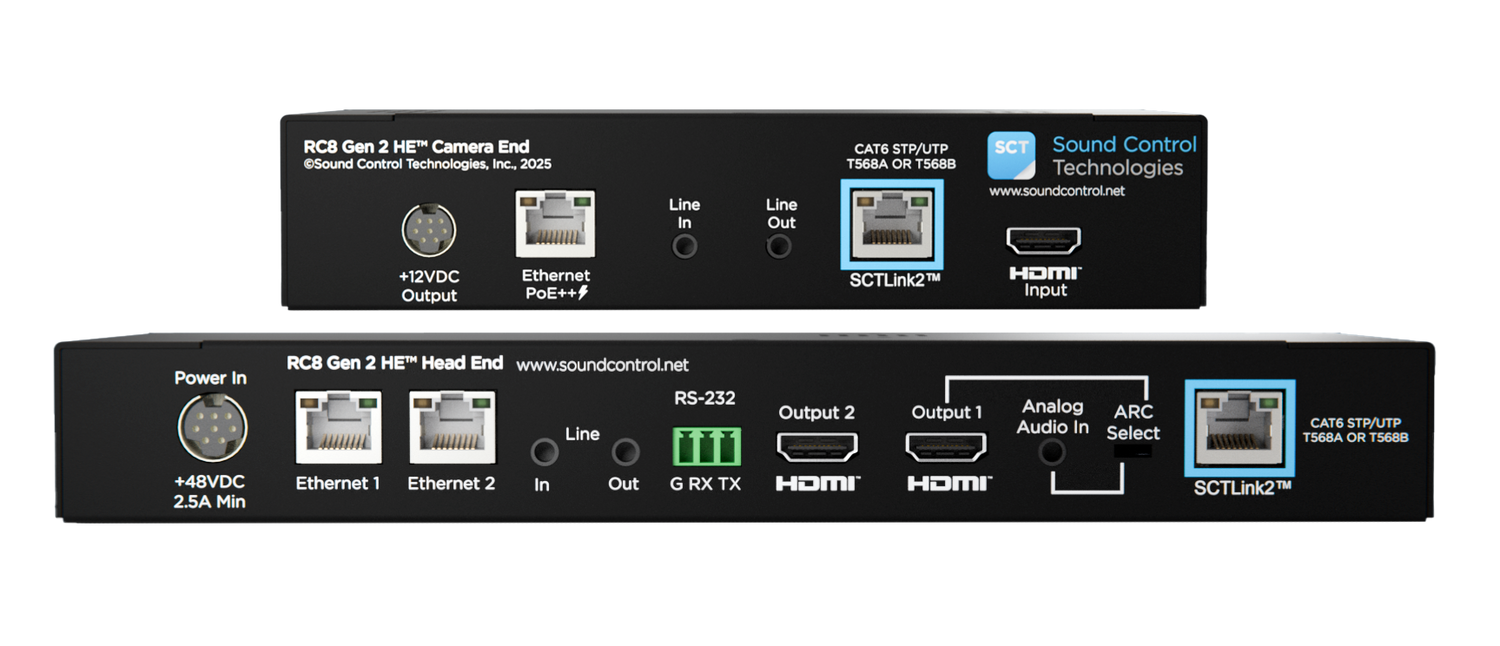

In a RemoteCam8 system, the RC8-HE head-end module sits in the equipment rack near the Cisco SX80, Codec Plus, or Codec Pro codec and links to the RC8-CE camera-end module at the Cisco Quad Camera over the SCTLink CAT6 STP cable. The head end provides two sets of independent 1x2 distribution-amplified HDMI outputs, a 10/100 two-port Layer 2 Ethernet switch for control expansion, and a selectable ARC/analog audio input that sends audio to the Cisco Quad Camera speaker over the existing HDMI channel. When a head-end failure is diagnosed, replacing only the RC8-HE restores full system operation while the existing RC8-CE, WPS-48 power supply, and cabling stay in place. The module is a like-for-like replacement built to the original RemoteCam8 specification and pairs directly with the installed camera-end module. It mounts on the RC-RKM 2RU rack shelf included with RemoteCam8 kits for proper ventilation.

Key Features

• RemoteCam8-Specific Replacement — Drop-in head-end module for RemoteCam8 Cisco Quad Camera extension systems.
• Field-Replaceable — Restores a failed system without replacing the camera-end module, power supply, or installed CAT6 cabling.
• Dual HDMI Distribution Outputs — Provides two sets of independent 1x2 DA HDMI outputs at up to 1920x1080p60 with HDCP support.
• Two-Port Ethernet Switch — Built-in 10/100 Layer 2 switch supports control expansion at the rack.
• ARC/Analog Audio Input — 3.5mm TRS stereo input sends audio to the Cisco Quad Camera speaker via the existing HDMI channel.
• Rack-Mount Ready — Mounts on the RC-RKM 2RU rack shelf for proper ventilation and clean cabling.
• Firmware Pass-Through — Maintains manufacturer firmware update pass-through from codec to camera.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

Is the RC8-HE compatible with other RemoteCam platforms?

No. The RC8-HE is the head-end replacement specifically for RemoteCam8 systems. RemoteCam7, RemoteCam6, and RemoteCam5 systems require their own HE modules; the platforms are not interchangeable.

How do I know whether I need the RC8-HE or the RC8-CE?

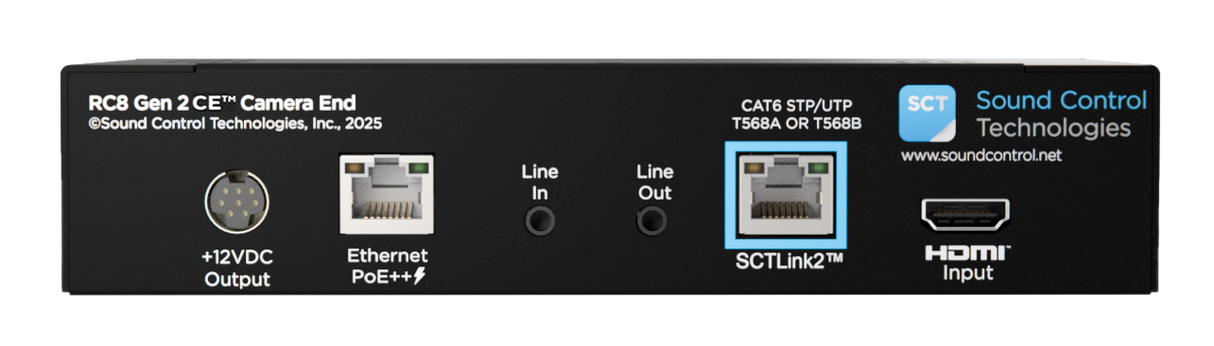

The RC8-HE is the rack-side (codec end) module; the RC8-CE is the camera-side module. If the fault is at the Cisco Quad Camera location, you need the RC8-CE. Contact Creation Networks for diagnostic support.

Will the RC8-HE pair with my existing RC8-CE and cabling?

Yes. The RC8-HE is a like-for-like replacement that pairs directly with the installed RC8-CE camera-end module over your existing CAT6 STP SCTLink cable.

Does the RC8-HE include a power supply?

The RemoteCam8 system uses the WPS-48 power supply. If your existing WPS-48 is functional, you only need the replacement module. Contact Creation Networks if you also need a replacement power supply.

What warranty applies to this replacement module?

Sound Control Technologies provides a 3-year standard advance replacement limited warranty. Contact Creation Networks for current warranty terms.
