Sound Control Technologies RC6-HE – RemoteCam6 Head-End Replacement Module

Product Overview

The Sound Control Technologies RC6-HE is the head-end replacement module for the RemoteCam6 camera extension system used with the Cisco SpeakerTrack 60. The RemoteCam6 platform extends camera power, dual HDMI video, and Ethernet control over a single CAT6 cable from 10m to 100m between the codec rack and the camera assembly. This replacement module lets AV integrators and facilities managers restore a failed RemoteCam6 installation by replacing only the rack-side head-end module rather than the complete system.

Product Description

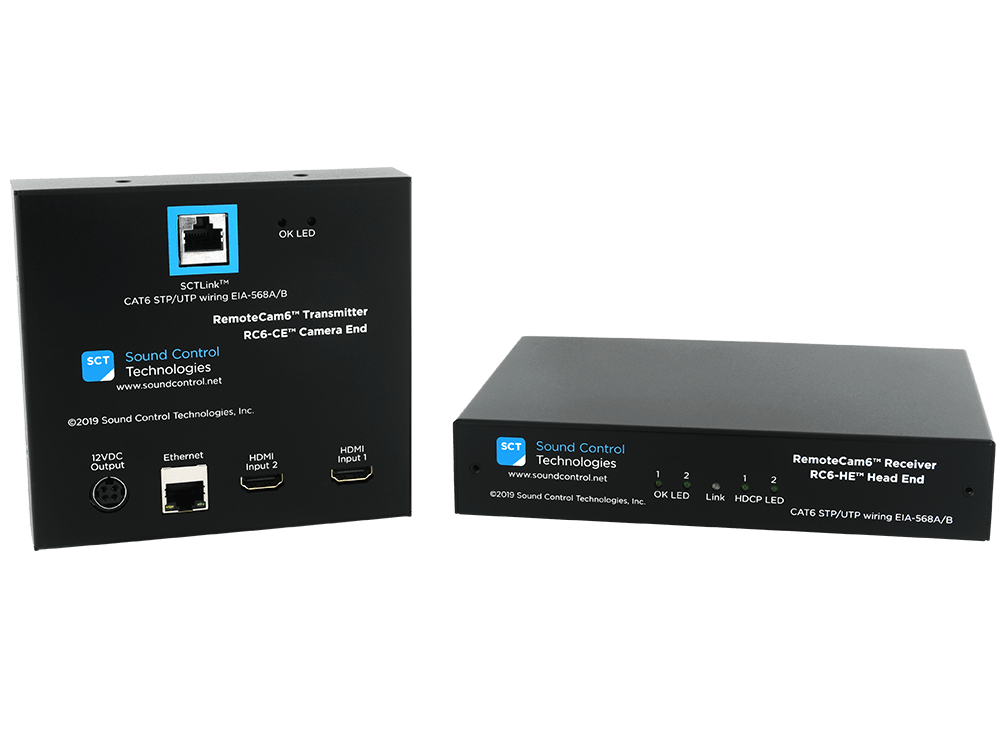

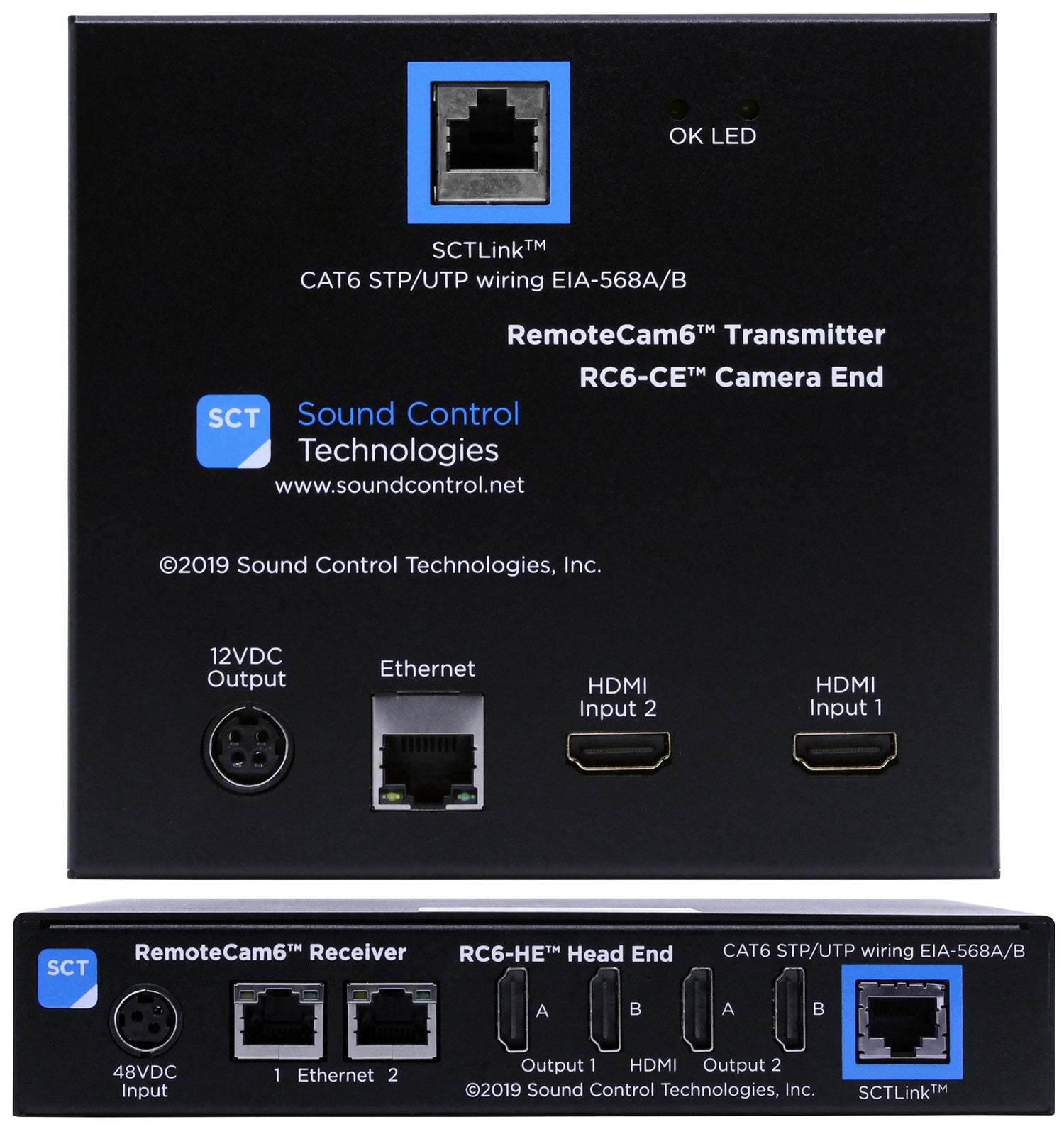

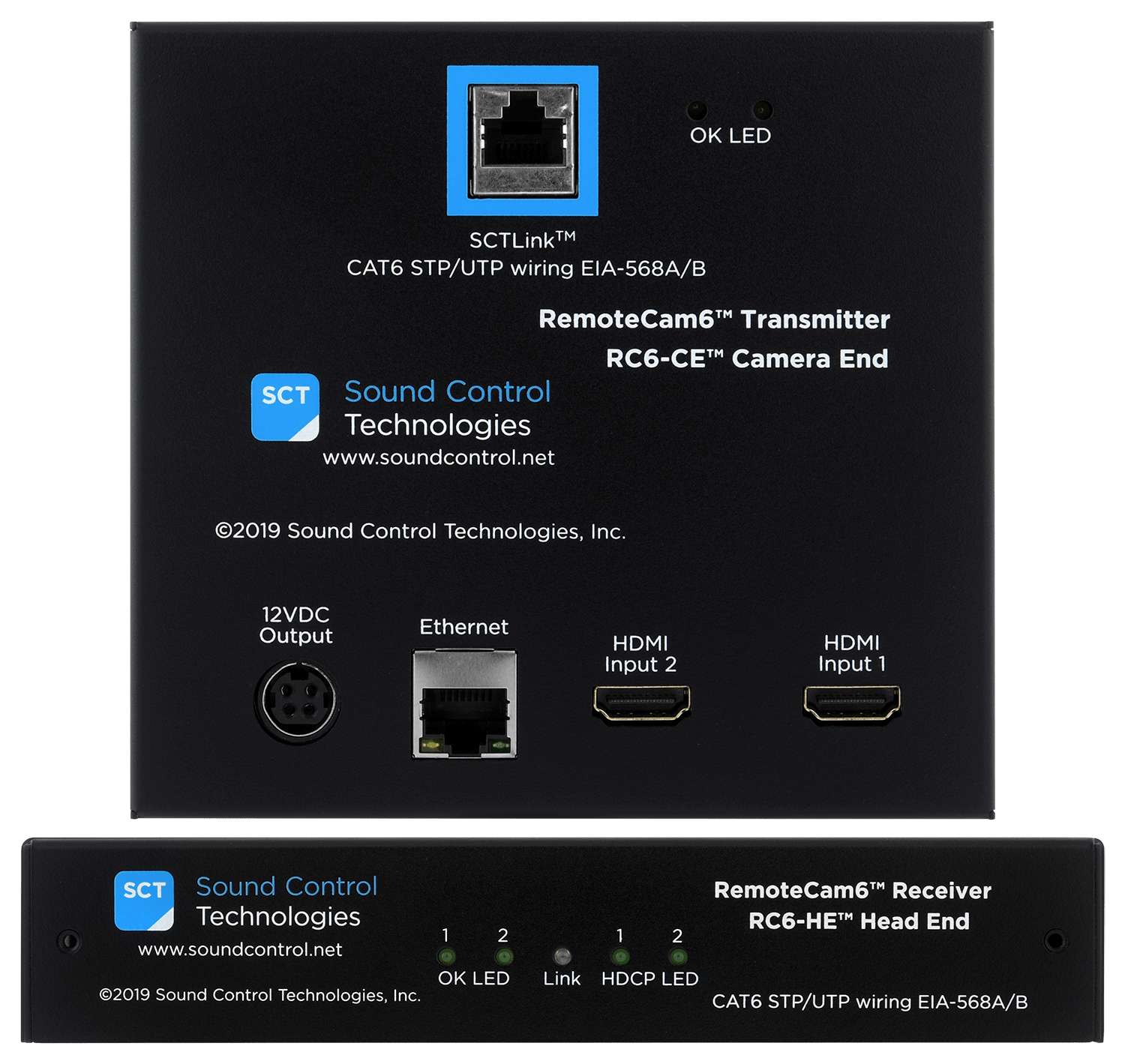

In a RemoteCam6 system, the RC6-HE head-end module sits in the equipment rack near the Cisco SX80, Codec Plus, or Codec Pro codec and links to the RC6-CE camera-end module at the SpeakerTrack 60 assembly over the SCTLink CAT6 cable. The head end provides two sets of independent 1x2 distribution-amplified HDMI outputs at up to 1920x1080p60 with HDCP support and a 10/100 two-port Layer 2 Ethernet switch for control expansion. Because the RemoteCam6 platform has reached end of life as a complete kit, the RC6-HE replacement module is the practical path to keeping an installed SpeakerTrack 60 room in service: the existing RC6-CE, WPS-48 power supply, and CAT6 cabling stay in place. The module is a like-for-like replacement built to the original RemoteCam6 specification, maintains firmware update pass-through from codec to camera, and mounts on the RC-RKM 2RU rack shelf for proper ventilation.

Key Features

• RemoteCam6-Specific Replacement — Drop-in head-end module for RemoteCam6 Cisco SpeakerTrack 60 extension systems.
• Field-Replaceable — Restores a failed system without replacing the camera-end module, power supply, or installed CAT6 cabling.
• Dual HDMI Distribution Outputs — Two sets of independent 1x2 DA HDMI outputs at up to 1920x1080p60 with HDCP support.
• Two-Port Ethernet Switch — Built-in 10/100 Layer 2 switch supports control expansion at the rack.
• Firmware Pass-Through — Maintains manufacturer firmware update pass-through from the Cisco codec to the SpeakerTrack 60.
• Rack-Mount Ready — Mounts on the RC-RKM 2RU rack shelf for proper ventilation and clean cabling.
• Protects EOL Installations — Extends the service life of existing RemoteCam6 rooms without a full platform redesign.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

The RemoteCam6 platform is end of life — can I still repair my system?

Yes. The RC6-HE replacement module lets you restore an installed RemoteCam6 SpeakerTrack 60 system without replacing the camera-end module, power supply, or cabling.

How do I know whether I need the RC6-HE or the RC6-CE?

The RC6-HE is the rack-side (codec end) module; the RC6-CE is the camera-side module at the SpeakerTrack 60 assembly. If the fault is at the camera, you need the RC6-CE. Contact Creation Networks for diagnostic support.

Will the RC6-HE pair with my existing RC6-CE?

Yes. The RC6-HE is a like-for-like replacement that pairs directly with the installed RC6-CE camera-end module over your existing CAT6 SCTLink cable.

Is the RC6-HE interchangeable with RC8 or RC7 modules?

No. Each RemoteCam platform uses its own matched HE and CE modules. The RC6-HE works only within RemoteCam6 systems.

What warranty applies to this replacement module?

Sound Control Technologies provides a 3-year standard advance replacement limited warranty. Contact Creation Networks for current warranty terms.
