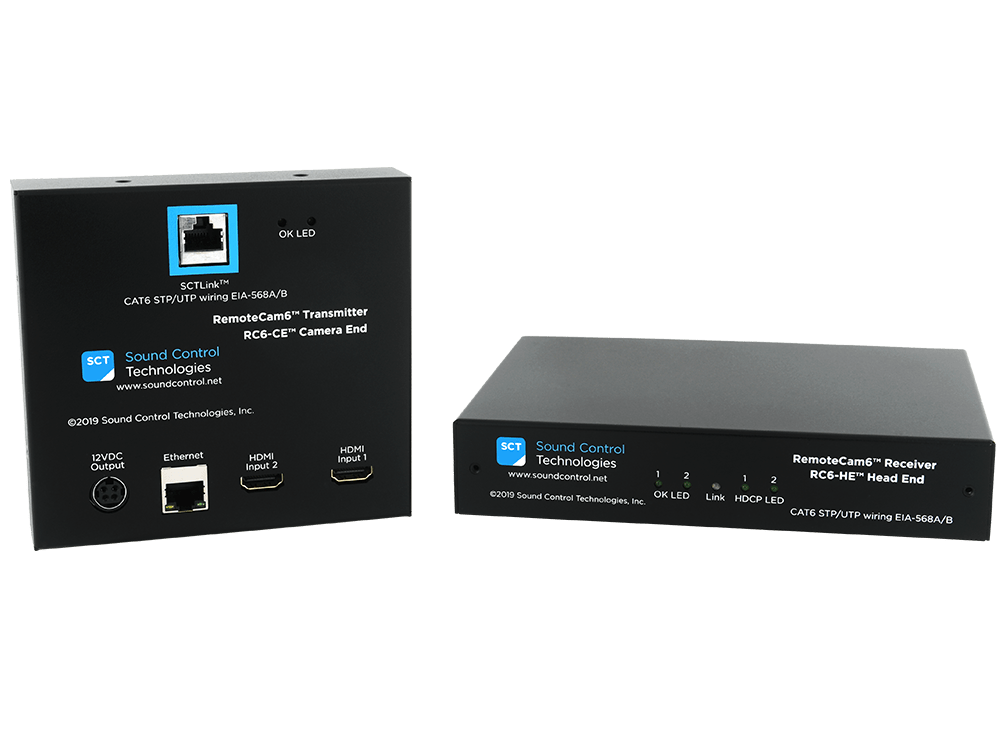

Sound Control Technologies RC6-CE – RemoteCam6 Camera-End Replacement Module

Product Overview

The Sound Control Technologies RC6-CE is the camera-end replacement module for the RemoteCam6 extension system used with the Cisco SpeakerTrack 60. The RemoteCam6 platform carries camera power, dual HDMI video, and Ethernet control over a single CAT6 cable from 10m to 100m. This replacement module lets AV integrators and facilities managers bring a failed RemoteCam6 installation back online by replacing only the camera-side module, leaving the head-end module and installed cabling untouched.

Product Description

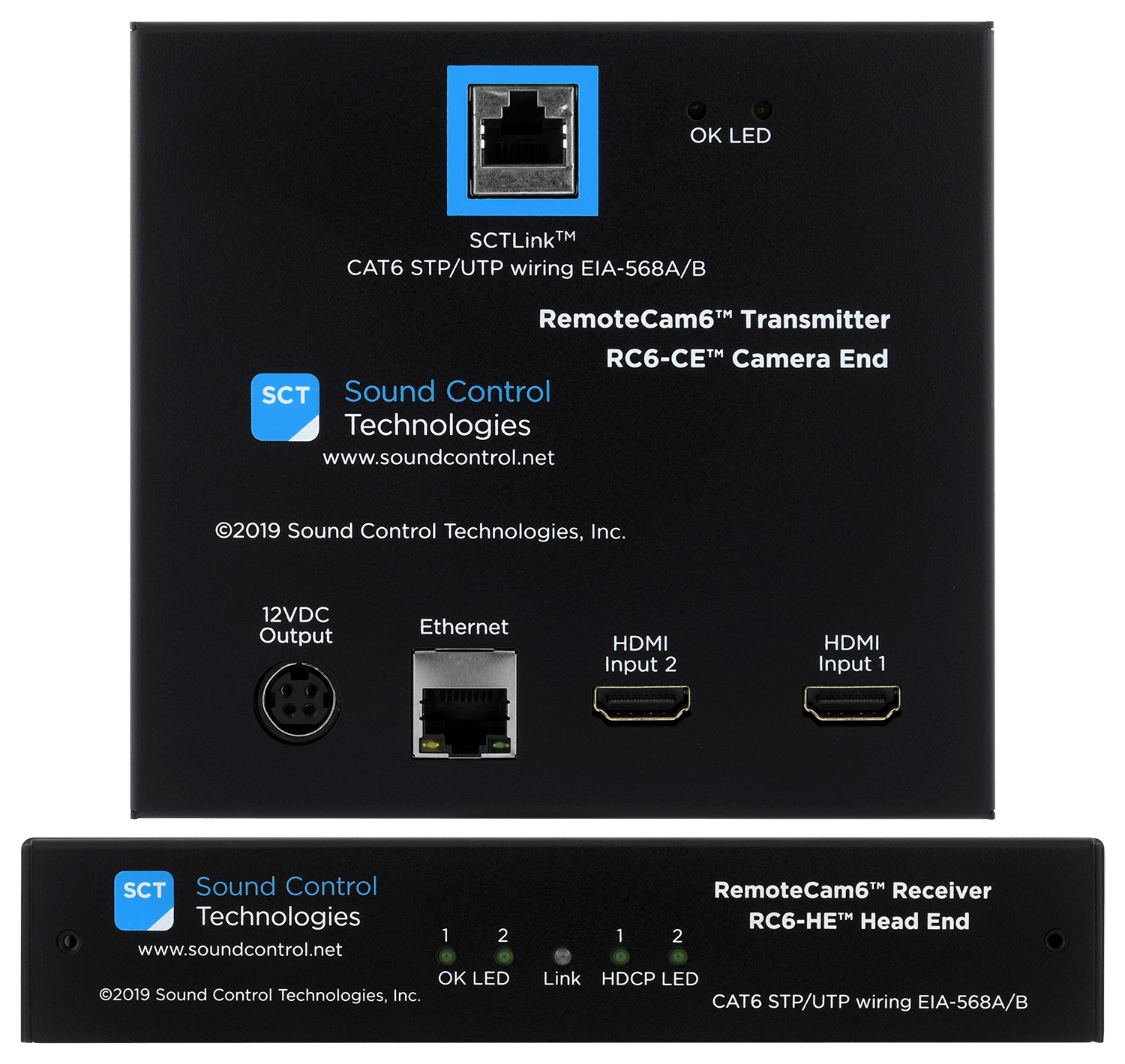

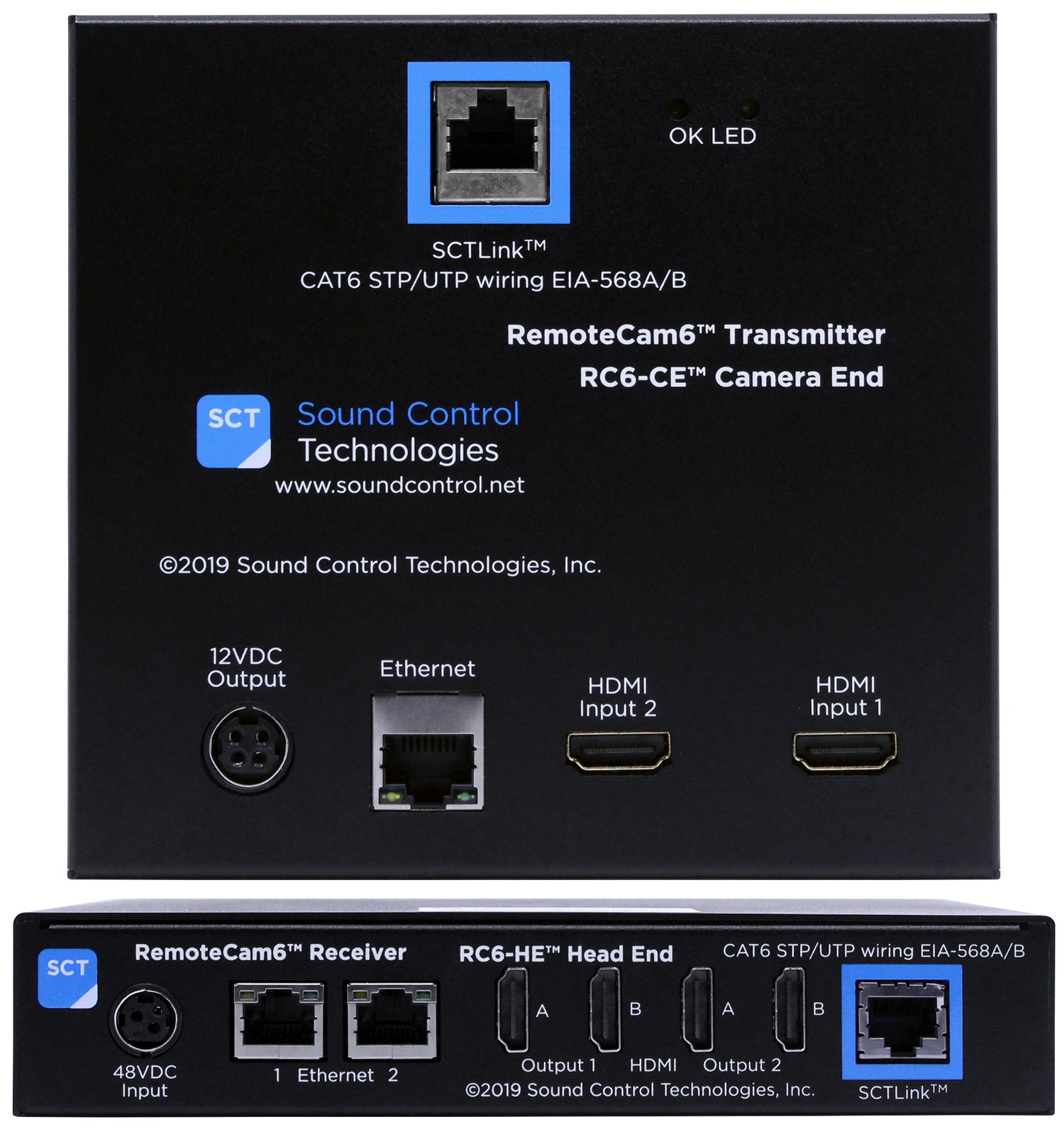

In a RemoteCam6 system, the RC6-CE camera-end module mounts at the Cisco SpeakerTrack 60 assembly — typically integrated into an RCA articulating wall mount or RC-CUBBY on-wall mount — and links to the RC6-HE head-end module at the codec rack over the SCTLink CAT6 cable. The camera end accepts two independent HDMI inputs from the SpeakerTrack 60's dual cameras, provides a single 10/100 Ethernet port for camera control, and delivers power to the camera assembly over the link so no factory power supply is required at the camera location. Because the RemoteCam6 platform has reached end of life as a complete kit, the RC6-CE replacement module is the practical way to keep an existing SpeakerTrack 60 room in service: the installed RC6-HE, WPS-48 power supply, and CAT6 cabling all remain. The module is a like-for-like replacement built to the original RemoteCam6 specification and maintains firmware update pass-through from the Cisco codec to the camera assembly.

Key Features

• RemoteCam6-Specific Replacement — Drop-in camera-end module for RemoteCam6 Cisco SpeakerTrack 60 extension systems.
• Field-Replaceable — Restores a failed system without replacing the head-end module, power supply, or installed CAT6 cabling.
• Dual HDMI Inputs — Accepts two independent HDMI inputs from the SpeakerTrack 60 cameras at up to 1920x1080p60 with HDCP support.
• Camera Power Over the Link — Powers the SpeakerTrack 60 assembly with no factory camera PSU required at the camera position.
• Ethernet Camera Control — Single 10/100 port carries Ethernet control to the camera assembly.
• Mount Integration — Designed to integrate with RCA articulating and RC-CUBBY on-wall mounts for a clean installation.
• Protects EOL Installations — Extends the service life of existing RemoteCam6 rooms without a full platform redesign.

Typical Applications

• Boardroom
• Conference room
• All-hands room
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

The RemoteCam6 platform is end of life — can I still repair my system?

Yes. The RC6-CE replacement module lets you restore an installed RemoteCam6 SpeakerTrack 60 system without replacing the head-end module, power supply, or cabling.

How do I know whether I need the RC6-CE or the RC6-HE?

The RC6-CE is the camera-side module at the SpeakerTrack 60 assembly; the RC6-HE is the rack-side (codec end) module. If the fault is at the equipment rack, you need the RC6-HE. Contact Creation Networks for diagnostic support.

Will the RC6-CE pair with my existing RC6-HE?

Yes. The RC6-CE is a like-for-like replacement that pairs directly with the installed RC6-HE head-end module over your existing CAT6 SCTLink cable.

Does the RC6-CE power the SpeakerTrack 60?

Yes. Power is delivered over the SCTLink from the head end and fed to the camera assembly by the RC6-CE, so no factory power supply is needed at the camera position.

What warranty applies to this replacement module?

Sound Control Technologies provides a 3-year standard advance replacement limited warranty. Contact Creation Networks for current warranty terms.
