Sound Control Technologies RC5+HE – RemoteCam5+ Head-End Replacement Module

Product Overview

The Sound Control Technologies RC5+HE is the head-end replacement module for the RemoteCam5+ camera extension system. The RemoteCam5+ platform delivers 66W PoE++ power, uncompressed 4K60 4:4:4 HDMI video, and IP/Ethernet camera control over a single CAT cable from 10m to 100m. This replacement module lets AV integrators and facilities managers restore a failed RemoteCam5+ installation by replacing only the rack-side head-end module, without replacing the camera-end module or the installed cabling.

Product Description

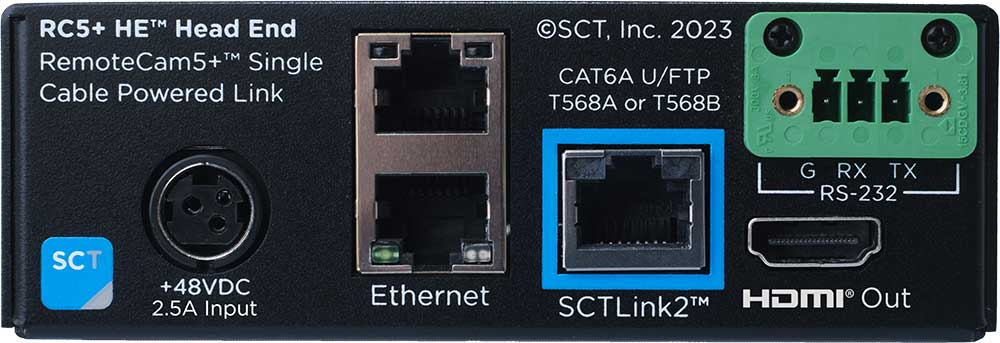

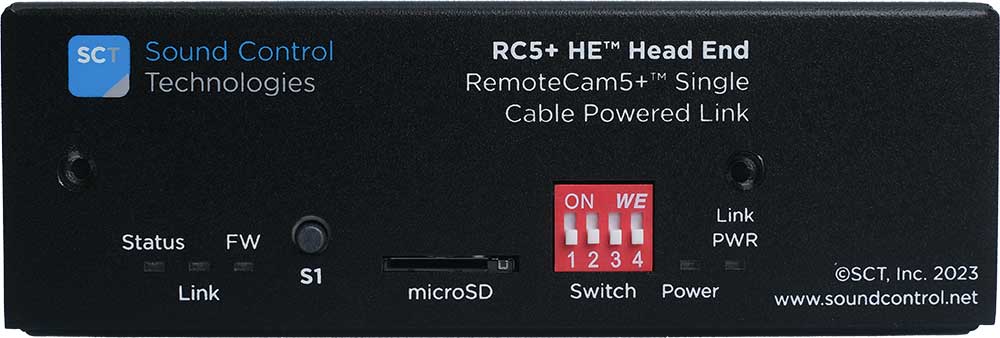

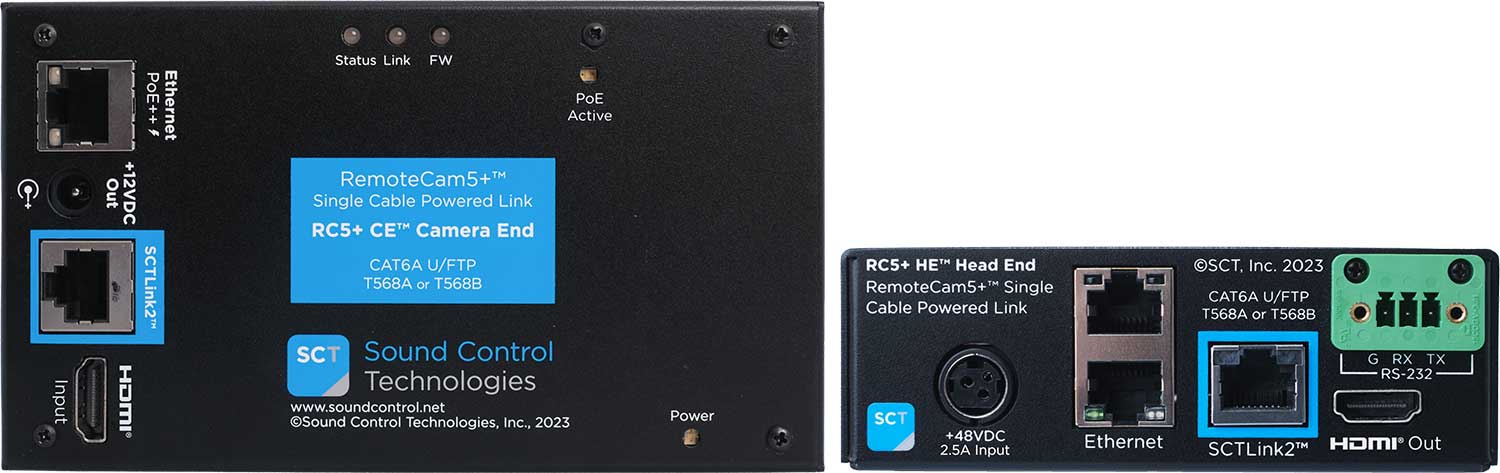

In a RemoteCam5+ system such as the RC5+UNI kit, the RC5+ HE head-end module sits in the equipment rack near the codec or production switcher and links to the RC5+ CE camera-end module at the camera over the SCTLink CAT cable. The head end injects 66W PoE++ class power down the link to drive the camera and camera-end module, passes uncompressed 4K60 4:4:4 HDMI video to the codec, and carries IP/Ethernet control and manufacturer firmware updates to the camera. When a head-end failure is diagnosed, replacing only the RC5+HE restores full system operation while the existing RC5+ CE module, WPS-48 power supply, and cabling remain in place. The module is a like-for-like replacement built to the original RemoteCam5+ specification and pairs directly with the installed camera-end module. It supports the same broad camera set as the RC5+ platform, including the Cisco Room Vision PTZ and PTZ 4K, Sony BRC/SRG series, Panasonic AW series, and Canon CR-N series.

Key Features

• RemoteCam5+-Specific Replacement — Drop-in head-end module for RC5+ platform kits such as the RC5+UNI.
• Field-Replaceable — Restores a failed system without replacing the camera-end module, power supply, or installed CAT cabling.
• Uncompressed 4K60 4:4:4 Video — Maintains full-bandwidth HDMI quality for broadcast and high-end collaboration installations.
• 66W PoE++ Power Injection — Drives the camera and camera-end module over the SCTLink with no power outlet required at the camera.
• IP/Ethernet Control Pass-Through — Carries camera control and manufacturer firmware updates from the codec to the camera.
• Rack-Mount Ready — Mounts on Sound Control Technologies rack shelves for clean equipment-room integration.
• Broad Camera Support — Compatible with the RC5+ supported camera list including Cisco, Sony, Panasonic, Canon, Lumens, AVer, and PTZOptics models.

Typical Applications

• Boardroom
• Conference room
• Broadcast studio
• Auditorium
• All-hands room
• Government space

Technical Specifications

Frequently Asked Questions

Is the RC5+HE compatible with RC5 Gen2 systems?

No. The RC5+HE is the head-end replacement for the RemoteCam5+ (RC5+) platform, which delivers 4K60 video and 66W PoE++. RC5 Gen2 systems use their own RC5-HE module; the platforms are not interchangeable.

How do I know whether I need the RC5+HE or the RC5+CE?

The RC5+HE is the rack-side (codec end) module; the RC5+CE is the camera-side module. If the fault is at the camera position, you need the RC5+CE. Contact Creation Networks for diagnostic support.

Will the RC5+HE pair with my existing RC5+CE?

Yes. The RC5+HE is a like-for-like replacement that pairs directly with the installed RC5+ CE camera-end module over your existing SCTLink CAT cable.

Does the RC5+HE include a power supply?

No. The RC5+ platform uses the WPS-48 power supply included with the original kit. If your existing WPS-48 is functional, you only need the replacement module.

What warranty applies to this replacement module?

Sound Control Technologies provides a 3-year standard advance replacement limited warranty. Contact Creation Networks for current warranty terms.
