Sound Control Technologies RC5+CE – RemoteCam5+ Camera-End Replacement Module

Product Overview

The Sound Control Technologies RC5+CE is the camera-end replacement module for the RemoteCam5+ camera extension system. The RemoteCam5+ platform delivers 66W PoE++ power, uncompressed 4K60 4:4:4 HDMI video, and IP/Ethernet camera control over a single CAT cable from 10m to 100m. This replacement module lets AV integrators and facilities managers restore a failed RemoteCam5+ installation by replacing only the camera-side module, leaving the head-end module and installed cabling in place.

Product Description

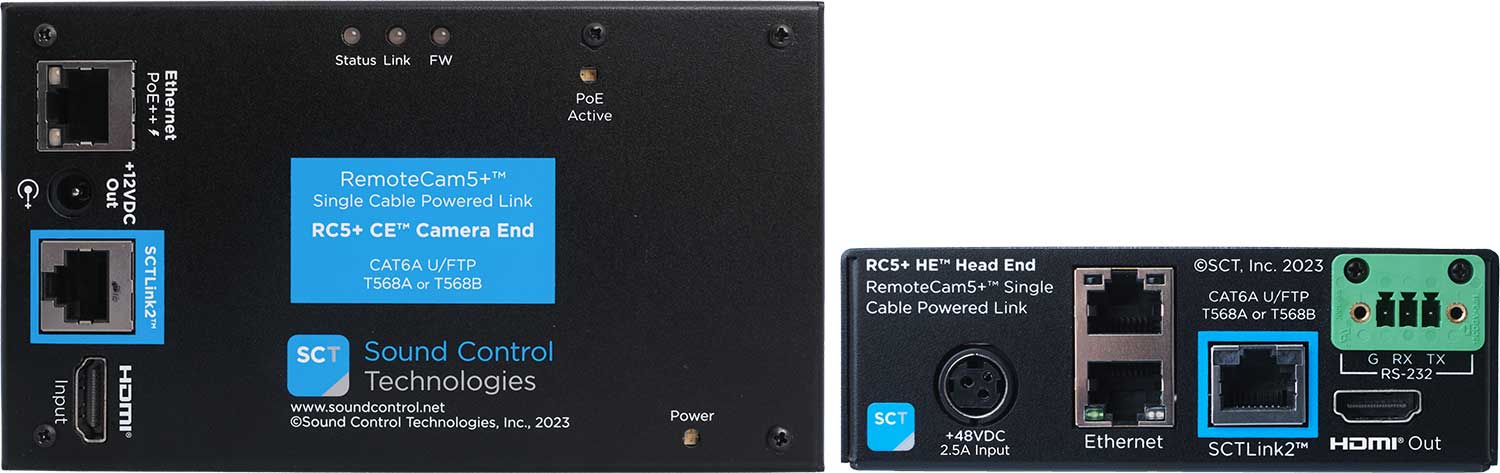

In a RemoteCam5+ system such as the RC5+UNI kit, the RC5+ CE camera-end module mounts at the PTZ camera position and links to the RC5+ HE head-end module at the equipment rack over the SCTLink CAT cable. The camera end receives 66W PoE++ class power over the link and feeds the camera, so no factory camera power supply or electrical outlet is required at the camera location. It accepts the camera's HDMI output for uncompressed 4K60 4:4:4 transport to the head end and provides Ethernet connectivity for IP camera control, streaming, and manufacturer firmware updates. When a camera-end failure is diagnosed, replacing only the RC5+CE restores full system operation while the existing RC5+ HE module, WPS-48 power supply, and cabling remain in place. The module is a like-for-like replacement built to the original RemoteCam5+ specification and supports the same camera set as the RC5+ platform, including the Cisco Room Vision PTZ and PTZ 4K, Sony BRC/SRG series, Panasonic AW series, and Canon CR-N series, integrating with Sound Control Technologies camera mounts for a clean installation.

Key Features

• RemoteCam5+-Specific Replacement — Drop-in camera-end module for RC5+ platform kits such as the RC5+UNI.
• Field-Replaceable — Restores a failed system without replacing the head-end module, power supply, or installed CAT cabling.
• Uncompressed 4K60 4:4:4 Video — Carries full-bandwidth HDMI from the camera to the head end for broadcast and premium collaboration spaces.
• Powered Over the Link — Receives 66W PoE++ class power from the head end and feeds the camera with no outlet required at the camera position.
• IP/Ethernet Camera Control — Provides Ethernet connectivity for PTZ control, streaming, and manufacturer firmware updates.
• Mount Integration — Works with Sound Control Technologies wall, ceiling, and recessed camera mounts for clean camera installations.
• Broad Camera Support — Compatible with the RC5+ supported camera list including Cisco, Sony, Panasonic, Canon, Lumens, AVer, and PTZOptics models.

Typical Applications

• Boardroom
• Conference room
• Broadcast studio
• Auditorium
• All-hands room
• Government space

Technical Specifications

Frequently Asked Questions

Is the RC5+CE compatible with RC5 Gen2 systems?

No. The RC5+CE is the camera-end replacement for the RemoteCam5+ (RC5+) platform, which delivers 4K60 video and 66W PoE++. RC5 Gen2 systems use their own RC5-CE module; the platforms are not interchangeable.

How do I know whether I need the RC5+CE or the RC5+HE?

The RC5+CE is the camera-side module; the RC5+HE is the rack-side (codec end) module. If the fault is at the equipment rack, you need the RC5+HE. Contact Creation Networks for diagnostic support.

Will the RC5+CE pair with my existing RC5+HE?

Yes. The RC5+CE is a like-for-like replacement that pairs directly with the installed RC5+ HE head-end module over your existing SCTLink CAT cable.

Does the RC5+CE power my camera?

Yes. The camera end receives 66W PoE++ class power over the link from the head end and feeds the attached camera, so no factory camera power supply is needed at the camera position.

What warranty applies to this replacement module?

Sound Control Technologies provides a 3-year standard advance replacement limited warranty. Contact Creation Networks for current warranty terms.
