Sound Control Technologies RCU2E-HE – RemoteCamUSB2E Head-End Replacement Module

Product Overview

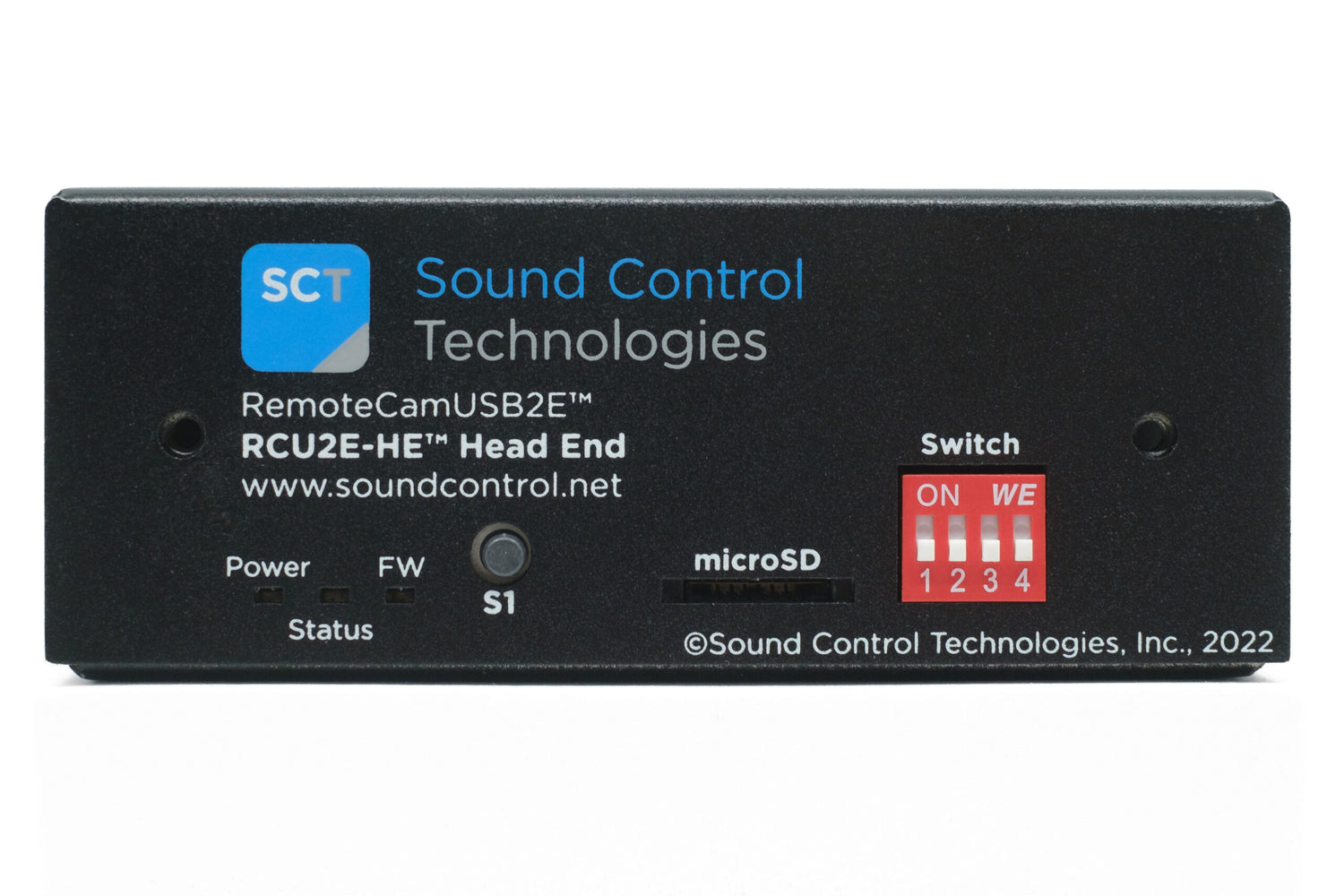

The Sound Control Technologies RCU2E-HE is the head-end replacement module for the RCU2E RemoteCamUSB2E camera extension platform. The RCU2E extends USB 2.0 video, IP Ethernet control, and camera power up to 300 feet over a single CAT cable between the host system and a USB conference camera. This replacement module lets AV integrators and facilities managers restore a failed RCU2E installation by swapping only the host-side head-end module, keeping the camera-end module and installed cabling in place.

Product Description

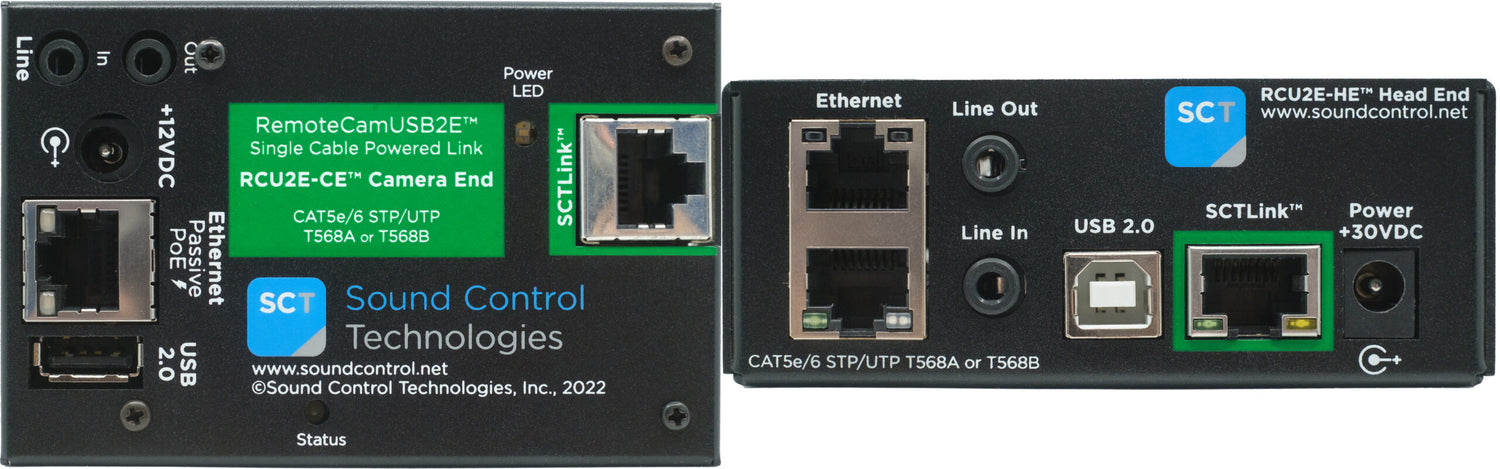

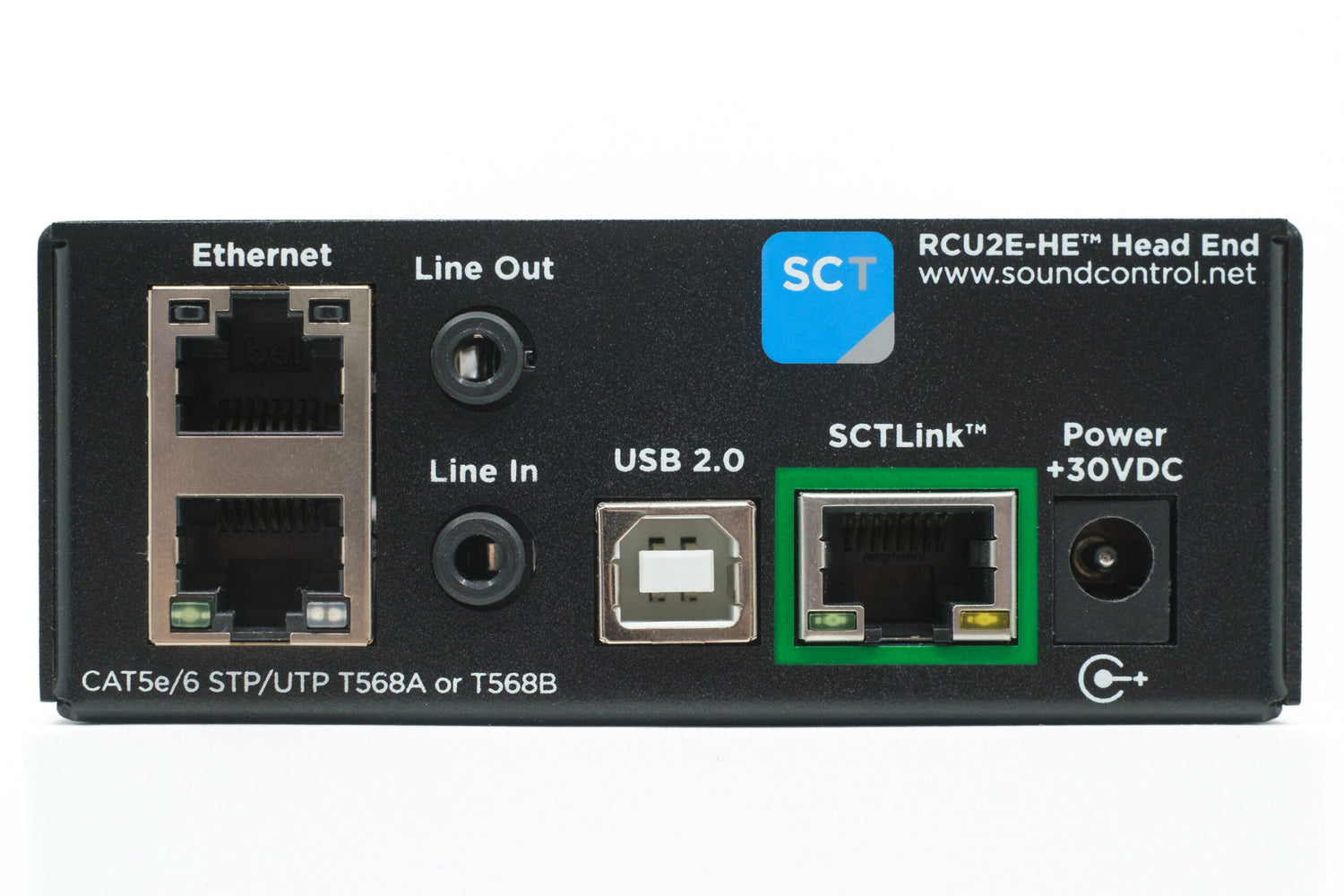

In an RCU2E system, the head-end module connects to the codec, room PC, or USB host at the equipment rack and links to the RCU2E-CE camera-end module over the SCTLink CAT cable. Unlike the RS-232-controlled RCU2S, the RCU2E platform carries IP Ethernet for camera control, supporting network-controlled PTZ cameras from 1 Beyond, AVer, VHD, Yealink, Minrray, Lumens, Sony, Panasonic, and other manufacturers depending on kit configuration. The single link carries USB 2.0 camera video, Ethernet control, and camera power, so the camera position needs no local outlet or separate network drop. When troubleshooting isolates a fault to the host side, replacing only the RCU2E-HE restores full system operation without disturbing the camera-end module, camera cabling, or the field-run CAT link. The module is a like-for-like replacement built to the original RCU2E specification and pairs directly with the installed camera-end electronics, keeping the service swap to a quick rack-side task.

Key Features

• RCU2E-Specific Replacement — Drop-in head-end module for RCU2E RemoteCamUSB2E camera extension systems.
• Field-Replaceable — Restores a failed system without replacing the camera-end module, power supply, or installed CAT cabling.
• USB 2.0 Transport — Maintains USB 2.0 camera video to the host over the SCTLink connection up to 300 feet.
• IP Ethernet Control Path — Preserves Ethernet-based camera control between the network and the camera across the extension.
• Plug-and-Play Service — No drivers or programming required; the replacement pairs automatically with the existing camera-end module.
• Rack-Side Installation — Installs at the host or codec rack location for clean service access.

Typical Applications

• Conference room
• Boardroom
• Training room
• Huddle room
• Multi-purpose room
• Government space

Technical Specifications

Frequently Asked Questions

Is the RCU2E-HE compatible with RCU2S or RCU3SL systems?

No. The RCU2E-HE is the head-end replacement specifically for RCU2E (Ethernet control) systems. RCU2S (RS-232 control) and RCU3SL (USB 3.2) platforms require their own modules.

How do I know whether I need the RCU2E-HE or the RCU2E-CE?

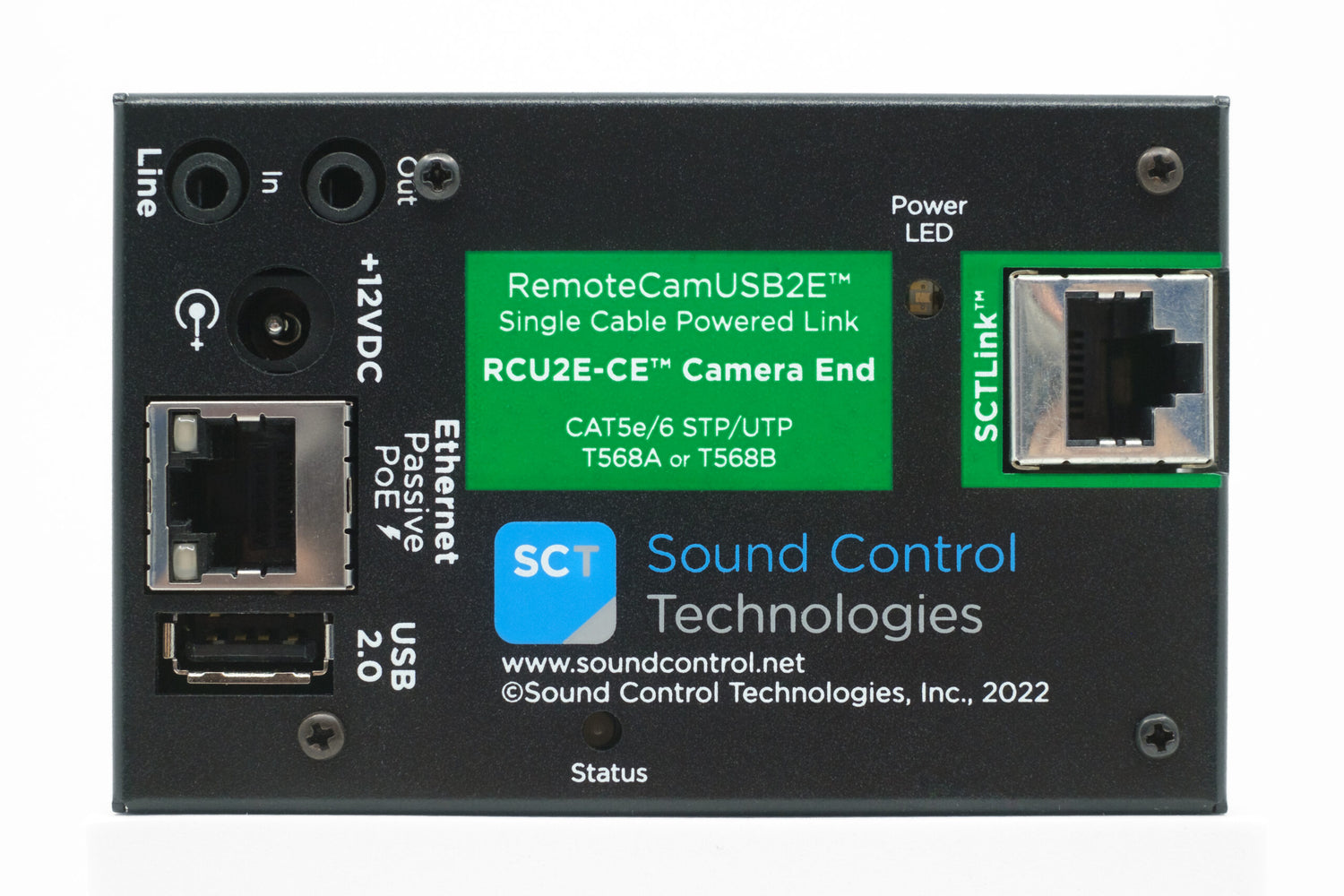

The RCU2E-HE is the host-side (codec/PC end) module; the RCU2E-CE is the camera-side module. If the fault is at the camera location, you need the RCU2E-CE. Contact Creation Networks for diagnostic support.

Will the RCU2E-HE pair with my existing camera-end module and cabling?

Yes. It is a like-for-like replacement that pairs directly with the installed RCU2E-CE over your existing CAT link cable.

Does the RCU2E-HE include a power supply?

No. The replacement module reuses the power supply from your existing RCU2E kit. Contact Creation Networks if you also need a replacement power supply.

What warranty applies to this replacement module?

Sound Control Technologies provides a standard advance replacement limited warranty. Contact Creation Networks for current warranty terms.
