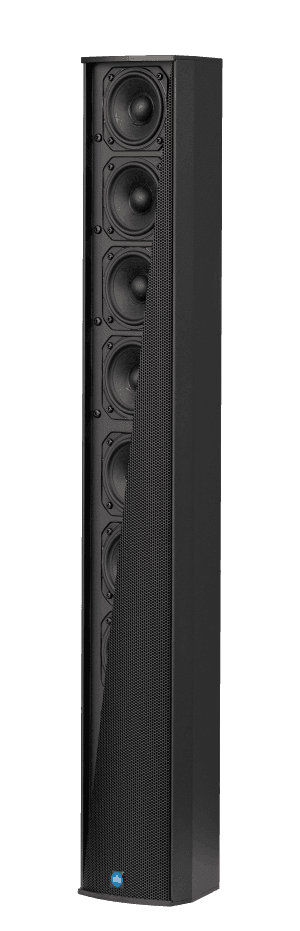

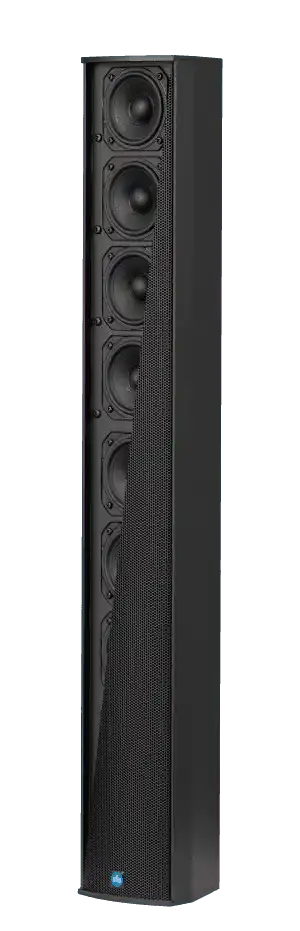

The UBX8 delivers precise vertical pattern control and an unmatched combination of features in a surprisingly small package. Passive UniBeam™ Technology offers incredibly consistent coverage and constant directivity even in plumb surface-mount configurations. Eight high-quality neodymium transducers deliver the impeccable sound quality Renkus-Heinz audio solutions are known for.
The included 100w 70/100v transformer, wall-mount bracket and standard weather resistance make it simple to integrate into any system design.
Renkus-Heinz beam-steering technology, now in a passive column.
The UBX series from Renkus-Heinz delivers the precise coverage, high intelligibility, and renowned sound quality of their flagship Iconyx loudspeakers into the realm of passive column arrays. New for the UBX Series is our Passive UniBeam™ Technology which addresses each transducer with specially designed all-pass filter networks, gain shading, and additional frequency filtering in order to generate an asymmetrical vertical dispersion with constant directivity, delivering consistent front-to-back coverage with minimal side lobe artifacts.
The UBX Series utilizes state of the art neodymium 3” Full-Range drivers which allow for an incredibly small footprint. The narrow cabinet, combined with Passive UniBeam™ coverage, allows for plumb surface mounting via the included wall mount bracket, resulting in the least possible architectural intrusion. All models in the UBX Series are weather resistant (IP64) out of the box with the included gland nut protected input cover, and feature high quality audio transformers for 70V/100V constant voltage operation in large, distributed audio systems.
The UBX8 delivers precise vertical pattern control and an unmatched combination of features in a surprisingly small package. Passive UniBeam™ Technology offers incredibly consistent coverage and constant directivity even in flush mount configurations. Eight high-quality neodymium transducers deliver the impeccable sound quality Renkus-Heinz audio solutions are known for. The included 100w 70/100v transformer, wall-mount bracket and standard weather resistance make it simple to integrate into any system design.
The UBX8 is available in white and black only.
|Frequency response:||140 Hz to 15 kHz (- 3dB) 115 Hz to 18 kHz (-10 dB)|
|Sensitivity:||93 dB (1 W / 1 m) 79 dB (4 m, per EN54-24)|
|Power Handling:||50 W (100 Hr, per EN54-24) 110 W (AES) 220 W (PGM) 440 W (PEAK)|
|Transformer:||70/100 V Transformer 70 V – 12, 25, 50, 100 W Taps 100 V – 25, 50, 100 W Taps|
|Max SPL:||119 dB Peak @ 1 m 96 dB @ 4 m (through transformer, per EN54-24)|
|Dispersion Horizontal:||120° horizontal below 5 kHz, 90° above 5 kHz|
|Dispersion Vertical:||20° asymmetrical (+5°/-15°) with 5° average downtilt above 1.6 khz|
|Transducers:||8 x 3 in / 77 mm, full-range, high-sensitivity, treated-paper cone driver|
|Connector:||Covered screw terminals|
|Grille:||Perforated, bent aluminum|
|Finish:||Black (RAL9011) or White (RAL9010) paint|
|Weather Rating:||IP64 with salt spray, chlorine, and UV resistance|
|Operating Temperature:||Minimum: -22° F / -30° C Maximum: 140° F / 60° C with no direct sun exposure|
|Mounting:||W-WALL-UBX surface mount pan bracket (included) W-WALL-UBX-PT pan/tilt bracket (optional)|
|Dimensions:||4-3/8″ (111.4 mm) w 30-3/8″ (771.5 mm) h 4-3/4″ (120.7 mm) d|
|Weight:||16.4 lbs (7.4 kg)|
