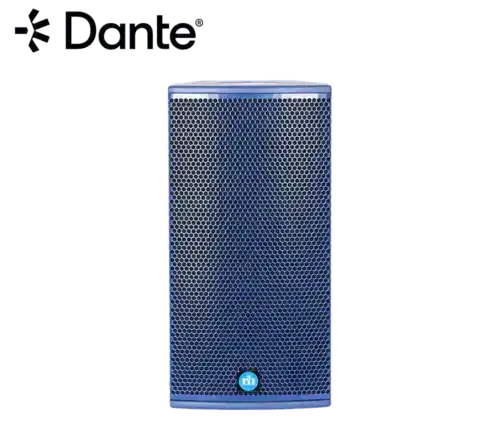

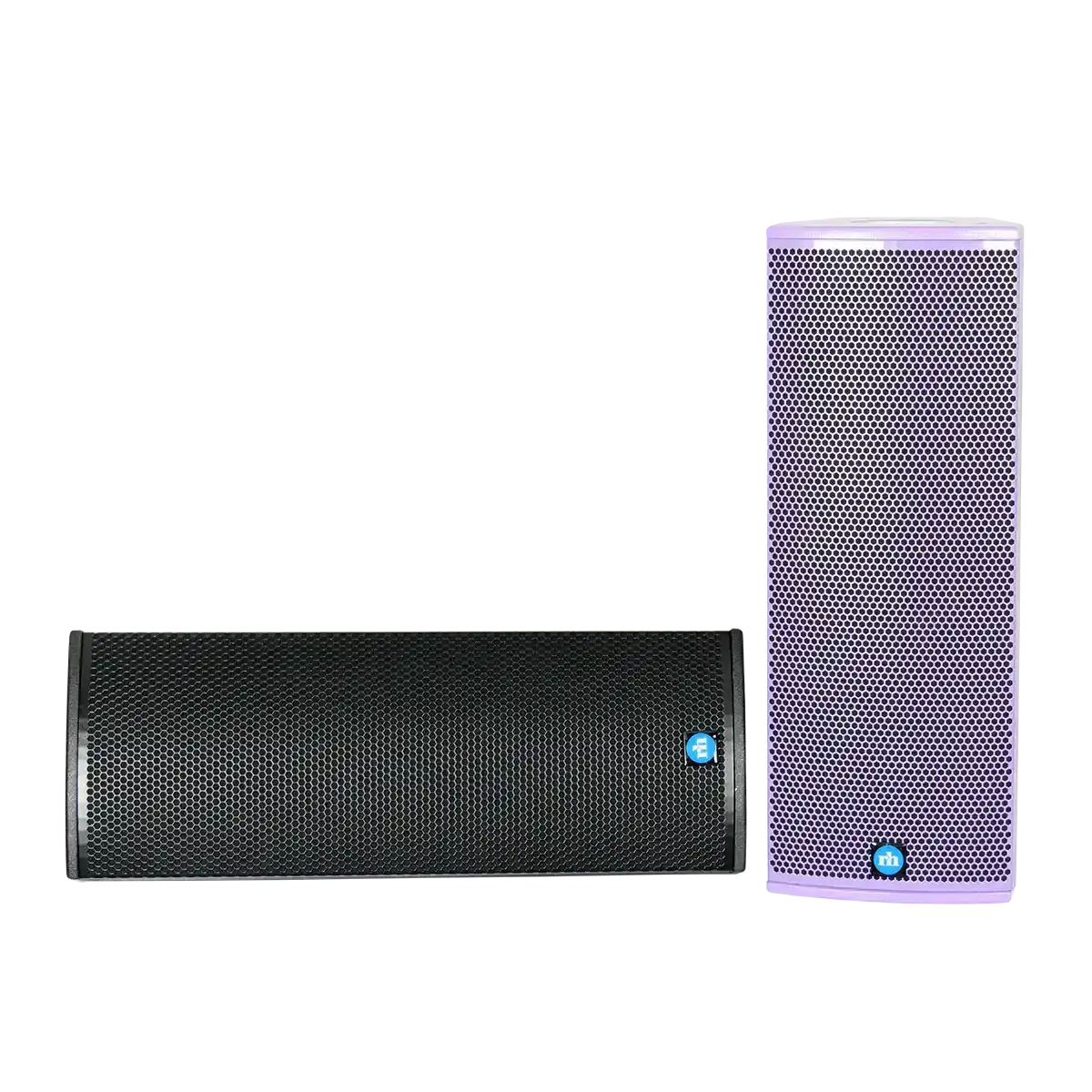

Renkus-Heinz TA82-RD 2-Way Loudspeaker 2 x 8" LF, 1" HF, powered with RHAON & Dante Redundant, SA625-RD Amp Module

Product Overview

The Renkus-Heinz TA82-RD is a self-powered dual eight-inch two-way point-source loudspeaker with Dante digital audio and network redundancy, built to order for permanent commercial installations needing compact, high-output coverage. It combines dual 8-inch carbon-fiber woofers and a 1-inch titanium HF driver on a rotatable Complex Conic waveguide with an integrated SA625-RD amplifier module, RHAON II control, and onboard DSP. As a networked install loudspeaker, it suits main, fill, and distributed systems in houses of worship, multi-purpose rooms, and conference rooms.

Product Description

T Series loudspeakers employ advanced driver technology and Complex Conic horns to deliver natural music and intelligible speech. The TA82 features dual heavy-duty 8-inch woofers with carbon-fiber cones and a 1-inch Extended Range titanium HF driver, with a 120° x 60° Complex Conic horn that rotates 90° for wide or deep rooms. The integrated SA625 amplifier supplies 500 watts to the low-frequency section and 250 watts to the high-frequency section, with factory-optimized multi-band peak and thermal limiting. Controlled through RHAON II, the onboard DSP provides eight fully parametric filters, high and low shelf and pass filters, and up to 340 ms of delay. The RD model adds Dante digital signal distribution with AES67 compatibility and primary/secondary network redundancy. Twelve-point Universal Mounting Hardware supports flown, bracket, and inconspicuous wall or balcony mounting.

Key Features

• Dual 8-Inch Two-Way Design — Twin carbon-fiber 8-inch woofers and a 1-inch titanium HF driver deliver full-range ± 3 dB output from 90 Hz to 20 kHz.
• Rotatable Complex Conic Horn — The 120° x 60° / 90° x 60° horn rotates 90° for wide or deep coverage.
• Integrated SA625-RD Amplifier — The built-in amplifier supplies 500 W LF and 250 W HF with driver-protecting multi-band limiting.
• Dante with Network Redundancy — AES67-compatible Dante with primary/secondary Ethernet supports resilient networked systems.
• RHAON II Network Control — Onboard DSP with eight parametric filters, shelving and pass filters, and up to 340 ms of delay is configured from RHAON II software.
• Built-to-Order Construction — Each cabinet is hand-built in California with optional custom color and weather-resistant finishing.

Typical Applications

• House of worship
• Multi-purpose room
• Conference room
• Commercial meeting space
• Auditorium

Technical Specifications

Frequently Asked Questions

What amplifier powers the TA82-RD? It uses the integrated Renkus-Heinz SA625-RD module supplying 500 W LF and 250 W HF with RHAON II control and Dante.

What is the difference between the TA82 and TX82? The TA82 is self-powered with the SA625 amplifier module; the TX82 is the externally powered (passive) version of the same cabinet.

Can it be mounted discreetly? Yes. Twelve-point Universal Mounting Hardware supports flown, bracket, wall, and balcony mounting for fill and distributed applications.

Does it integrate with other Renkus-Heinz systems? Yes. It pairs with Renkus-Heinz subwoofers and steerable systems over RHAON II and Dante. See the Renkus-Heinz collection.

What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
