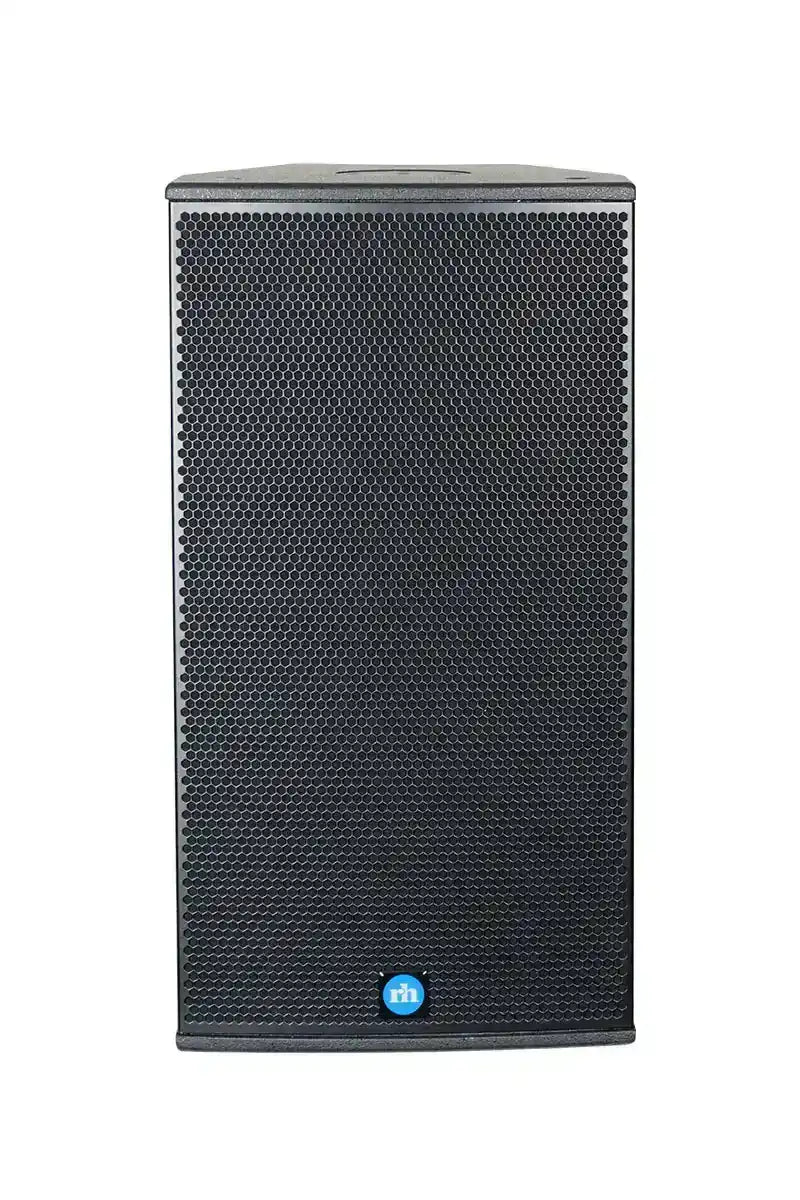

Renkus-Heinz TA121-RD 2-Way Loudspeaker 12" LF, 1" HF, powered with RHAON & Dante Redundant, SA1250-RD Amp Module

Product Overview

The Renkus-Heinz TA121-RD is a self-powered 12-inch two-way point-source loudspeaker with Dante digital audio and network redundancy, built to order for permanent commercial installations needing high-output music and speech reinforcement. It combines a 12-inch heavy-duty woofer and 2-inch titanium HF driver on a rotatable Complex Conic waveguide with an integrated SA1250-RD amplifier module, RHAON II control, and onboard DSP. As a networked install loudspeaker, it works as a compact main system or distributed coverage in auditoriums, houses of worship, and multi-purpose venues.

Product Description

Every T Series loudspeaker is built to order in the Renkus-Heinz California factory to exacting standards of performance and durability. The TA121 features a heavy-duty 12-inch woofer and a 2-inch titanium HF driver. Its exclusive 90° x 40° Complex Conic horn provides constant beamwidth and directivity, and can be rotated 90° within the cabinet for wide or deep listening spaces. The integrated SA1250 amplifier supplies 1000 watts to the low-frequency section and 250 watts to the high-frequency section, with factory-optimized multi-band peak and thermal limiting. Controlled through RHAON II, the onboard DSP provides eight fully parametric filters, high and low shelf and pass filters, and up to 340 ms of delay. The RD model adds Dante digital signal distribution with AES67 compatibility and primary/secondary network redundancy. Twelve-point Universal Mounting Hardware with M10 threads supports flown and bracket-mounted installation.

Key Features

• 12-Inch Two-Way Point Source — A heavy-duty 12-inch woofer and 2-inch titanium HF driver deliver full-range ± 3 dB output from 60 Hz to 20 kHz.

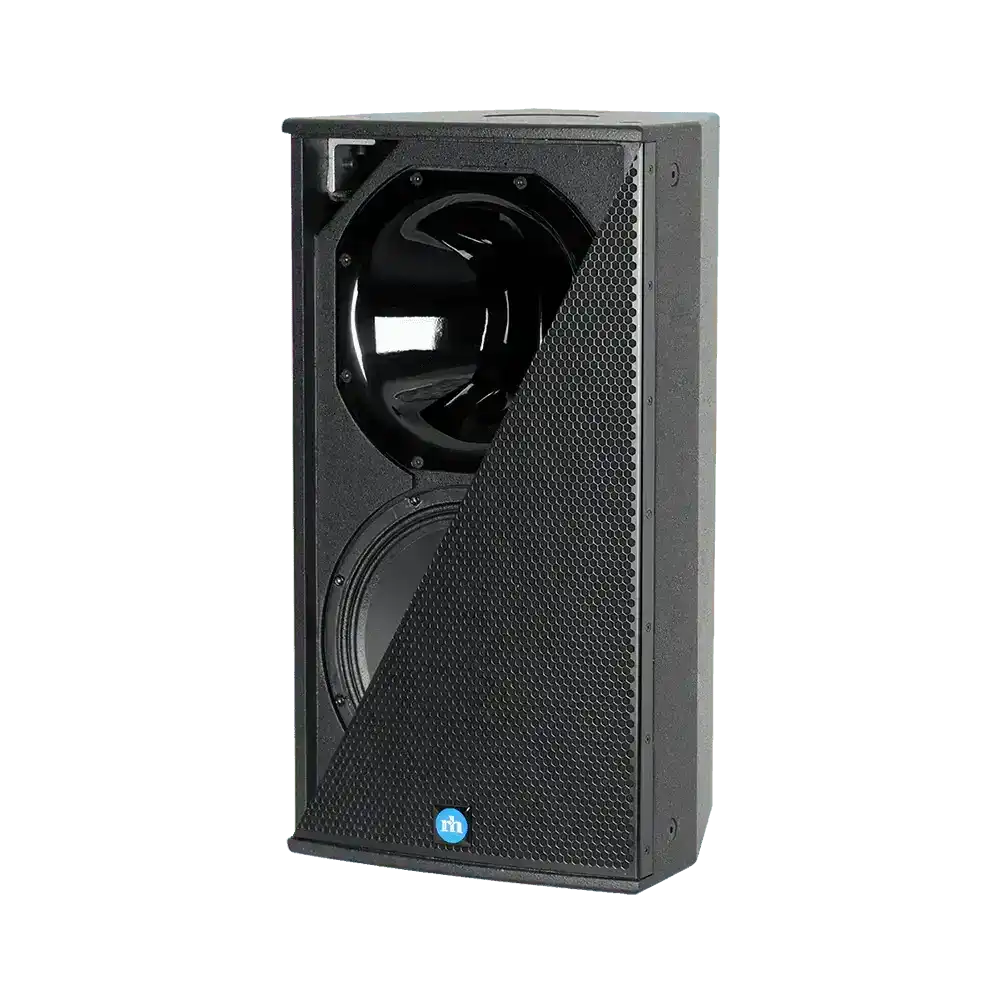

• Rotatable Complex Conic Horn — The 60° x 40° / 90° x 40° horn rotates 90° within the cabinet for wide or deep rooms.
• Integrated SA1250-RD Amplifier — The built-in amplifier supplies 1000 W LF and 250 W HF with driver-protecting multi-band limiting.

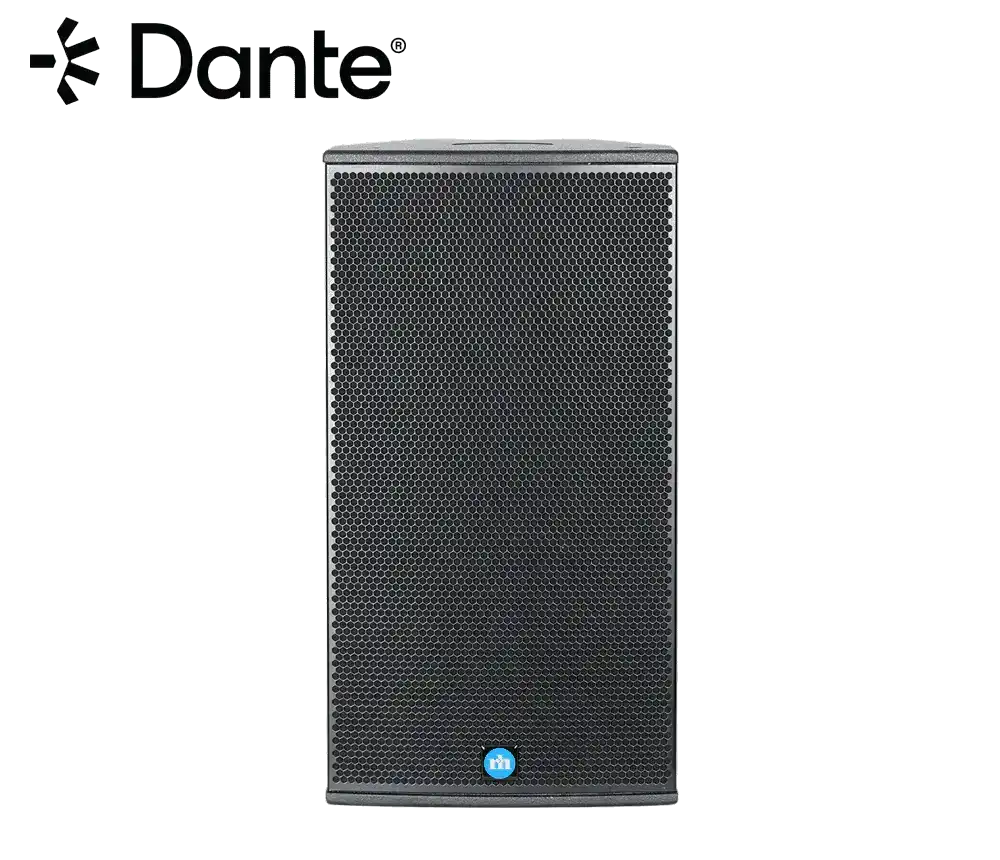

• Dante with Network Redundancy — AES67-compatible Dante with primary/secondary Ethernet supports resilient networked systems.
• RHAON II Network Control — Onboard DSP with eight parametric filters, shelving and pass filters, and up to 340 ms of delay is configured from RHAON II software.

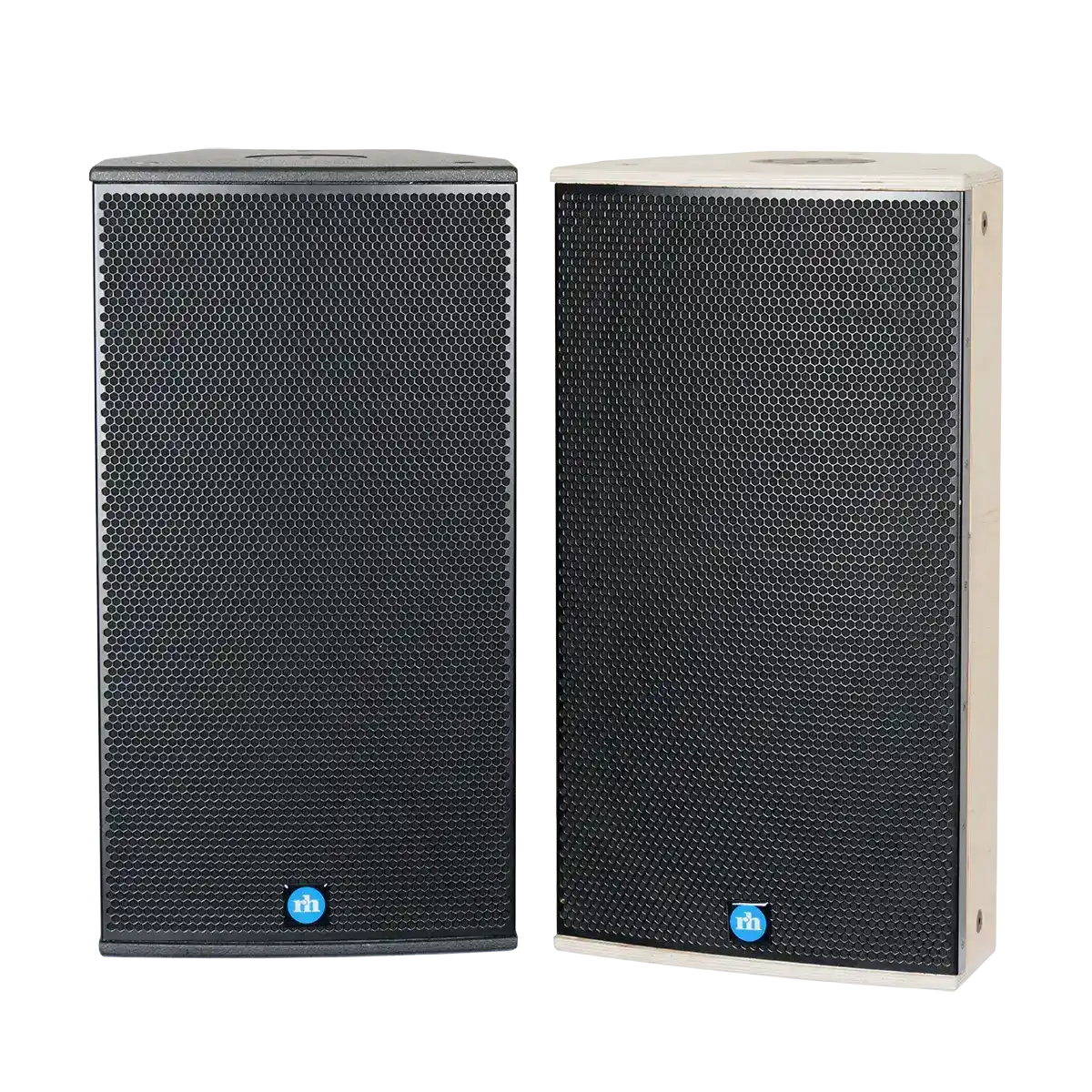

• Built-to-Order Construction — Each cabinet is hand-built in California with optional custom color and weather-resistant finishing.

Typical Applications

• Auditorium
• House of worship
• Multi-purpose room
• Commercial meeting space
• Training room

Technical Specifications

Frequently Asked Questions

What amplifier powers the TA121-RD? It uses the integrated Renkus-Heinz SA1250-RD module supplying 1000 W LF and 250 W HF with RHAON II control and Dante.

What is the difference between the TA121 and TX121? The TA121 is self-powered with the SA1250 amplifier module; the TX121 is the externally powered (passive) version of the same cabinet.

Can the horn be rotated? Yes. The Complex Conic horn rotates 90° within the cabinet to provide 60° x 40° or 90° x 40° coverage.

Does it integrate with other Renkus-Heinz systems? Yes. It pairs with Renkus-Heinz subwoofers and steerable systems over RHAON II and Dante. See the Renkus-Heinz collection.

What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
