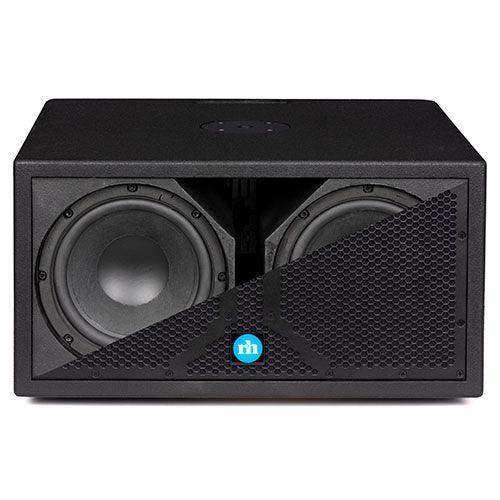

Renkus-Heinz SX28 Non‐Powered, 300W AES @ 8 ohms, Sensitivity 99 dB, 1W/1m, half space
Renkus-Heinz SX28 Non‐Powered, 300W AES @ 8 ohms, Sensitivity 99 dB, 1W/1m, half space - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Renkus-Heinz SX28 Non‐Powered, 300W AES @ 8 ohms, Sensitivity 99 dB...
Product Overview
The Renkus-Heinz SX28 is an externally powered dual eight-inch subwoofer built for permanent commercial installations needing compact, controlled low-frequency reinforcement. Its twin SSL8-23 woofers deliver output comparable to a single 12-inch sub in a cabinet roughly two-thirds the volume. This passive subwoofer complements Renkus-Heinz full-range loudspeakers in houses of worship, multi-purpose rooms, and commercial meeting spaces, with large ports that keep its bass free of port noise.
Product Description
The dual eight-inch SX28 provides power and punch equal to most single 12-inch subwoofers in a cabinet that is two-thirds the volume, making it easy to integrate where space is limited. Large ports ensure forceful bass is never marred by chuffing or fluttering noise. Connections are made through two Neutrik Speakon NL4 connectors wired in parallel with a terminal strip, and a crossover frequency of 120 Hz or lower is recommended. Sixteen M10 Universal Mounting points allow the cabinet to be flown with M10 eyebolts, while the M20 pole adapter, recessed handles, and available casters support portable and ground-stacked use. The SX28 can be field-upgraded to a self-powered SA28 using Renkus-Heinz SA-Series amplifier modules.
Key Features
- Compact Dual-8 Design — Twin SSL8-23 woofers deliver output comparable to a single 12-inch sub in roughly two-thirds the cabinet volume.
- Low Port Noise — Large ports keep forceful bass free of chuffing or fluttering across the operating range.
- Flexible Mounting — Sixteen M10 Universal Mounting points plus an M20 pole mount support flown, stacked, or pole-mounted use.
- Field-Upgradeable to Powered — The cabinet can be converted to a self-powered SA28 using Renkus-Heinz SA-Series amplifier modules.
- Standard Speakon Connectivity — Two parallel Neutrik Speakon NL4 connectors with terminal strip simplify wiring in passive systems.
- Space-Saving Footprint — The low-profile cabinet integrates under stages or in tight rooms while supporting full-range loudspeakers.
Typical Applications
- House of worship
- Multi-purpose room
- Commercial meeting space
- Auditorium
- Broadcast studio
Technical Specifications
| Transducers | 2 x SSL8-23, 8 in. woofers |
| Frequency Response | 50 Hz to 120 Hz (-3 dB); 44 Hz to 170 Hz (-10 dB) |
| Sensitivity | 96 dB (1 W @ 1 m) |
| Maximum Peak SPL | 126 dB (half-space) |
| Connections | 2 x Neutrik Speakon NL4 in parallel with terminal strip |
| Crossover | 120 Hz or lower recommended |
| Enclosure / Grille | 3/4 in. (19 mm) Birch plywood; 16 GA powder-coated steel grille |
| Mounting | 16 x M10 UMH points; M20 pole mount |
| Weight | 54.2 lbs / 24.6 kg |
| Dimensions | 20-1/2 in. W x 10-1/2 in. H x 20 in. D (521 x 267 x 508 mm) |
Frequently Asked Questions
Is the SX28 powered? No. It is an externally powered (passive) subwoofer requiring an external amplifier. For a self-powered version, choose the SA28 with an integrated SA-Series amplifier module.
How does a dual-8 compare to a single 12-inch sub? The SX28 is engineered to deliver output comparable to most single 12-inch subwoofers while occupying roughly two-thirds the cabinet volume.
Is a weather-resistant version available? Yes. Choose the SX28-WR for high-humidity or covered outdoor installations.
Can it be flown? Yes. Sixteen M10 Universal Mounting points accept M10 eyebolts for flown installation, and an M20 pole mount supports ground-stacked use. See the Renkus-Heinz collection.
What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
