Renkus-Heinz SX112‐WR Weather Resistant (WR) SX112
Product Overview

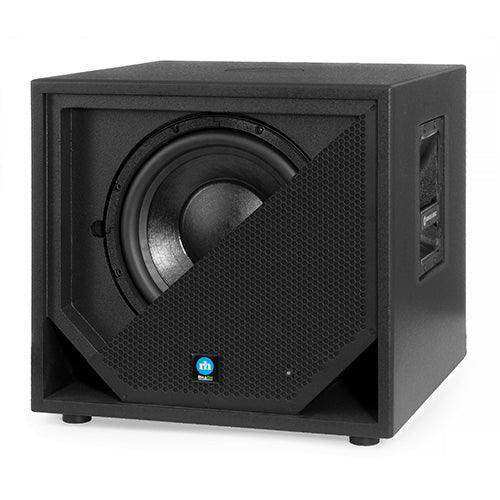

The Renkus-Heinz SX112-WR is a weather-resistant, externally powered 12-inch subwoofer built for permanent commercial installations that require compact low-frequency reinforcement in high-humidity or covered outdoor environments. Built on the SX112 cabinet with an SSL12-11 woofer, this passive subwoofer complements Renkus-Heinz full-range loudspeakers in houses of worship, multi-purpose rooms, and commercial meeting spaces. Large ports keep its forceful bass free of port noise across the operating range.
Product Description
The SX112-WR delivers the power and punch of a 12-inch woofer in a cabinet that is easy to integrate into any project. Large ports ensure forceful bass is never marred by chuffing or fluttering noise. Connections are made through two Neutrik Speakon NL4 connectors wired in parallel with a terminal strip, and a crossover frequency of 120 Hz or lower is recommended for system integration. The weather-resistant (WR) treatment prepares the enclosure and hardware for high-humidity and covered outdoor applications. Sixteen M10 Universal Mounting points allow the cabinet to be flown with M10 eyebolts, while the M20 pole adapter, recessed handles, and available casters support portable and ground-stacked use. The SX112 platform can be field-upgraded to a self-powered SA112 using Renkus-Heinz SA-Series amplifier modules.
Key Features
- SSL12-11 12-Inch Woofer — A high-excursion 12-inch transducer delivers tight, controlled low-frequency output in a compact cabinet.
- Weather-Resistant Construction — The WR option protects the cabinet and components for high-humidity and covered outdoor installations.
- Low Port Noise — Large ports keep forceful bass free of chuffing or fluttering across the operating range.
- Flexible Mounting — Sixteen M10 Universal Mounting points plus an M20 pole mount support flown, stacked, or pole-mounted use.
- Field-Upgradeable to Powered — The cabinet can be converted to a self-powered SA112 using Renkus-Heinz SA-Series amplifier modules.
- Standard Speakon Connectivity — Two parallel Neutrik Speakon NL4 connectors with terminal strip simplify wiring in passive systems.
Typical Applications
- House of worship
- Multi-purpose room
- Commercial meeting space
- Auditorium
- Broadcast studio
Technical Specifications
| Transducer | SSL12-11, 12 in. woofer |
| Frequency Response | 45 Hz to 110 Hz (-3 dB); 37 Hz to 130 Hz (-10 dB) |
| Sensitivity | 92 dB (1 W @ 1 m, half-space) |
| Maximum Peak SPL | 126 dB (half-space) |
| Connections | 2 x Neutrik Speakon NL4 in parallel with terminal strip |
| Crossover | 120 Hz or lower recommended |
| Enclosure / Grille | 3/4 in. (19 mm) Lite Ply; 16 GA powder-coated steel grille |
| Mounting | 16 x M10 UMH points; M20 pole mount |
| Weight | 55 lbs / 25 kg |
| Dimensions | 19-1/4 in. W x 17-1/2 in. H x 20 in. D (489 x 445 x 508 mm) |
Frequently Asked Questions
Is the SX112-WR powered? No. It is an externally powered (passive) subwoofer requiring an external amplifier. For a self-powered version, choose the SA112 with an integrated SA-Series amplifier module.
What does the WR option mean? WR is the weather-resistant treatment that prepares the cabinet and hardware for high-humidity and covered outdoor environments.
What crossover frequency is recommended? Renkus-Heinz recommends a crossover of 120 Hz or lower when integrating the SX112 with full-range loudspeakers.
Can it be flown? Yes. Sixteen M10 Universal Mounting points accept M10 eyebolts for flown installation, and an M20 pole mount supports ground-stacked use. See the Renkus-Heinz collection.
What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
