Renkus-Heinz SA28‐RD Self‐Powered with RHAON & Dante Redundant, SA1250‐RD
Roll over image to zoom in Click on image to zoom
Renkus-Heinz SA28‐RD Self‐Powered with RHAON & Dante Redundant, SA1250‐RD
Product Questions? Ask Our Experts!
Tel: 888.230.3661 sales@creationnetworks.net Contact us today for quantity & package discounts!

Renkus-Heinz SA28‐RD Self‐Powered with RHAON & Dante Redundant, SA1250‐RD

Availability: Call for Availability
Availability: Direct Ship
Renkus-Heinz SKU: SA28‐RD-BK
No reviews
Model: Black
Price:
$4,184.00

Description

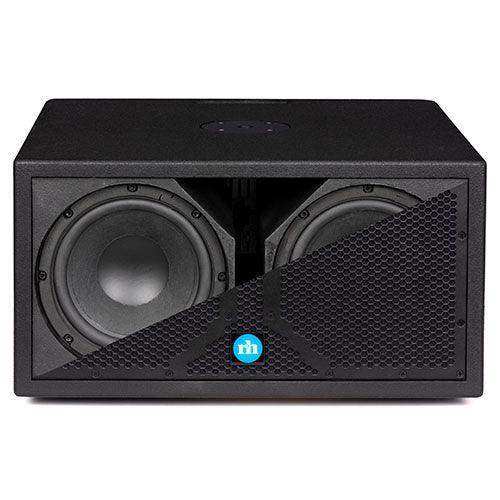

The SX/SA28, dual eight-inch subwoofer provides power and punch equal to most single 12 inch subs in a cabinet that is 2/3 the volume, making it very easy to integrate into any project. Large ports insure that this forceful bass is never marred by any chuffing or fluttering noises.

The SX/SA28, dual eight-inch subwoofer provides power and punch equal to most single 12 inch subs in a cabinet that is 2/3 the volume, making it very easy to integrate into any project. Large ports insure that this forceful bass is never marred by any chuffing or fluttering noises.

Sixteen, M10 Universal Mounting Points allow the SX/SA28 to be flown using M10 eyebolts, while the recessed handles, top-mounted pole adapter and available casters make portable use easy and practical.

The optional SA1250 power amplifier precisely matches the power needs of the SA28, provides optimal damping of the woofer and has factory optimized, multi-band limiting. The built-in amp eliminates the need for additional rack space and speaker cable runs, making adding a subwoofer to existing installs as simple as plugging it into power and running a signal to it.

Controlled via RHAON II, the SA1250’s built-in DSP has eight, fully parametric EQ filters, high and low shelf and high and low pass filters and up to 340 ms. of delay. All easily accessed via a Windows computer running RHAON II.

The SA28-RD adds Dante digital signal distribution capability including AES67 compatibility and network redundancy.

Technical Data
Frequency Response: SX28
SA28-RN
SA28-RD		 50 Hz to 120 Hz (-3 dB)

44 Hz to 170 Hz (-10 dB)
Sensitivity: SX28 96 dB (1 W @ 1 m)
SA28-RN
SA28-RD		 1.4 volts for rated output, analog
Maximum Peak SPL: SX28
SA28-RN
SA28-RD		 126 dB (Half-space)
Connections: SX28 2 x Neutrik Speakon NL4 in parallel with terminal strip
SA28-RN
SA28-RD		 See SA1250 amplifier specifications
Transducers: SX28
SA28-RN
SA28-RD		 Woofer: SSL8-23 x 2
Crossover Frequency: SX28 120 Hz or lower recommended
SA28-RN
SA28-RD		 100 Hz. Active
Enclosure: SX28
SA28-RN
SA28-RD		 3/4 in./19 mm Birch plywood
Grille: SX28
SA28-RN
SA28-RD		 16 GA powder coated, plated steel
Finish: SX28
SA28-RN
SA28-RD		 Black (RAL9011) or White (RAL9010) paint, standard. Custom colors optional.
Mounting: SX28
SA28-RN
SA28-RD		 16 x M10 UMH points; M20 pole mount.
Weight: SX28
SA28-RN
SA28-RD		 54.2 lbs / 24.6 kg
Dimensions: SX28
SA28-RN
SA28-RD		 20-1/2 in. / 521 mm wide
10-1/2 in. / 267 mm high
20 in. / 508 mm deep


SA1250 Amplifier Specifications
Audio Connections: SA28-RN 2 x XLR-3, In & Loop-out, Analog and AES
SA28-RD 2 x XLR-3, In & Loop-out, Analog and AES
2 x RJ45 Dante Primary & Secondary Ethernet
Network Connections: SA28-RN 2 x RJ45, Looping Ethernet/RHAON
SA28-RD 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.)
Maximum Input Level: SA28-RN
SA28-RD		 +22 dBu, Analog; 0 dBFS digital
User DSP: SA28-RN
SA28-RD		 Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms.
Software: SA28-RN RHAON II
SA28-RD RHAON II and Dante Controller
Latency: SA28-RN 6.25 ms
SA28-RD 6.25 ms + Dante transport latency
Power Output: SA28-RN
SA28-RD		 LF= 1000 watts, @ 8 ohms. Multi-band peak and thermal limiting on all channels protects the drivers.
Mains Voltage: SA28-RN
SA28-RD		 100-240 volts, 50/60 Hz auto-switching
Power Consumption: SA28-RN
SA28-RD		 Idle: 300 mW. 1/8 power: 240 W (onset of limiting) 1/3 power: 550 W (hard limiting)
Power Connector: SA28-RN
SA28-RD		 Neutrik powerCON TRUE-1
Temperature Limits: SA28-RN
SA28-RD		 Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C.
