Renkus-Heinz SA118‐RN Self‐Powered with RHAON, SA2000‐RN
Product Overview

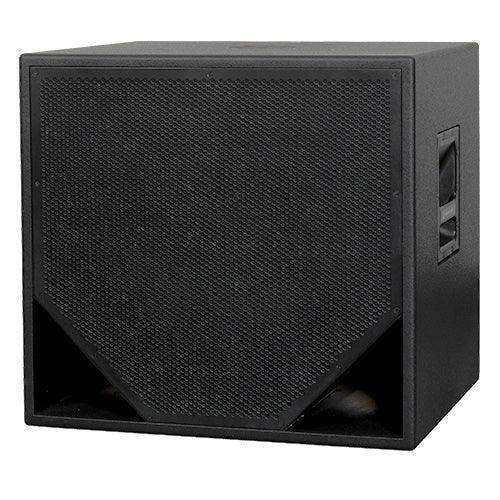

The Renkus-Heinz SA118-RN is a self-powered 18-inch subwoofer with integrated RHAON II network control, engineered for permanent commercial installations that demand deep, controlled low-frequency reinforcement. It pairs the SX118 cabinet and SSL18-11 woofer with an SA2000-RN amplifier module and onboard DSP. As a networked subwoofer, it integrates cleanly with Renkus-Heinz full-range and steerable loudspeakers across auditoriums, houses of worship, and multi-purpose venues.
Product Description
The SA118-RN delivers the power and punch of an 18-inch woofer in a cabinet designed for straightforward integration, with large ports that keep forceful bass free of chuffing or fluttering noise. The built-in SA2000 amplifier precisely matches the woofer's power needs and provides optimal damping with factory-optimized multi-band limiting, eliminating separate amplifier racks and long speaker-cable runs. Controlled through RHAON II, the onboard DSP provides eight fully parametric EQ filters, high and low shelf filters, high and low pass filters, and up to 340 ms of delay, all accessed from a Windows computer. Sixteen M10 Universal Mounting points and an M20 pole adapter support flown and ground-stacked deployment.
Key Features
- Integrated SA2000-RN Amplifier — The built-in 2000-watt amplifier is factory-matched to the SSL18-11 woofer for optimal damping and driver-protecting multi-band limiting.
- RHAON II Network Control — Onboard DSP with eight parametric filters, shelving and pass filters, and up to 340 ms of delay is configured over Ethernet from RHAON II software.
- Deep Low-Frequency Output — Frequency response extends to 32 Hz (-10 dB) with a maximum peak SPL of 132 dB half-space.
- Analog and AES Inputs — Looping XLR-3 connectors accept analog and AES sources for flexible system wiring.
- Flexible Mounting — Sixteen M10 Universal Mounting points plus an M20 pole mount support flown, stacked, or pole-mounted use.
- Simplified Integration — The self-powered design removes external amplifier racks and long speaker runs from distributed installations.
Typical Applications
- Auditorium
- House of worship
- Multi-purpose room
- Commercial meeting space
- Broadcast studio
Technical Specifications
| Transducer | SSL18-11, 18 in. woofer |
| Frequency Response | 36 Hz to 110 Hz (-3 dB); 32 Hz to 130 Hz (-10 dB) |
| Maximum Peak SPL | 132 dB (half-space) |
| Crossover | 100 Hz, active |
| Amplifier | SA2000, 2000 watts @ 8 ohms |
| Audio Connections | 2 x XLR-3 in & loop-out, analog and AES |
| Network Connections | 2 x RJ45, looping Ethernet/RHAON |
| User DSP | Eight parametric filters, hi/lo shelf, hi/lo pass, delay to 340 ms |
| Software | RHAON II |
| Latency | 6.25 ms |
| Mains Voltage | 100-240 V, 50/60 Hz auto-switching; powerCON TRUE-1 |
| Enclosure / Grille | 3/4 in. (19 mm) Lite Ply; 16 GA powder-coated steel grille |
| Mounting | 16 x M10 UMH points; M20 pole mount |
| Weight | 104 lbs / 47 kg |
| Dimensions | 25-1/4 in. W x 23-1/2 in. H x 20 in. D (640 x 597 x 508 mm) |
Frequently Asked Questions
What amplifier does the SA118-RN use? It uses the integrated Renkus-Heinz SA2000-RN module rated at 2000 watts @ 8 ohms with RHAON II network control.
Does it support Dante? The RN model provides analog and AES inputs with RHAON II control. For Dante digital audio with redundancy, choose the SA118-RD variant.
Is a passive version available? Yes. The SX118 is the externally powered passive version of the same cabinet.
Can it integrate with other Renkus-Heinz loudspeakers? Yes. It complements Renkus-Heinz full-range and steerable systems on a shared network. See the Renkus-Heinz collection.
What warranty applies? Warranty terms vary by product and region. Contact Creation Networks for current warranty and support details.
