Renkus-Heinz SA112‐RN‐WR Weather resistant (WR), Self‐Powered with RHAON, SA2000‐RN
Renkus-Heinz SA112‐RN‐WR Weather resistant (WR), Self‐Powered with RHAON, SA2000‐RN - Black is backordered and will ship as soon as it is back in stock.
Shipping Now*
Shipping Now*
Free Ground Shipping over $250.00
Renkus-Heinz SA112‐RN‐WR Weather resistant (WR), Self‐Powered with ...

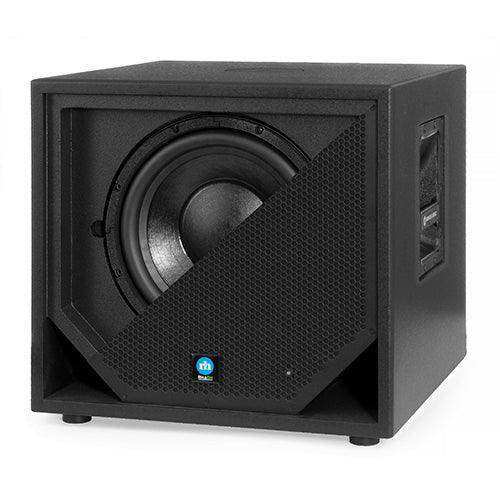

The SX/SA112 subwoofer provides the power and punch of a 12 inch woofer in a cabinet that is easy to integrate into any project. Large ports insure that this forceful bass is never marred by any chuffing or fluttering noises.
Designed in Power & Flexibility
Sixteen, M10 Universal Mounting Points allow the SX/SA112 to be flown using M10 eyebolts, while the recessed handles top-mounted pole adapter and available casters make portable use easy and practical.
The optional SA2000 power amplifier precisely matches the power needs of the SA112, provides optimal damping of the woofer and has factory optimized, multi-band limiting. The built-in amp eliminates the need for additional rack space and speaker cable runs, making adding a subwoofer to existing installs as simple as plugging it into power and running a signal to it.
Controlled via RHAON II, the SA2000’s built-in DSP has eight, fully parametric EQ filters, high and low shelf and high and low pass filters and up to 340 ms. of delay. All easily accessed via a Windows computer running RHAON II.
The SA112-RD1 and SA112-RD add Dante digital signal distribution capability including AES67 compatibility and network redundancy (RD Model.).
Specs
Technical Data |
||
| Frequency Response: | SX112 SA112-RN SA112-RD |
45 Hz to 110 Hz (-3 dB)
37 Hz to 130 Hz (-10 dB) |
| Sensitivity: | SX112 | 92 dB (1 W @ 1 m, Half-space) |
| SA112-RN SA112-RD |
1.4 volt for rated output, analog | |
| Maximum Peak SPL: | SX112 SA112-RN SA112-RD |
126 dB (Half-space) |
| Connections: | SX112 | 2 x Neutrik Speakon NL4 in parallel with terminal strip |
| SA112-RN SA112-RD |
See SA2000 amplifier specifications | |
| Transducers: | SX112 SA112-RN SA112-RD |
Woofer: SSL12-11 |
| Crossover Frequency: | SX112 | 120 Hz or lower recommended |
| SA112-RN SA112-RD |
100 Hz. Active | |
| Enclosure: | SX112 SA112-RN SA112-RD |
3/4 in./19 mm Lite Ply plywood |
| Grille: | SX112 SA112-RN SA112-RD |
16 GA powder coated, plated steel |
| Finish: | SX112 SA112-RN SA112-RD |
Black (RAL9010) or White (RAL9011) paint, standard. Custom colors optional. |
| Mounting: | SX112 SA112-RN SA112-RD |
16 x M10 UMH points; M20 pole mount. |
| Weight: | SX112 SA112-RN SA112-RD |
55 lbs / 25 kg |
| Dimensions: | SX112 SA112-RN SA112-RD |
19-1/4 in. / 489 mm wide 17-1/2 in. / 445 mm high 20 in. / 508 mm deep |
SA2000 Amplifier Specifications |
||
| Audio Connections: | SA112-RN | 2 x XLR-3, In & Loop-out, Analog and AES |
| SA112-RD | 2 x XLR-3, In & Loop-out, Analog and AES 2 x RJ45 Dante Primary & Secondary Ethernet |
|
| Maximum Input Level: | SA112-RN SA112-RD |
+22 dBu, Analog, 0 dBFS digital |
| Network Connections: | SA112-RN | 2 x RJ45, Looping Ethernet/RHAON |
| SA112-RD | 2 x RJ45 Dante Primary & Secondary Ethernet/RHAON (Note: Dante and RHAON share a single or redundant Ethernet network.) | |
| User DSP: | SA112-RN SA112-RD |
Eight fully parametric filters, high and low shelf, high and low pass filters, delay to 340 ms. |
| Software: | SA112-RN SA112-RD |
RHAON II |
| Latency: | SA112-RN | 6.25 ms |
| SA112-RD | 6.25 ms + Dante transport latency | |
| Power Output: | SA112-RN SA112-RD |
2000 watts @ 8 ohms |
| Mains Voltage: | SA112-RN SA112-RD |
100-240 volts, 50/60 Hz auto-switching |
| Power Consumption: | SA112-RN SA112-RD |
Idle: 200 mW. 1/8 power: 480 W (onset of limiting) 1/3 power: 1200 W (hard limiting) |
| Power Connector: | SA112-RN SA112-RD |
Neutrik powerCON TRUE-1 |
| Temprature Limits: | SA112-RN SA112-RD |
Max.: 140º F/60º C, with no direct sun exposure; Min.: -22º F/-30º C; leave unit on to keep interior warm below 32º F/0º C. |
