Product Overview

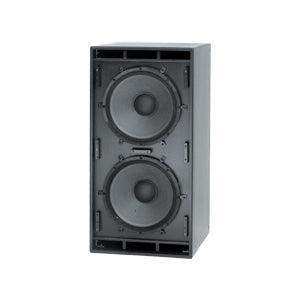

The Renkus-Heinz DR18-2B-RN is a self-powered dual 18-inch subwoofer with an integrated SA2000-RN amplifier module, built for networked commercial AV systems that need deep, controlled low frequency. This powered 18-inch subwoofer combines high-excursion direct-radiating woofers with RHAON II network control and onboard DSP, accepting analog or AES/EBU input. It is a strong fit for houses of worship, auditoriums, and multi-purpose rooms where centralized monitoring, processing, and amplification at the cabinet simplify the system design.
Product Description
The DR18-2B-RN uses two RH model SSL18-7 18-inch cone woofers in a heavily braced 13-ply hardwood enclosure, driven by an integrated Renkus-Heinz SA2000 amplifier module. The SA2000 can be configured for a single channel of 2000 W into 4 ohms, ideal for the cabinet's dual-woofer load. Native DSP provides delay, equalization, and nine preset memories, while RHAON II delivers Ethernet-based control, monitoring, and loudspeaker management across the system. Inputs include analog and AES/EBU, and the proprietary Amplifier Mute engages during program pauses. Frequency response spans 32 Hz to 120 Hz for natural, uncolored sub-bass. The cabinet is offered in black, white, natural, custom-color, and weather-resistant finishes with handles, casters, and Metric M10 mounting hardware.
Key Features
- Integrated SA2000 Amplifier — Onboard amplification configurable for a single channel of 2000 W into 4 ohms drives the dual-18 load without external amps.
- RHAON II Network Control — Ethernet-based control, monitoring, and loudspeaker management integrate the sub into networked AV systems.
- Native DSP — Onboard delay, equalization, and nine preset memories tailor performance to the room.
- Dual 18-Inch Woofers — Two SSL18-7 long-throw woofers deliver high-impact sub-bass with linear excursion.
- Analog and AES/EBU Inputs — Flexible input options suit both analog and digital signal distribution.
- Amplifier Mute — Proprietary muting engages during program pauses to keep the system quiet between cues.
- Deep Extension — Frequency response from 32 Hz to 120 Hz for natural low-frequency support.
- Finish Options — Black, white, natural, custom color, and weather-resistant versions available.
Typical Applications
- House of worship
- Auditorium
- Multi-purpose room
Technical Specifications
| Configuration | Self-powered dual 18-inch direct-radiating subwoofer |
| Amplifier Module | SA2000-RN, configurable for single channel 2000 W into 4 ohms |
| LF Drivers | Dual model SSL18-7, 18-inch cone woofer |
| Frequency Response | 32 Hz to 120 Hz |
| Inputs | Analog and AES/EBU |
| Control | RHAON II over Ethernet; native DSP with delay, EQ, 9 preset memories |
| Enclosure | 13-ply hardwood, heavily braced; perforated metal grille |
| Finish | Black, white, natural, custom color, weather-resistant |
| Dimensions | 24 in. H x 48 in. W x 24 in. D (61 x 121.9 x 61 cm) |
Frequently Asked Questions
What is the difference between the RN and RD versions?
The RN model uses the SA2000-RN amplifier with analog and AES/EBU inputs and RHAON II network control. The RD model adds dual-redundant Dante audio networking on the SA2000-RD module for mission-critical installations.
Does it require an external amplifier?
No. The DR18-2B-RN is self-powered with an integrated SA2000 amplifier module. For an externally amplified option, the non-powered DRS18-2B offers the same acoustic platform.
How is it configured and monitored?
RHAON II software provides Ethernet-based control, DSP configuration, and system health monitoring. Onboard DSP includes delay, equalization, and nine preset memories.
Can it be deployed outdoors?
A weather-resistant version (DR18-2B-RN-WR) is available for covered outdoor and high-humidity environments.
What warranty and support are available?
Warranty terms vary by configuration. Contact Creation Networks for current Renkus-Heinz warranty details and system support.
Explore the full Renkus-Heinz collection at Creation Networks, including the Dante-redundant DR18-2B-RD.
